Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistors | Under right side of dash, attached to blower motor case. |
| Cooling Fan Test Connector (without A/C, with M/T & EFI) | Near ignition coil. |
| Cruise Control Amplifier | Under left side of dash, under steering column. |
| Cruise Control Servo | On left front strut tower. |
| Ignition Coil | On left fender apron. See Figure . |

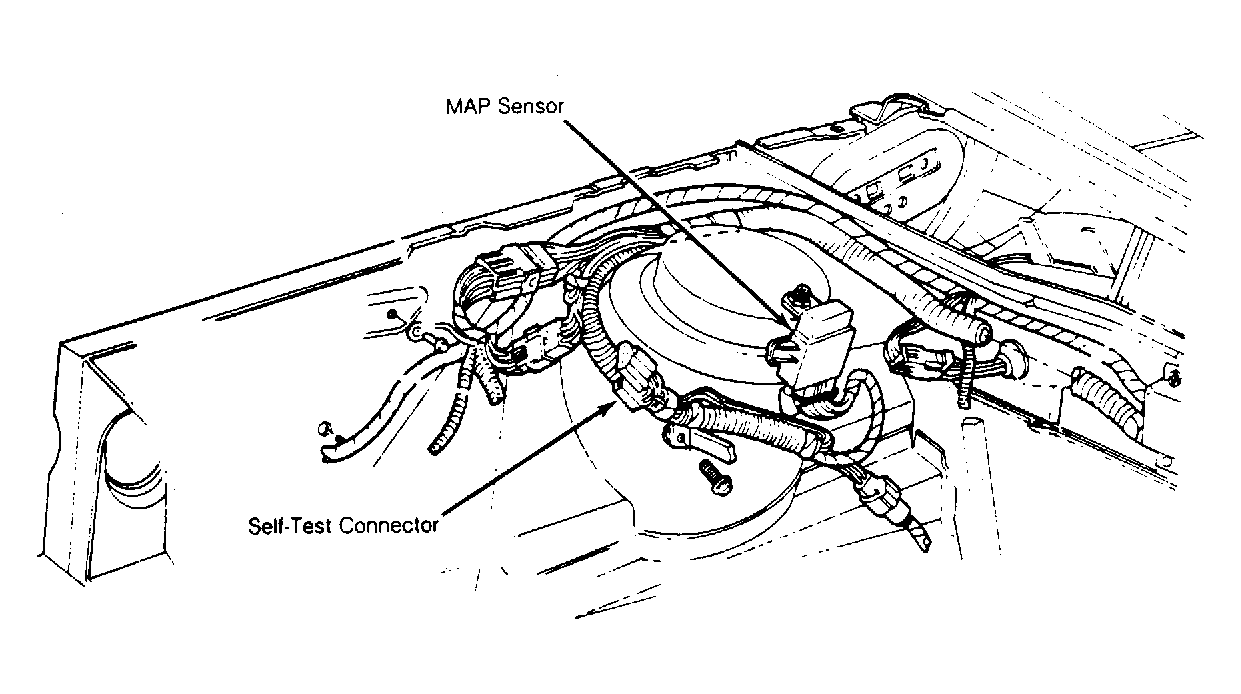

| Self-Test Connector (EFI) | On right inner fender panel, in front of strut tower. See Figure |
| Shorting Plug (CFI) | On top of transaxle, below distributor. See Figure . |
| Starter Diode | On right fender apron. |
| Wiper Interval Governor | Attached to center dash support brace. |
