Programmable Seat Switch Test

With "1" button pressed, there should be continuity between terminals No. 1 and 2. With "2" button pressed, there should be continuity between terminals No. 1 and 3. With SET button pressed, there should be continuity between terminals No. 1 and 4.
To test LED, ground terminal No. 5 and connect terminal No. 6 to battery positive. LED should glow. See Fig 1 .

NOTE: Testing for all other types of switches is detailed in Figs. Fig 2 , Fig 3 , and Fig 4 . If switch fails any test, replace switch.

Fig 1: Programmable Seat Switch & Connector

Courtesy of FORD MOTOR CO.

Fig 2: Terminal Identification & Switch Test For Arm Rest Mounted Switches Use A Self-Powered Test Light Or Ohmmeter

Courtesy of FORD MOTOR CO.

Fig 3: Terminal Identification & Switch Test for Seat Mounted Switch

Courtesy of FORD MOTOR CO.

Fig 4: Terminal Identification & Switch Test for Sable & Taurus

Courtesy of FORD MOTOR CO.

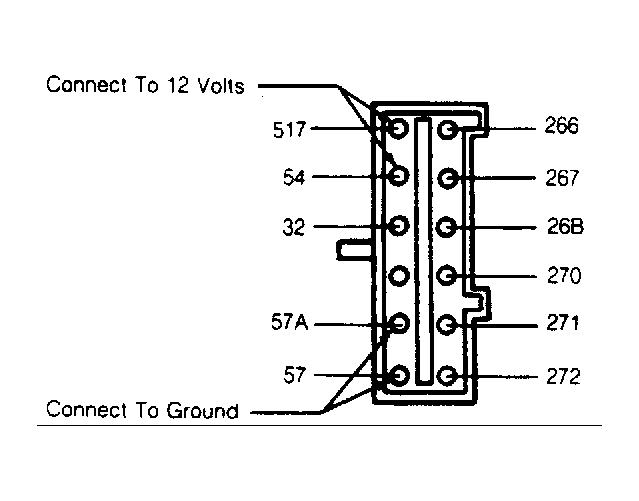

Fig 5: Seat Regulator Control Processor Assembly Connector

Courtesy of FORD MOTOR CO.

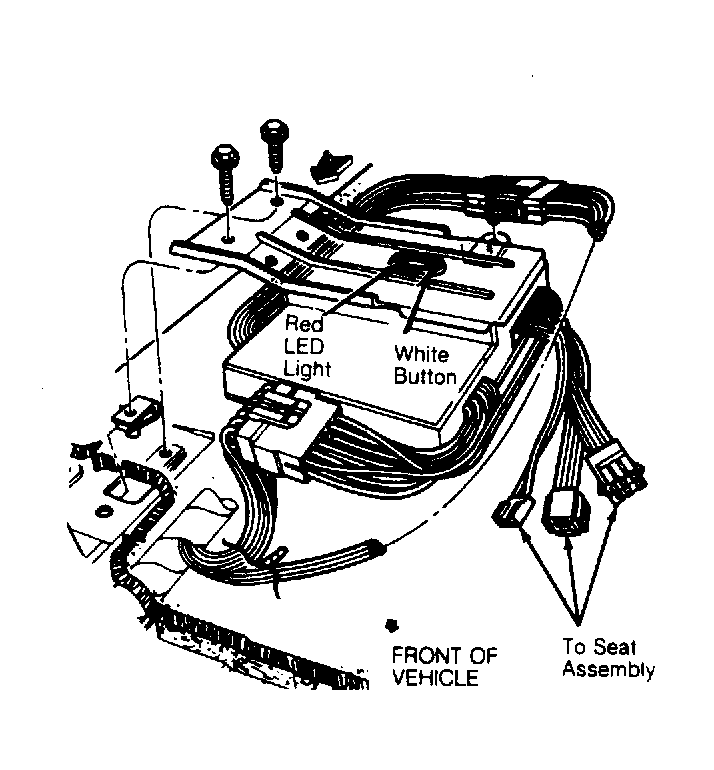

Fig 6: Seat Regulator Control Processor Assembly

Courtesy of FORD MOTOR CO.
