Service Indicator & Warning Lights: Notes

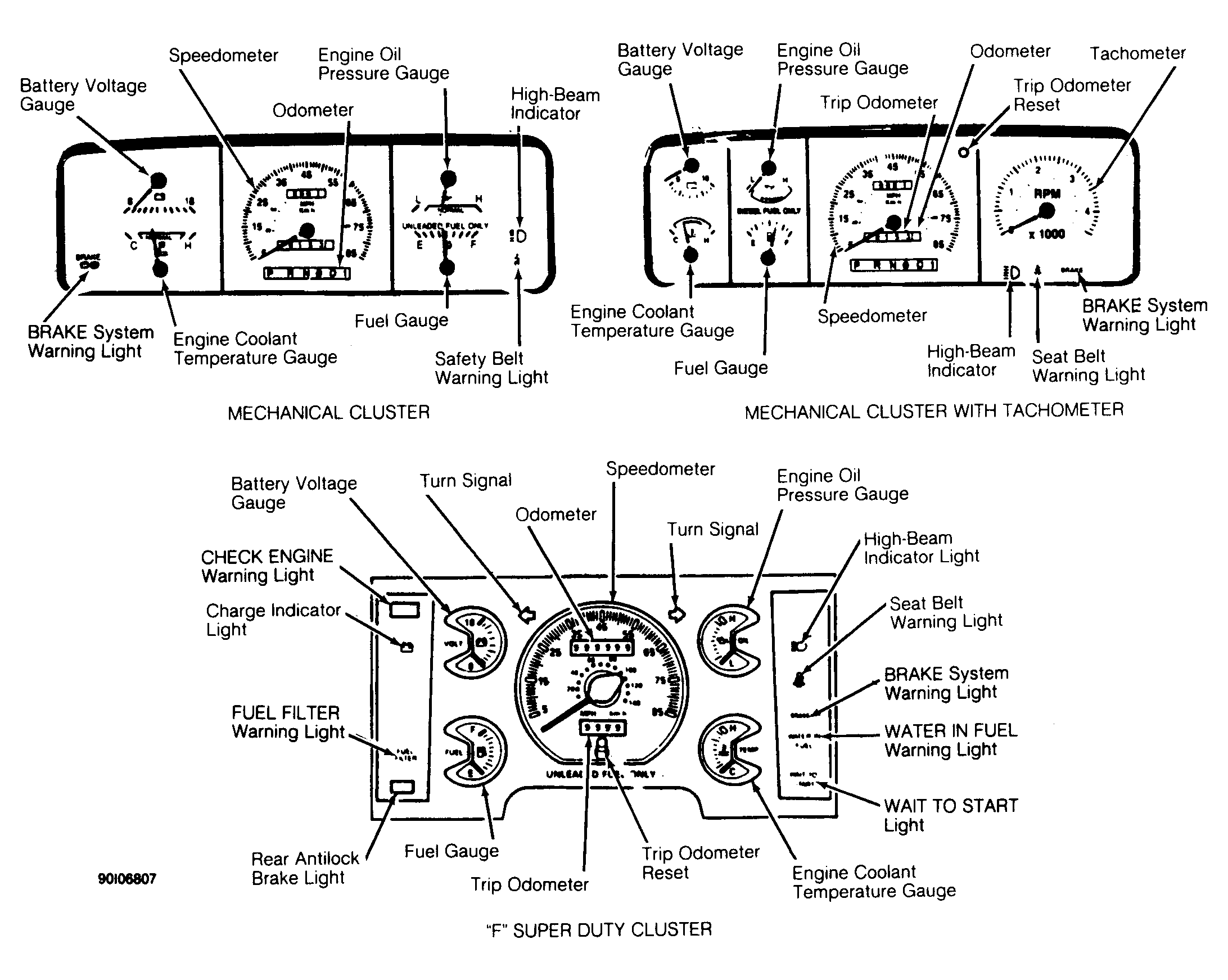

Fig 1: Dash Gauges & Warning Lights (1987-91)
G90I06807Courtesy of FORD MOTOR CO.

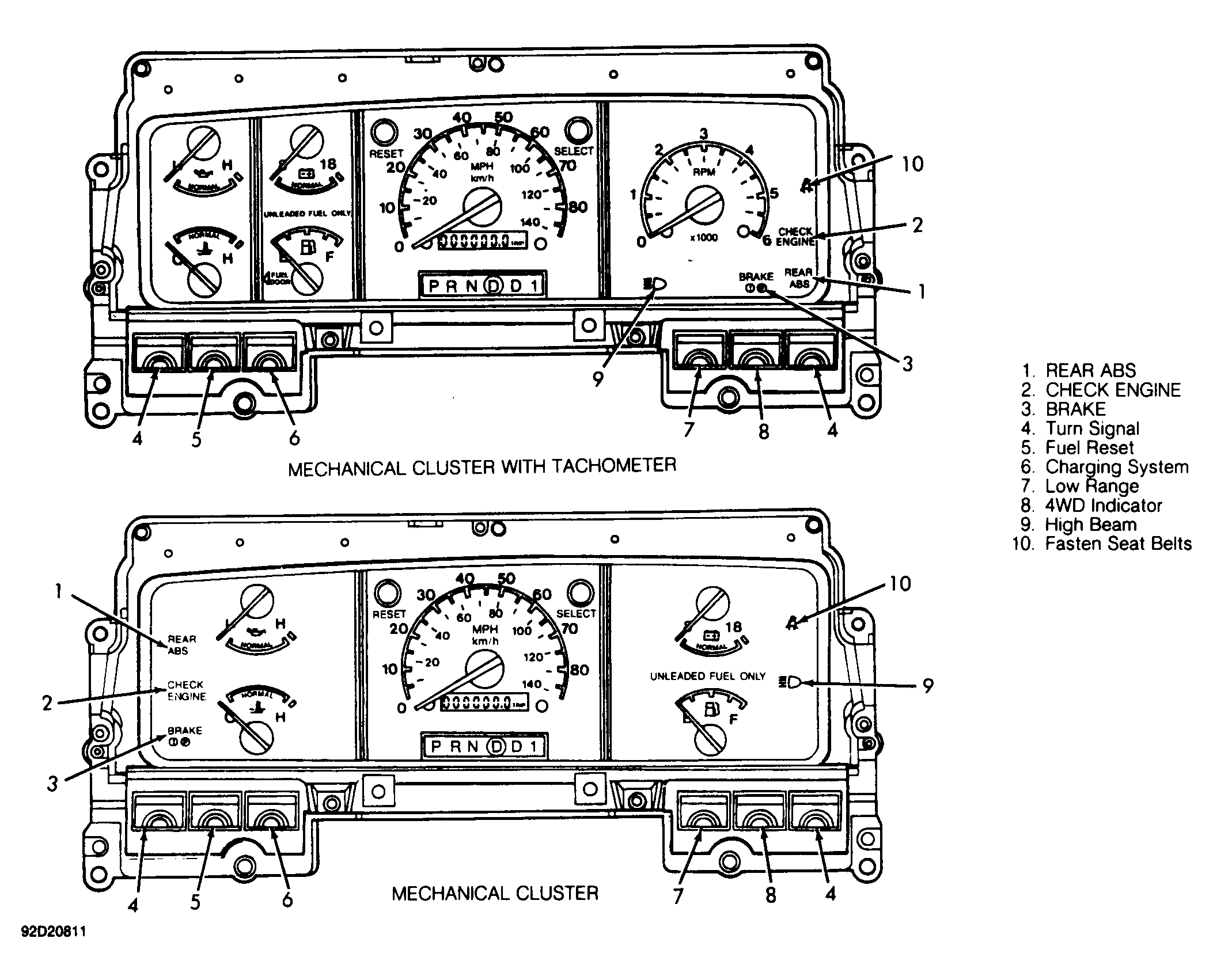

Fig 2: Dash Gauges & Warning Lights (1992)
G92D20811Courtesy of FORD MOTOR CO.
