Service Code Definitions

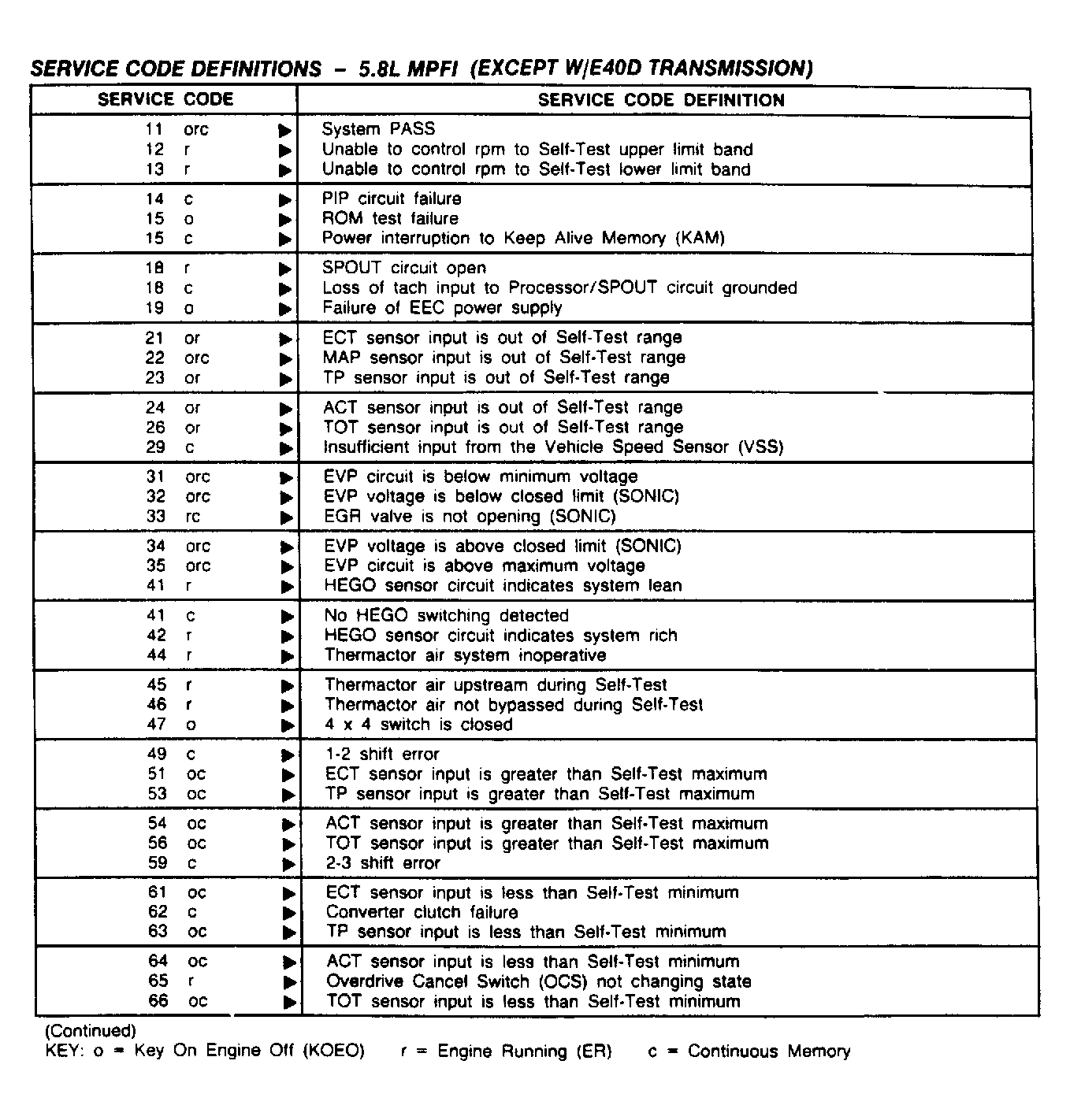

Fig 1: 5.8L (Except With E4OD) Service Code Definitions

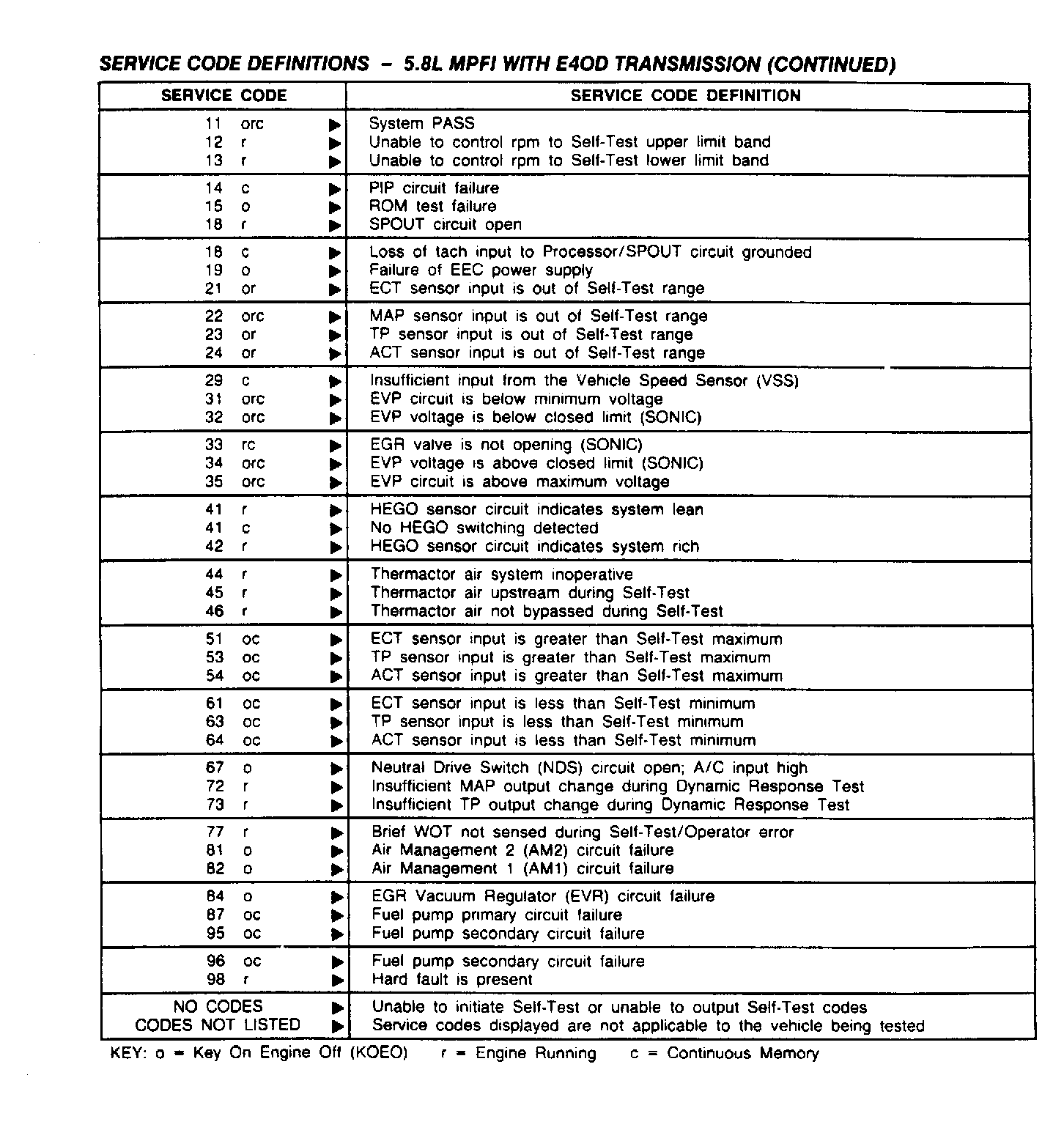

Fig 2: 5.8L (With E4OD) Service Code Definitions (1 of 2)

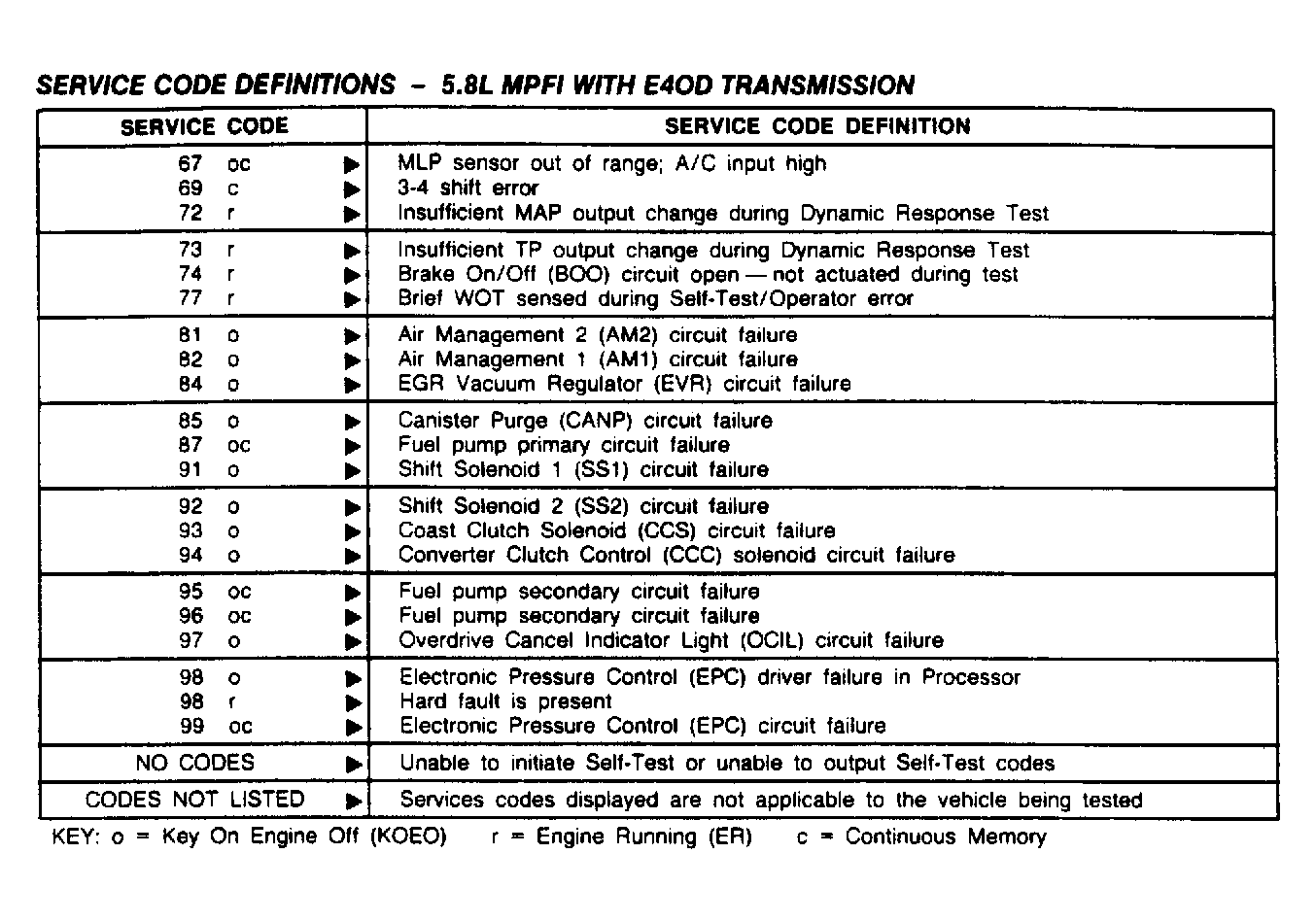

Fig 3: 5.8L (With E4OD) Service Code Definitions (2 of 2)

NOTE: The following tests, circuits and illustrations are supplied courtesy of Ford Motor Co.

NOTE: CIRCUIT TESTS are grouped in the following categories.
