Float Level

Invert air horn assembly. Measure distance between air horn gasket and top edge of float. If distance is not to specification, adjust by bending tab on float hinge. See CARBURETOR ADJUSTMENT SPECIFICATIONS  . See Fig 1 .

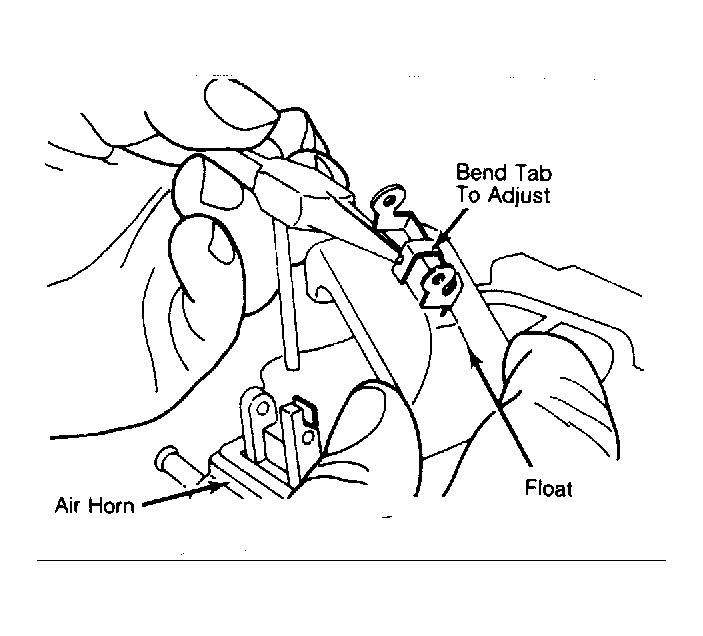

Fig 1: Adjusting Float Level

Courtesy of FORD MOTOR CO.
