Remove, Overhaul & Install: Remove/Install/Overhaul: Distributor

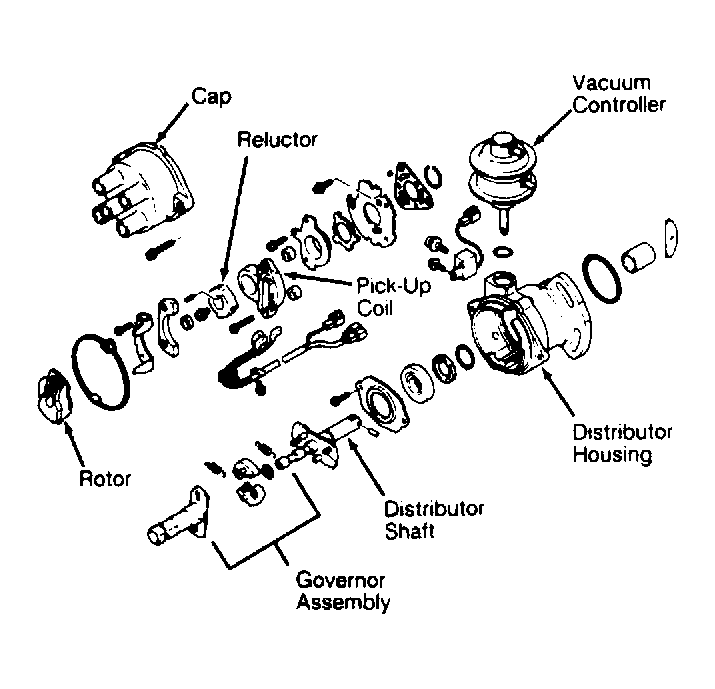

Fig 1: Exploded View of Ford Festiva Distributor
Courtesy of FORD MOTOR CO.
Fig 2: Exploded View of Ford Tracer Distributor
Courtesy of FORD MOTOR CO.
