Tests W/Codes - CARBURETED: Summary

If no hard fault codes are displayed, proceed to TESTS W/O CODES article diagnosis by symptom (i.e. ROUGH IDLE, NO START, etc.), or intermittent diagnosis procedures. Also see I - SYS/COMP TESTS article.

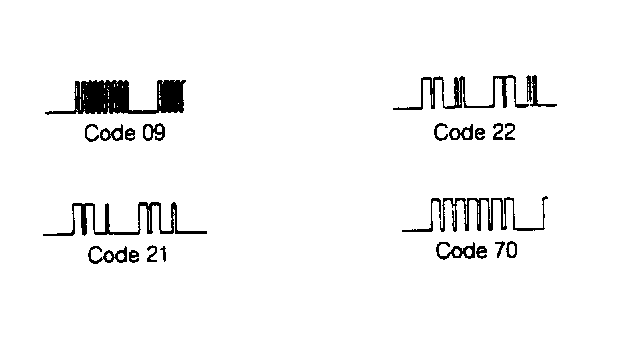

Fig 1: Analog Voltmeter Trouble Code Pulse Patterns

Courtesy of FORD MOTOR CO.
