Power Supply Test

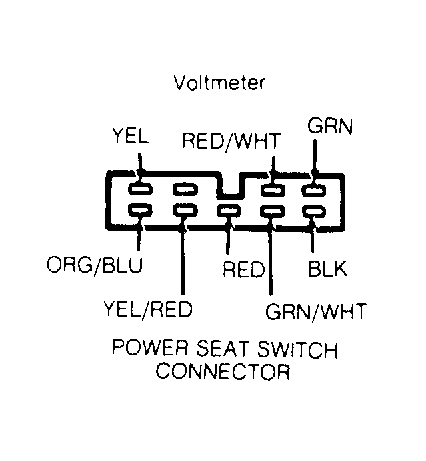

- Check for 12 volts at Black/White wire of power seat switch connector. See Fig 1 .
- If no voltage is present, check fuse No. 12. If fuse is okay, check continuity of Black/White wire between fuse panel and power seat switch.
- If voltage is present, check Blue wire between power seat connector and power seat switch.
