Barometric Pressure Sensor

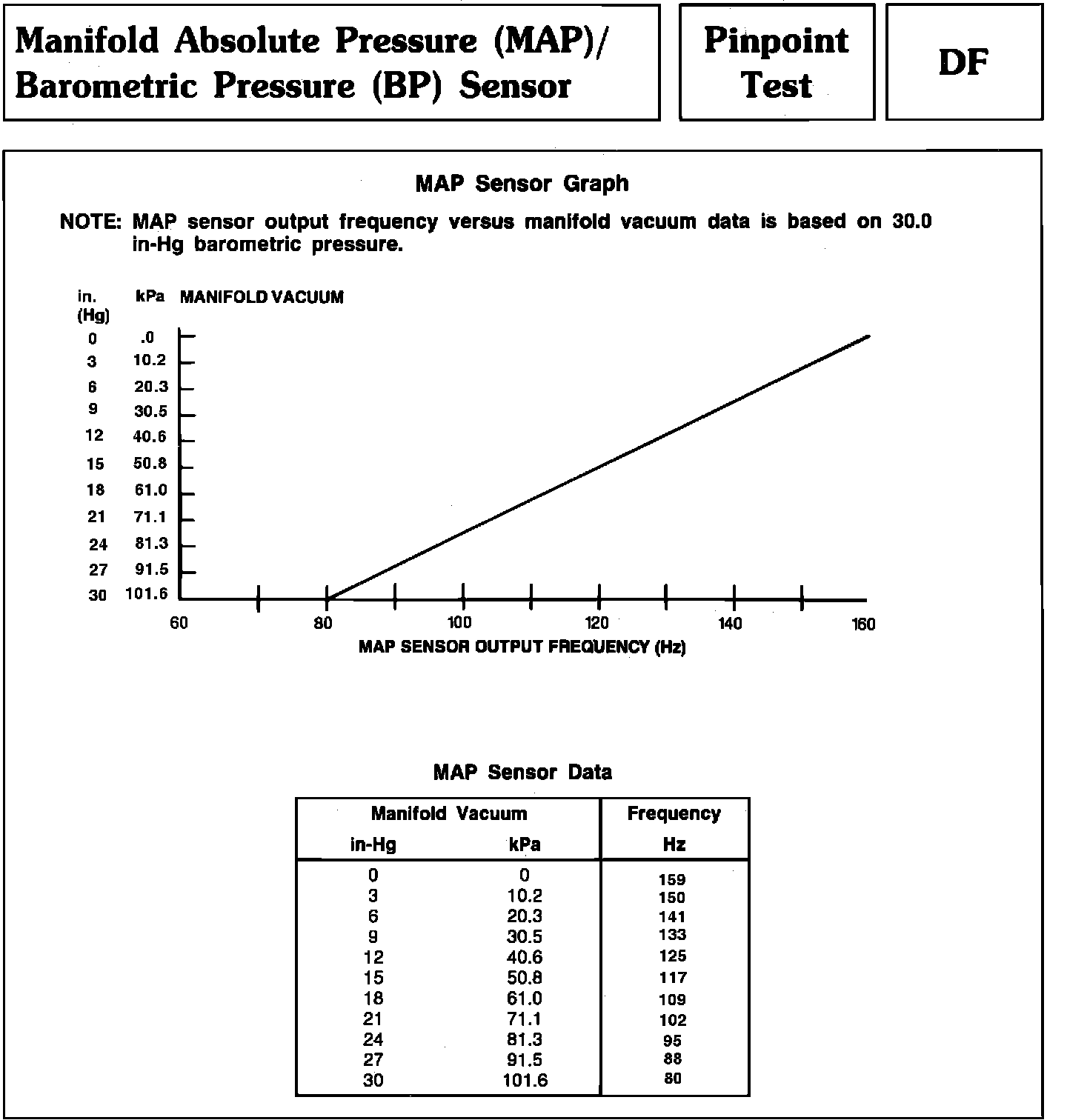

Pinpoint Test DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:



MANIFOLD ABSOLUTE AND BAROMETRIC PRESSURE SENSORS:
