Ignition Control Module: Locations

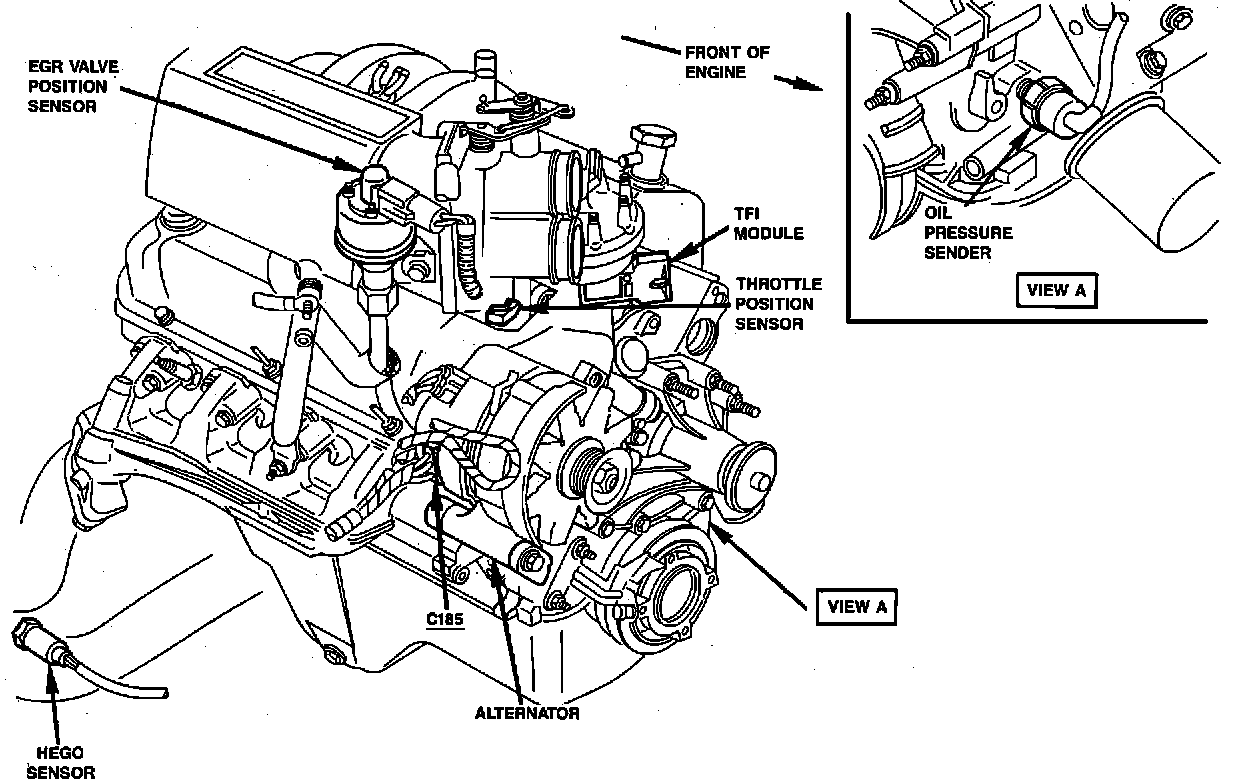

LH Side Of Engine.:

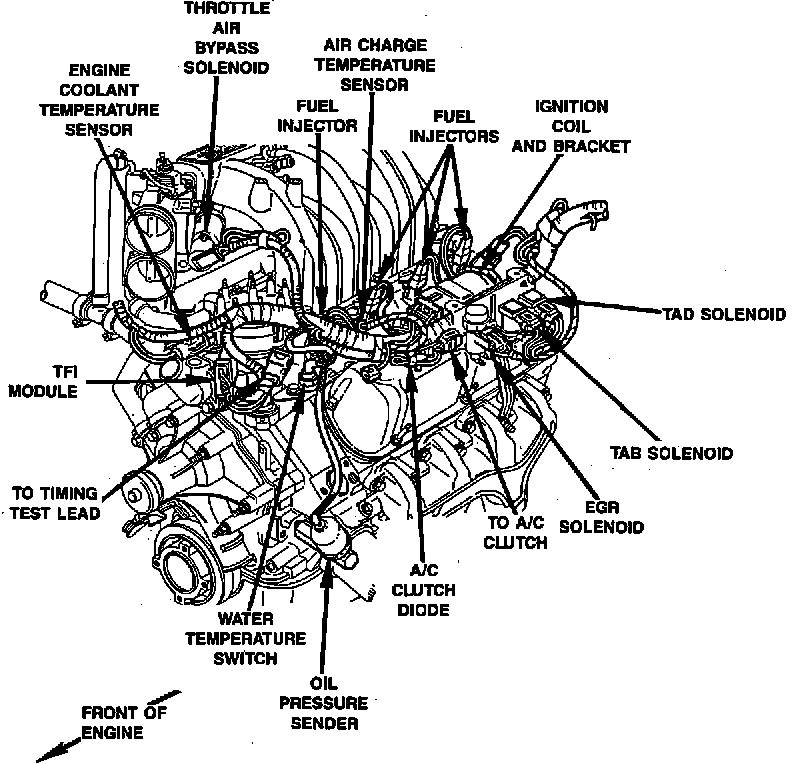

RH Side Of Engine.:




Top Front Of Engine

Applicable to: V8-302/5.0L & V8-351/5.8L Engines
