Power Steering Pump: Description

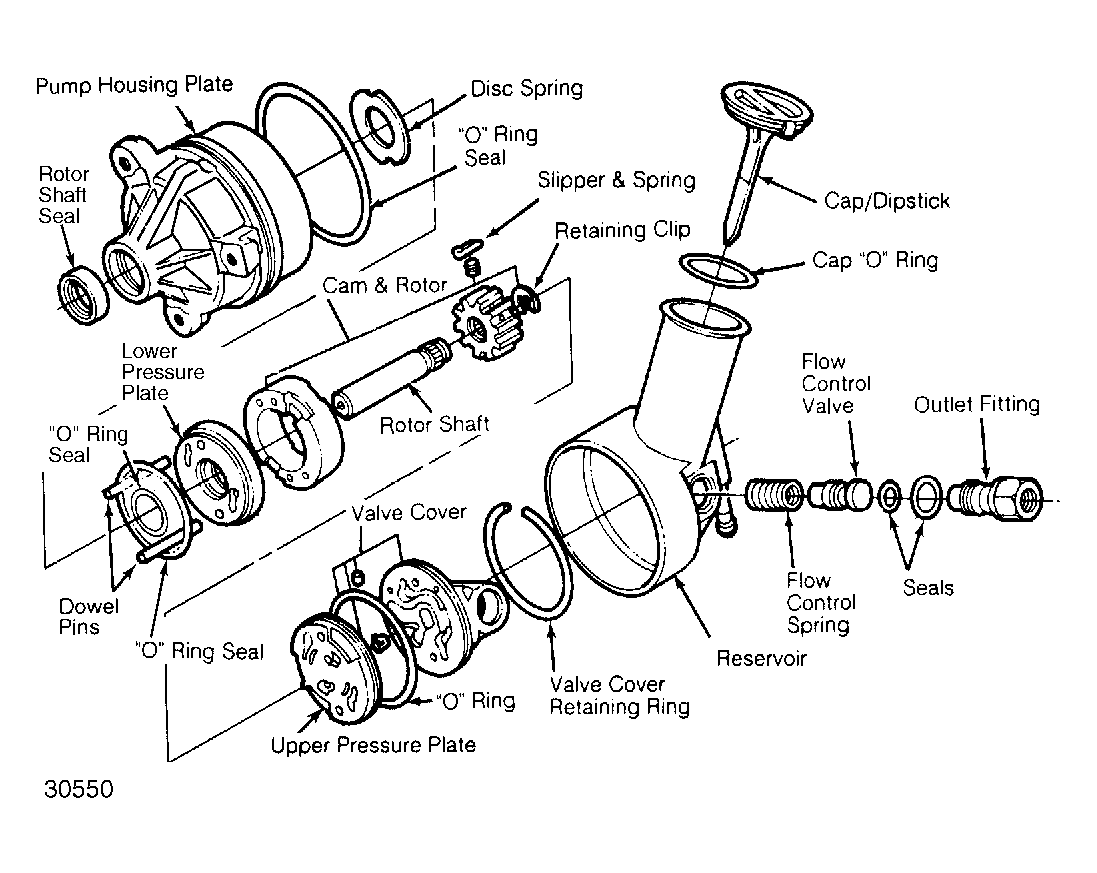

C-II power steering pump is a belt-driven, slipper-type integral pump with a fiberglass/nylon reservoir. Reservoir is attached to rear of pump housing plate. See Figure . Pump body is encased within housing and reservoir.

Hoses are attached with quick disconnect fittings, located below filler neck at outboard side of reservoir. An identification tag with basic model number is attached to reservoir.
