Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||

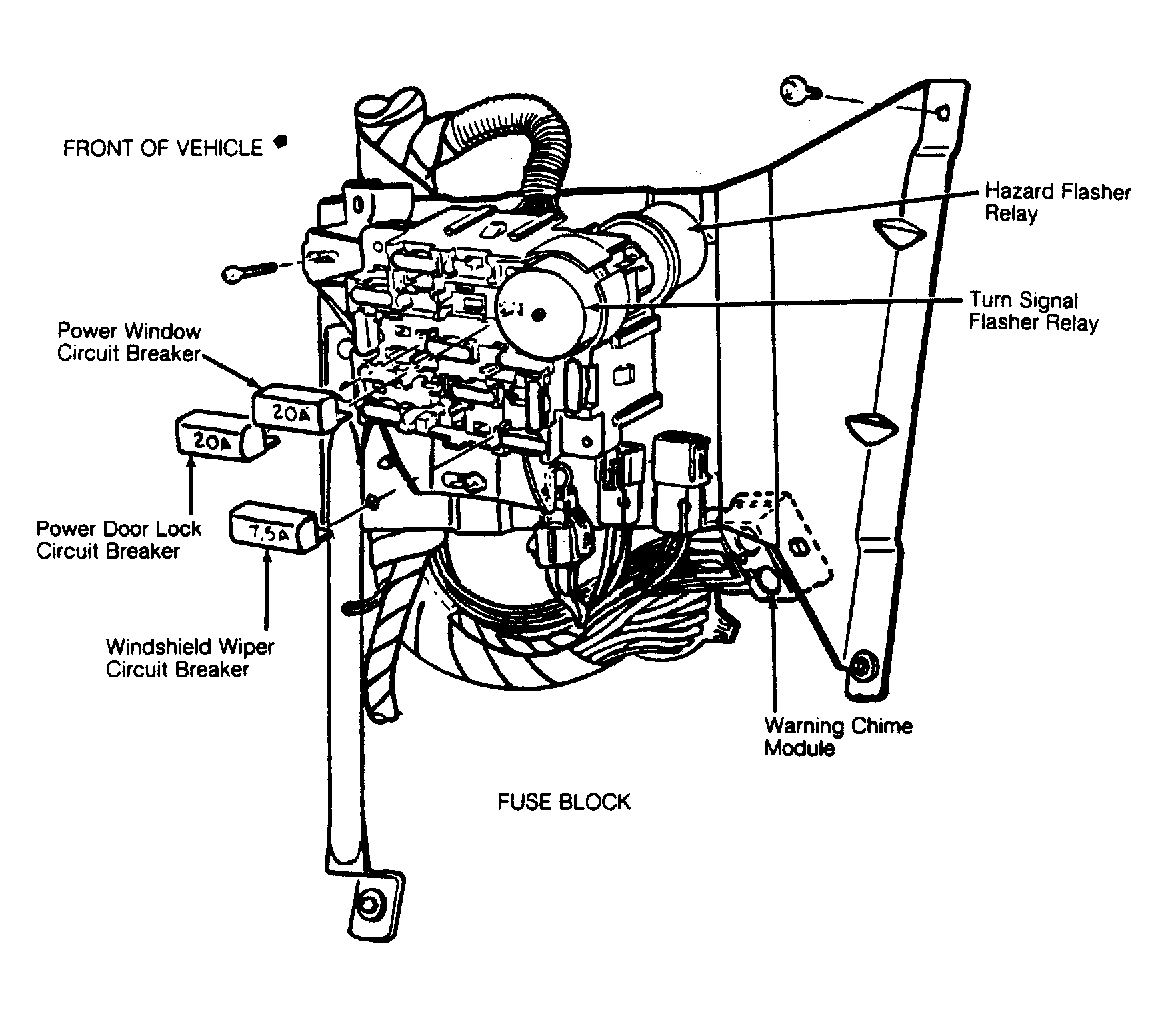

| Power Door Locks | In cavity No. 12 of fuse block. See Figure . | |
| Power Windows | In cavity No. 14 of fuse block. See Figure . | |
| Windshield Wiper | In cavity No. 2 of fuse block. See Figure . | |
| Fuse Block | Under dash, to left of steering column. See Figure . | |
| Fusible Links | ||

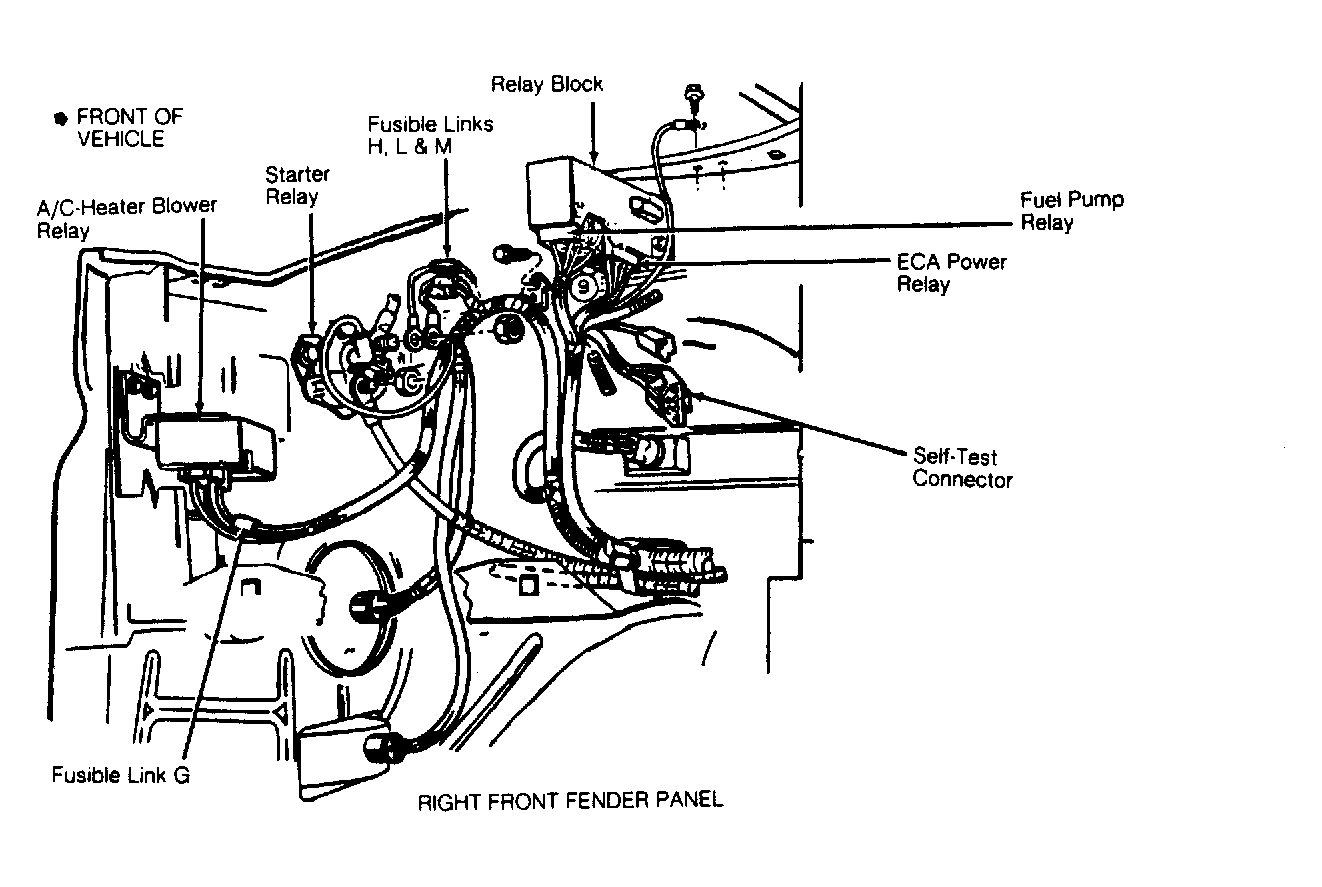

| A/C-Heater Blower Relay (Blue) G | On A/C-heater relay, near right headlight. See Figure . | |
| Alternator (Gray) F (1990) | At starter relay. | |
| Aux. Battery (Black) B | At starter relay. | |
| EEC Control Module (Blue) L (1990) | At starter relay. See Figure . | |
| Fuel Shut-Off Solenoid (Blue) S (Diesel) (1990) | On center of firewall. | |
| Glow Plug Control (Green) H & M | At starter relay. See Figure . | |
| TFI Ignition Module (Blue) S (Except Diesel) (1990) | On center of firewall. | |
| Trans. Control (Blue) L (Diesel) | At starter relay. See Figure . | |
