Control Module HVAC: Service and Repair

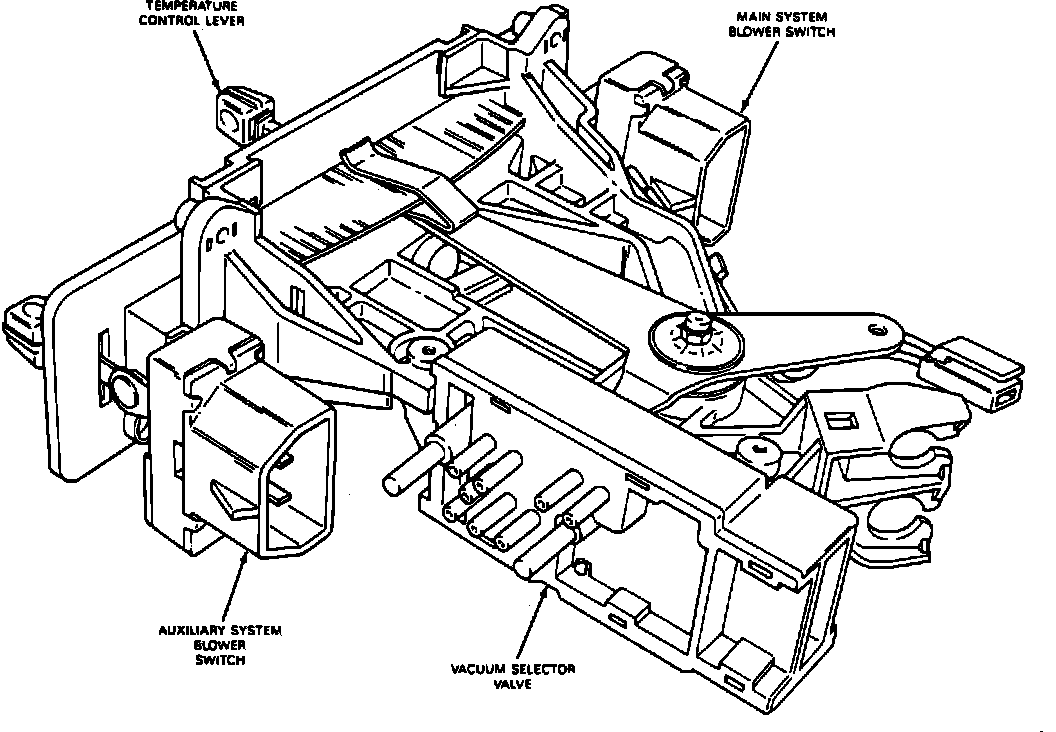

Fig. 7 Control assembly removal:

1. Remove instrument panel trim.
2. Remove screws retaining control assembly to mounting bracket, then carefully remove.
3. Disconnect control cables, wiring connectors and vacuum harness from control assembly, Fig. 7.
4. Reverse procedure to install.
