Computerized Engine Controls: Notes

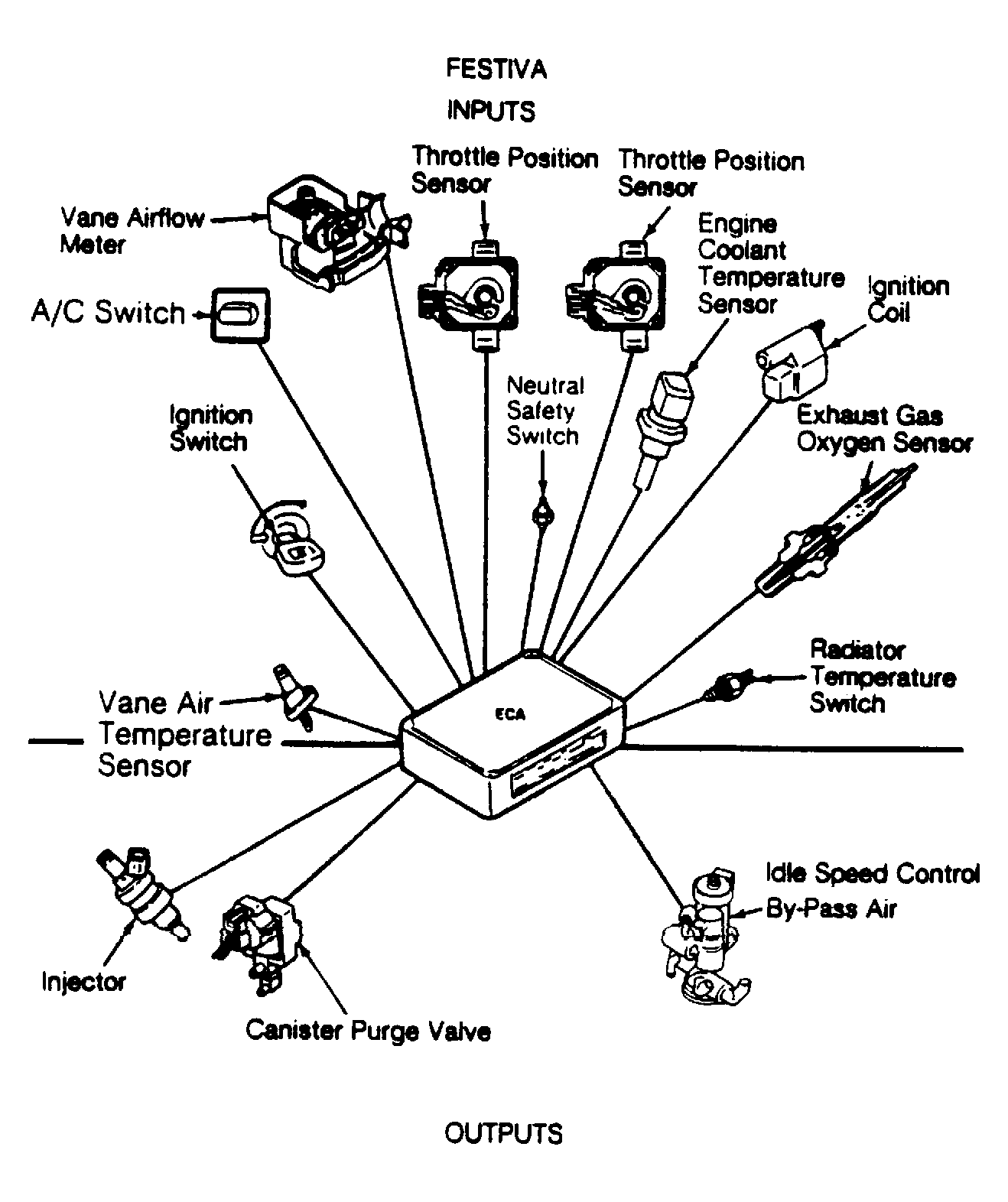

Fig 1: EFI CEC Diagrams (Festiva)
G120248Courtesy of FORD MOTOR CO.

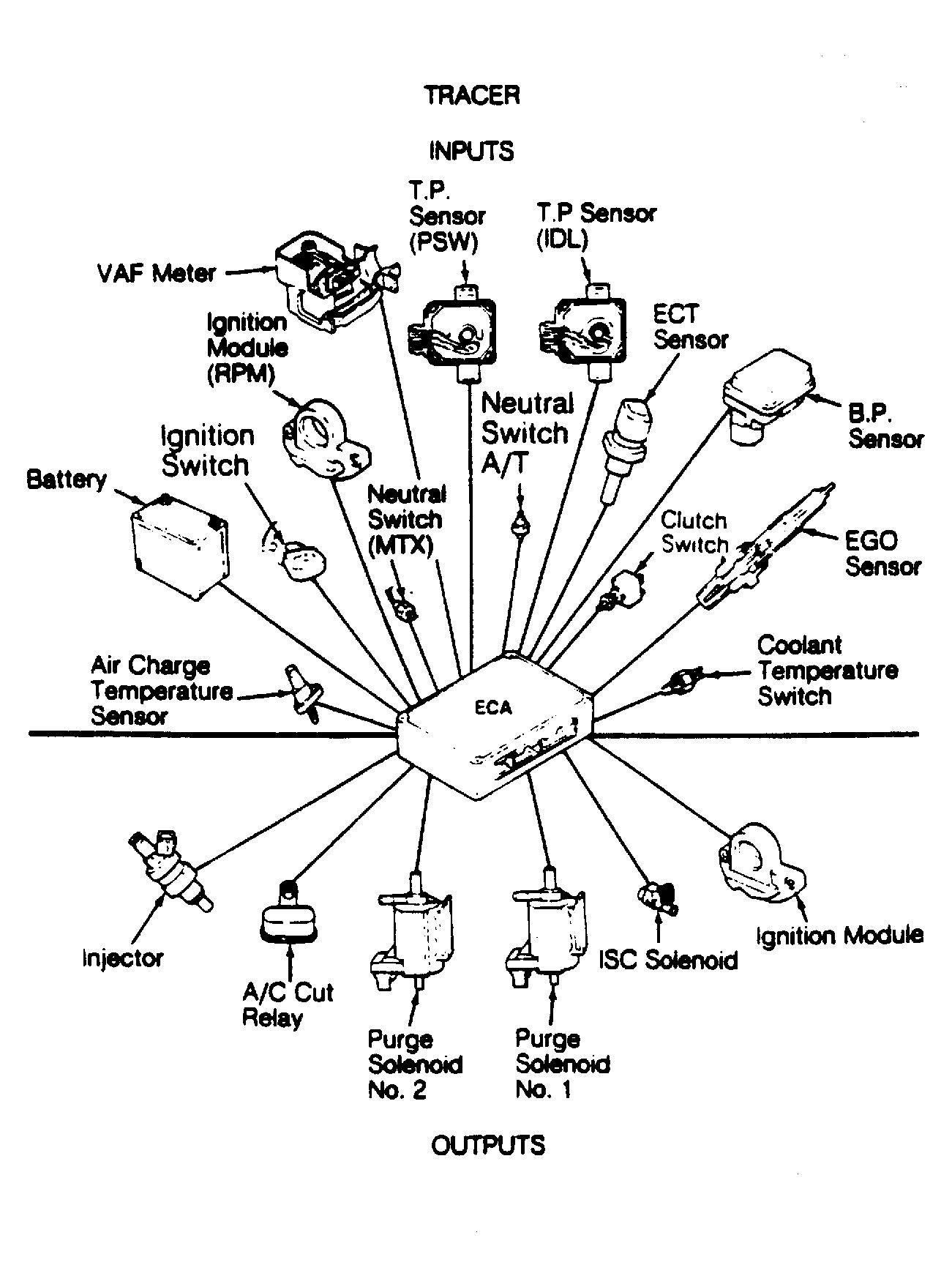

Fig 2: EFI CEC Diagrams (Tracer)
G120249Courtesy of FORD MOTOR CO.
