Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Normal Scan Data Values (Includes PID's)
>>
Diagnostic Reference Values
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

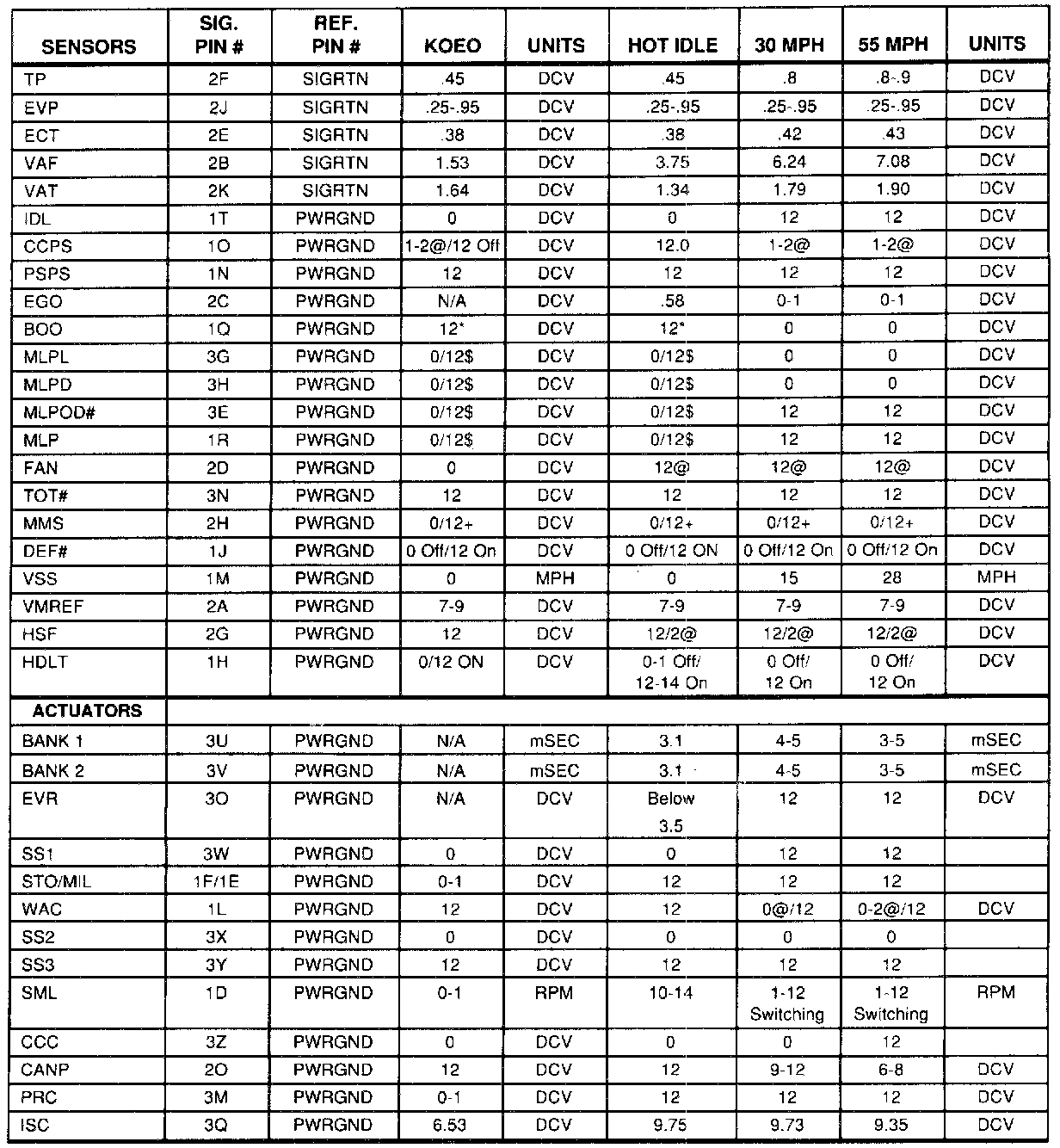

Diagnostic Reference Values
Diagnostic Reference Values:
