Headlamp Control Module: Locations

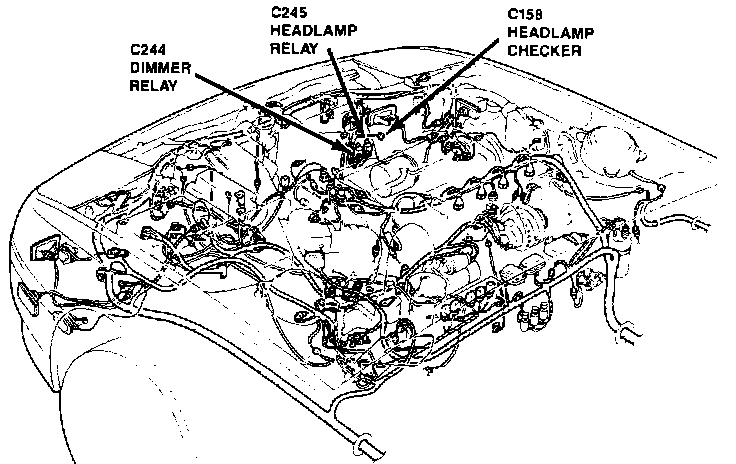

RH Front Of Engine Compartment:

Front RH Side Of Engine Compartment Near RH Headlamp
