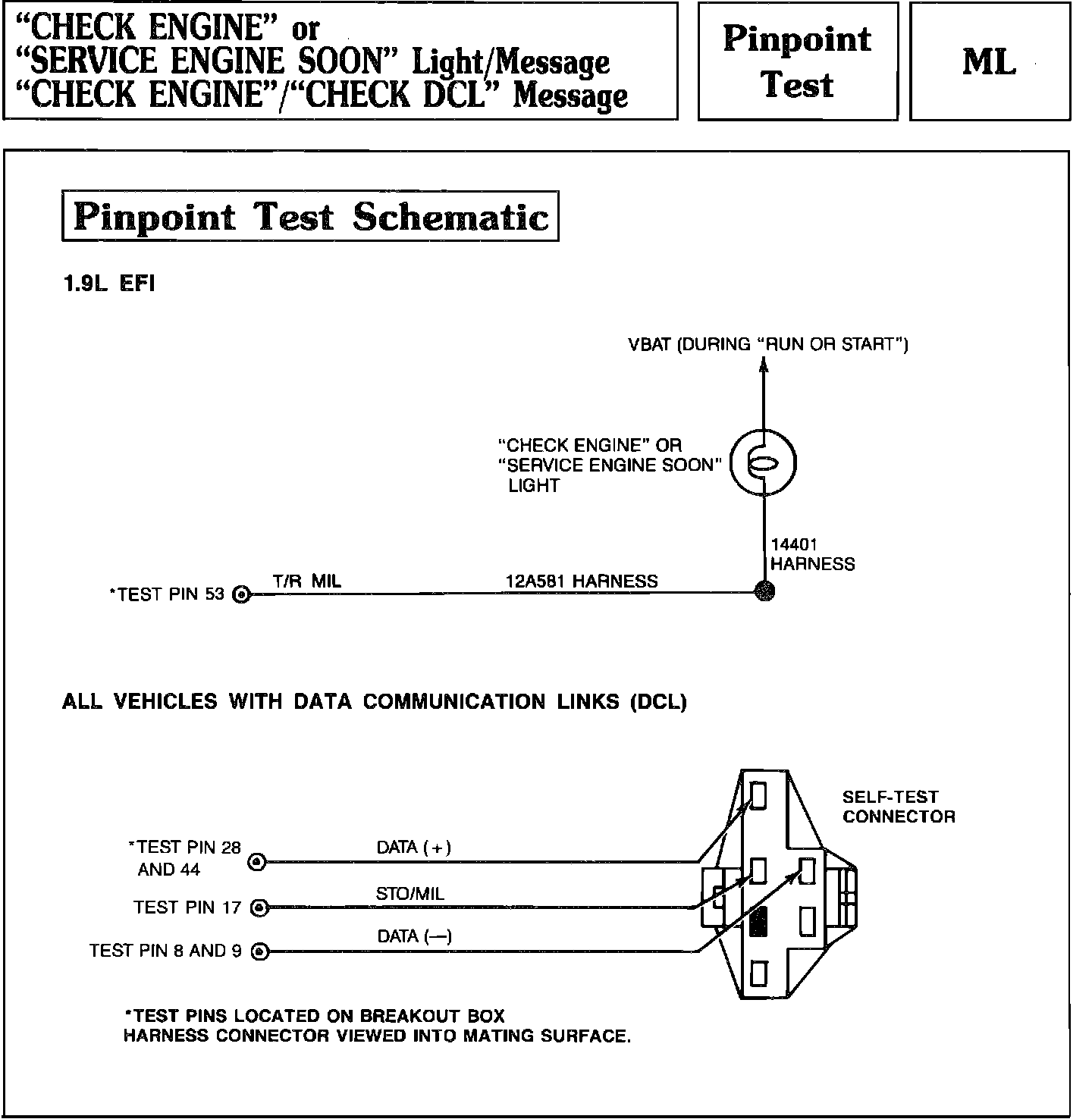

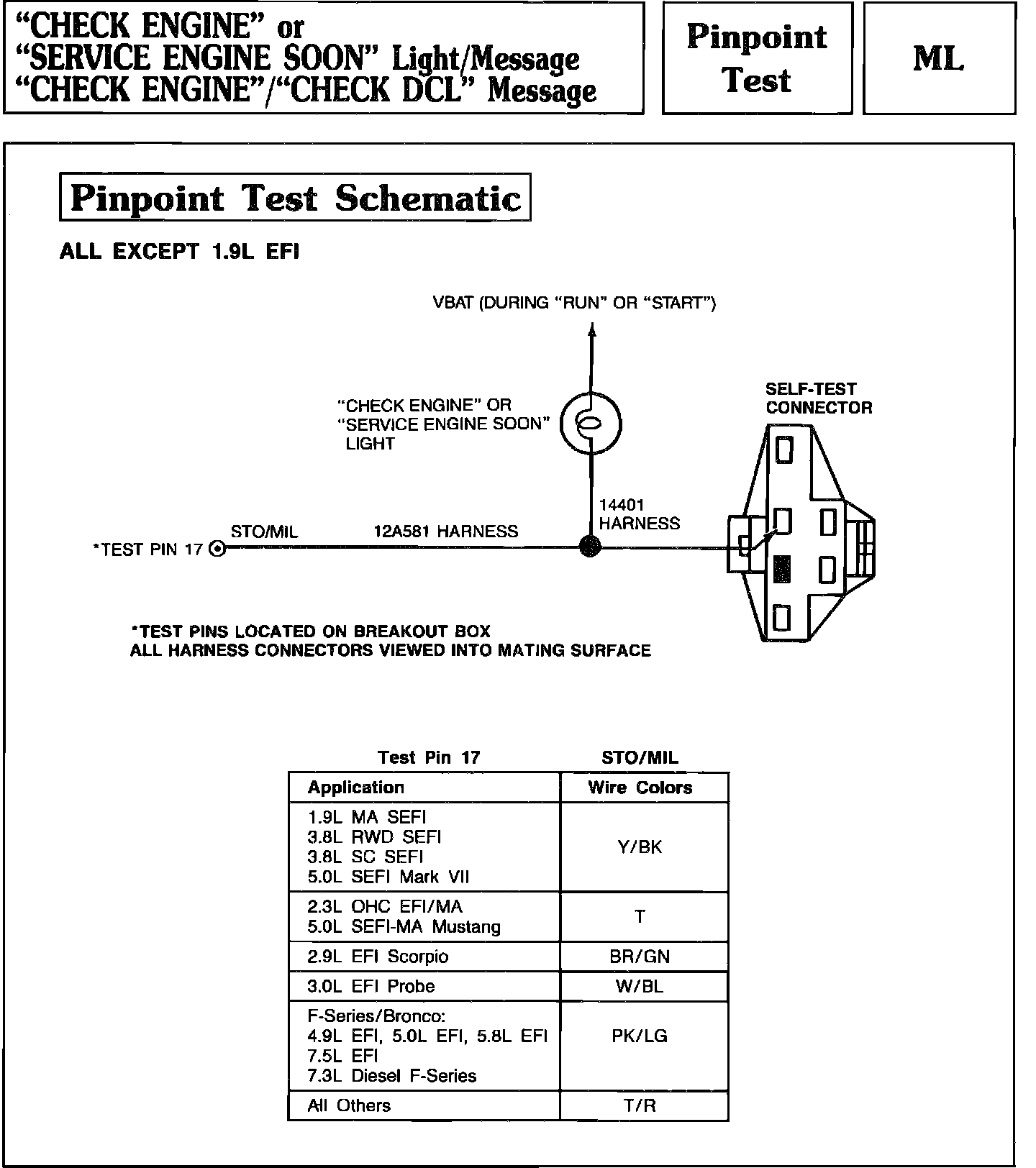

ML - Testing Schematic
Pinpoint Test ML - "CHECK ENGINE" Light/Message/"CHECK DCL" Message:
Pinpoint Test ML - "CHECK ENGINE" Light/Message/"CHECK DCL" Message:
