Integrated Relay Control Module Diagnosis - Revision
>>
Integrated Controller Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

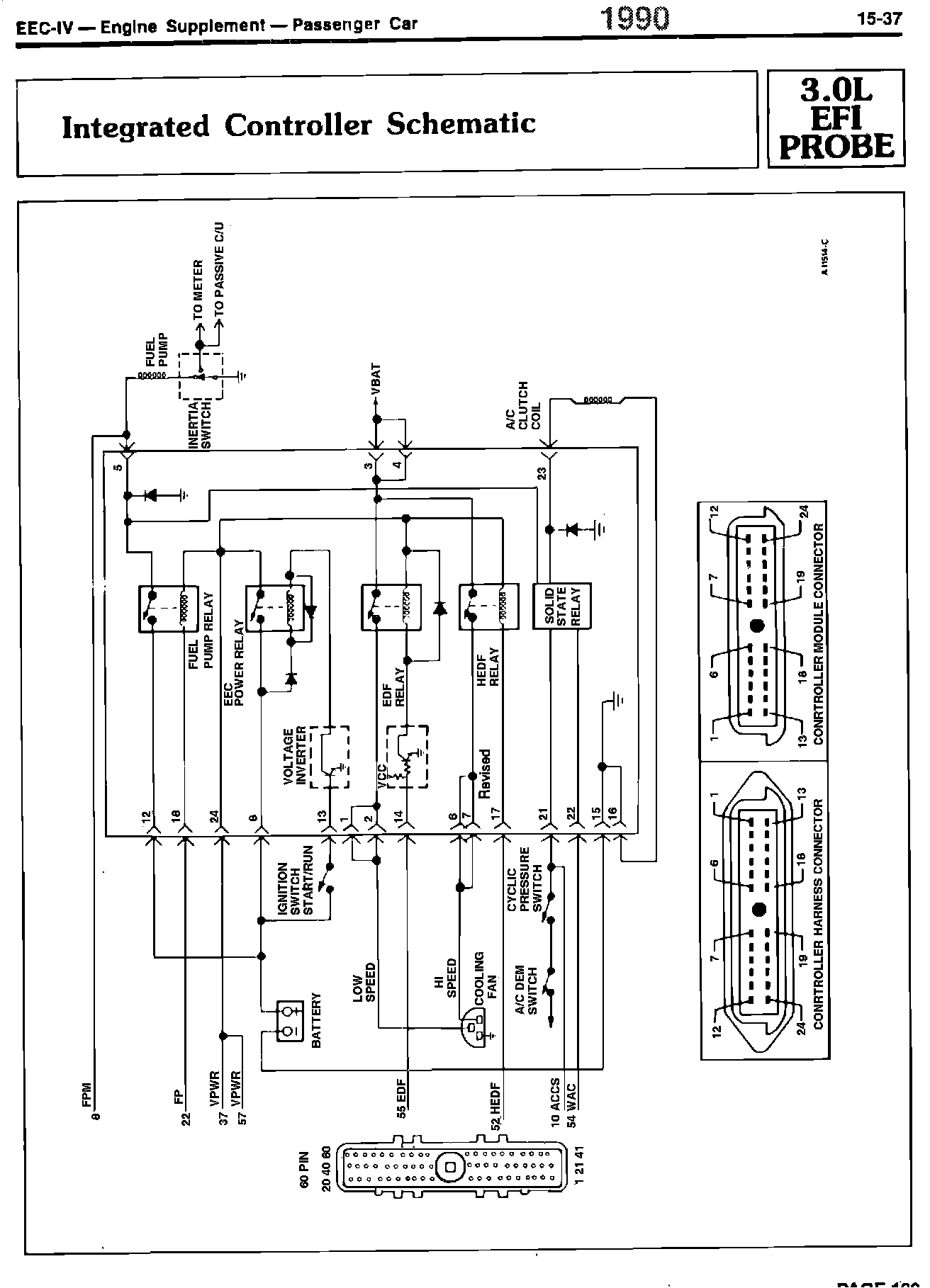

Integrated Controller Schematic
