Fuse Panel Chart - Revised

Article No.
91-11B-25

06/14/91

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1990 - PAGE 11-2 - FUSE PANEL CHART REVISED

^ SHOP MANUAL - 1990 - PAGE 34-50-3 - FUSE PANEL CHART REVISED

^ TAURUS/SABLE WIRING DIAGRAM - 1990 - LOCATION A-85/86 - FUSE PANEL CHART REVISED

FORD:
1990 TAURUS

LINCOLN-MERCURY:
1990 SABLE

ISSUE:
The Fuse Panel chart in the following publications contained incorrect information:

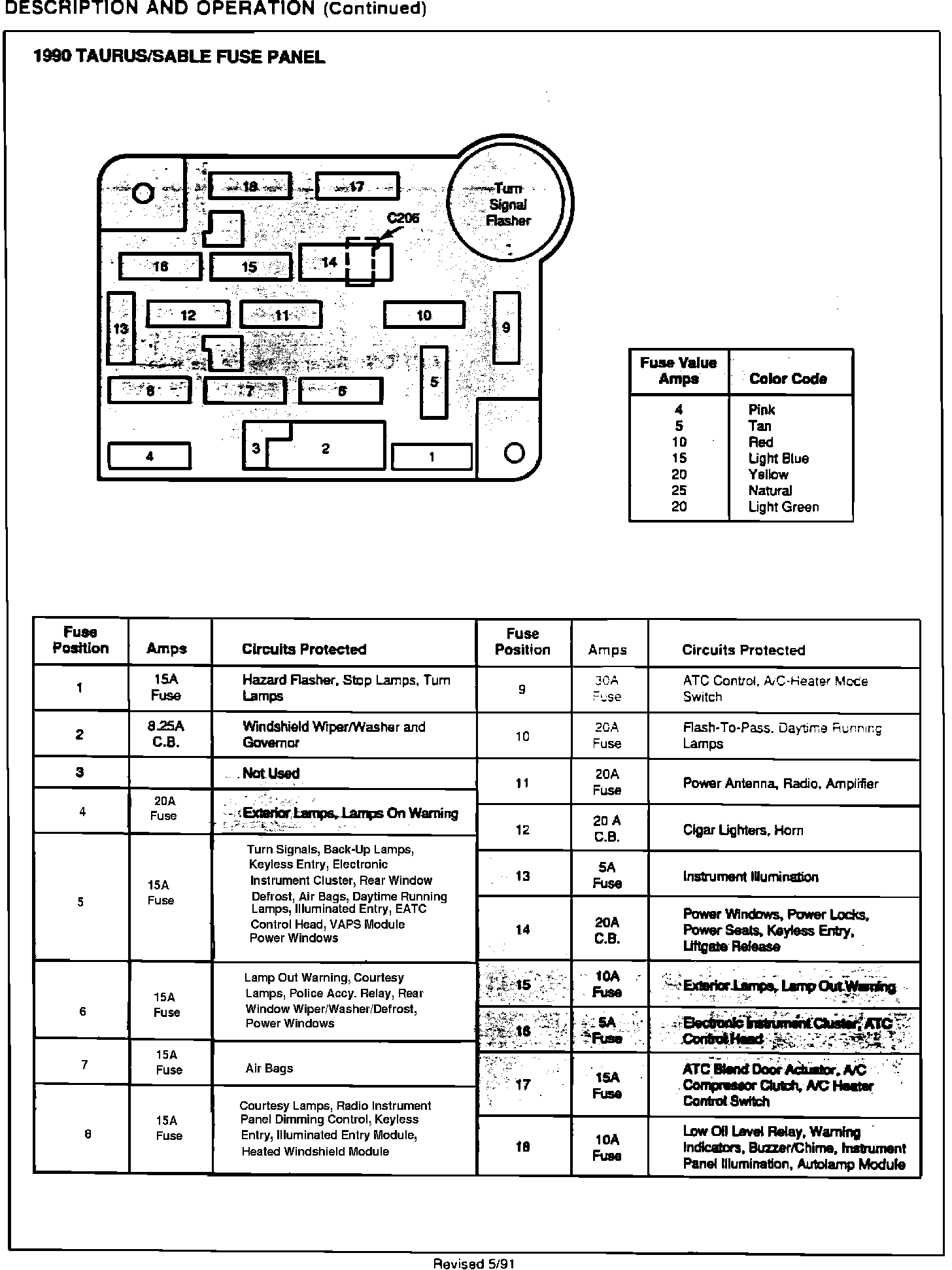

^ 1990 Taurus/Sable Shop Manual Page 34-50-3

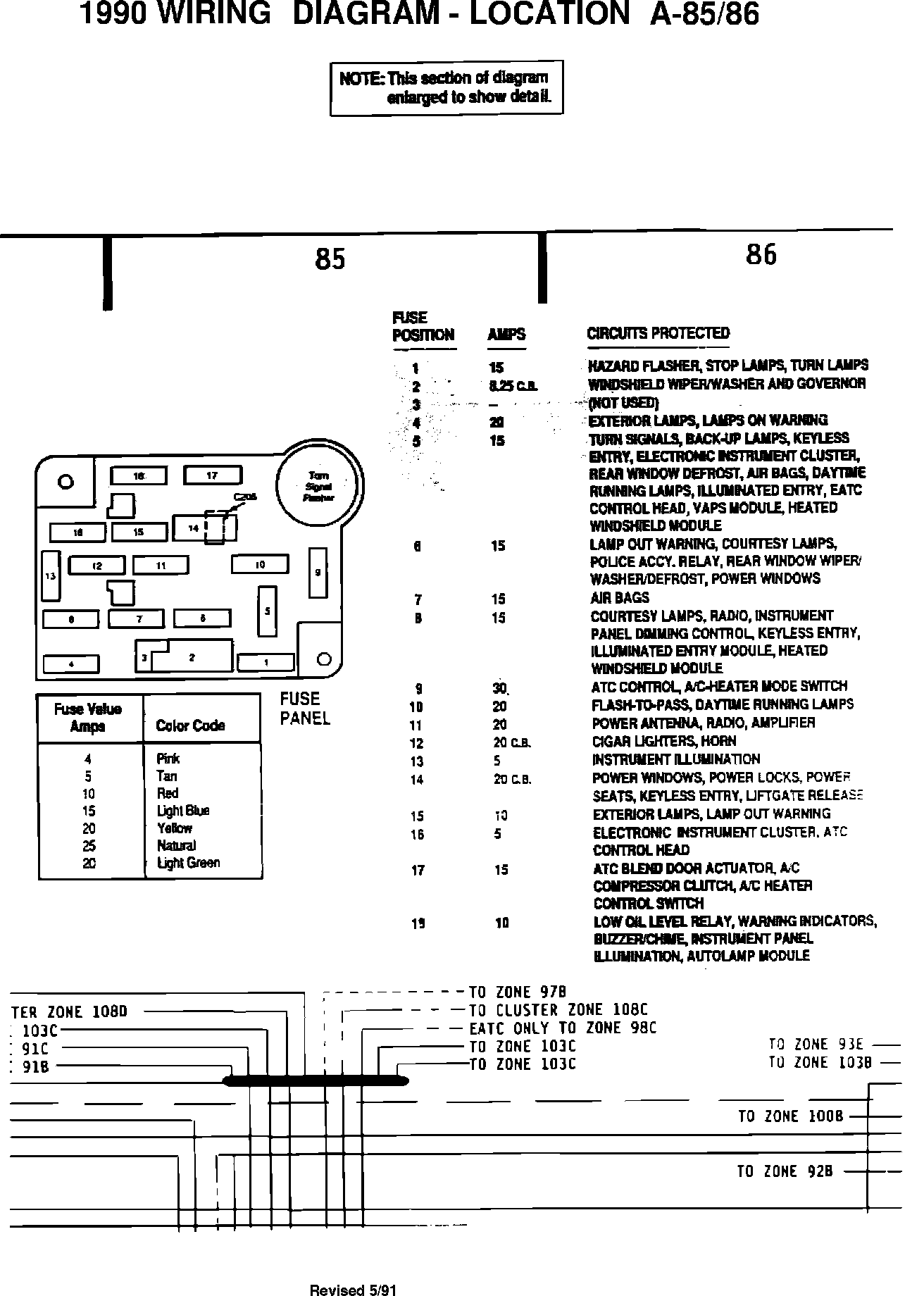

^ 1990 Taurus/Sable Wiring Diagram Location A-85/86

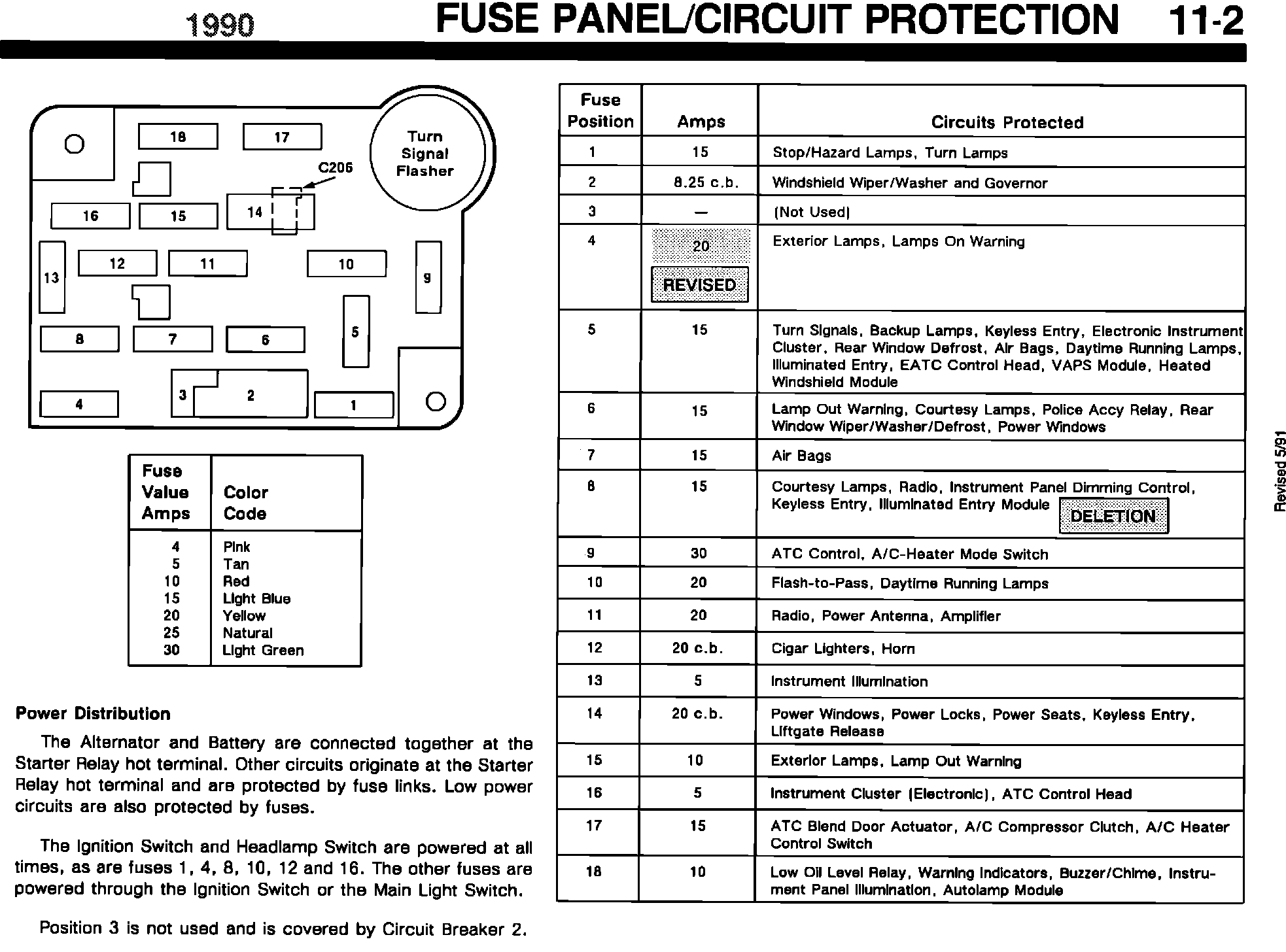

^ 1990 Taurus/Sable Electrical/Vacuum Troubleshooting Manual Page 11-2

ACTION:
Refer to the pages in this TSB article for the revised chart.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
