Power Seat Switch Test

NOTE: For power seat switch tests, refer to illustrations. See Fig 1 -Fig 4 .

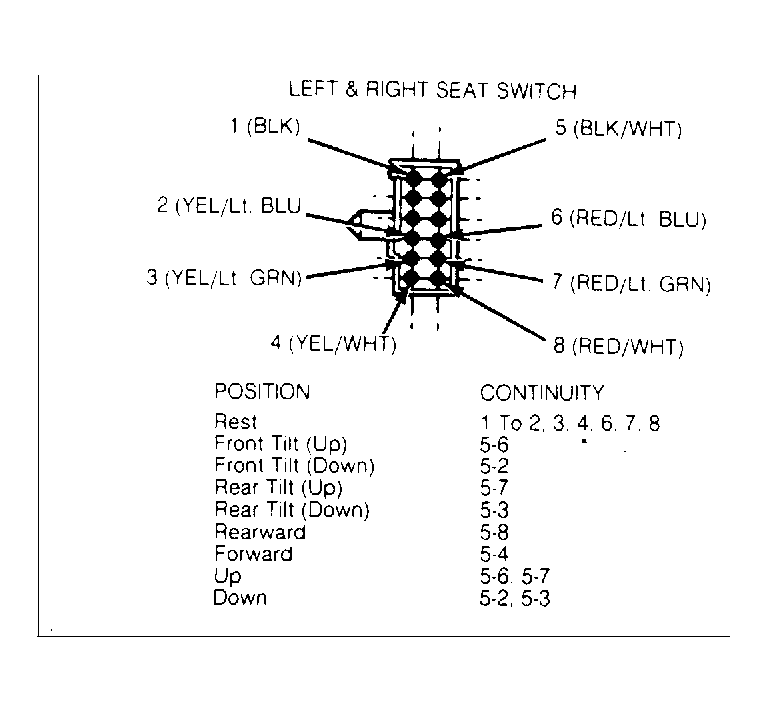

Fig 1: Testing Mark VII & Town Car Control Switch

Courtesy of FORD MOTOR CO.

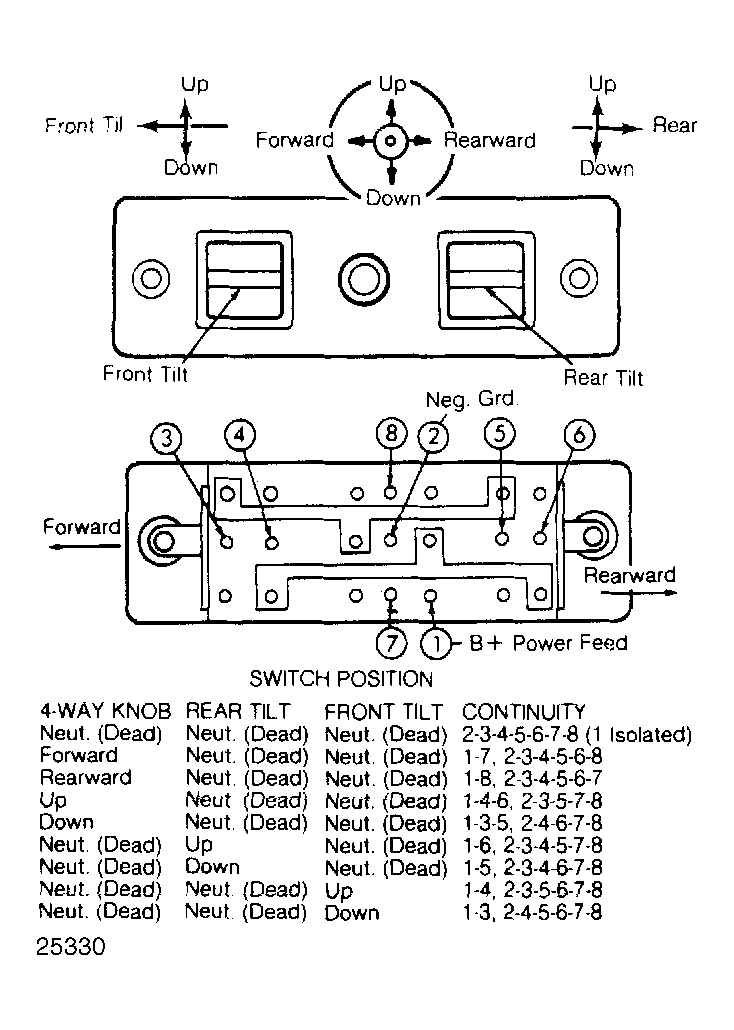

Fig 2: Testing Crown Victoria, Grand Marquis, Tempo, Topaz & Town Car Control Switch

Courtesy of FORD MOTOR CO.

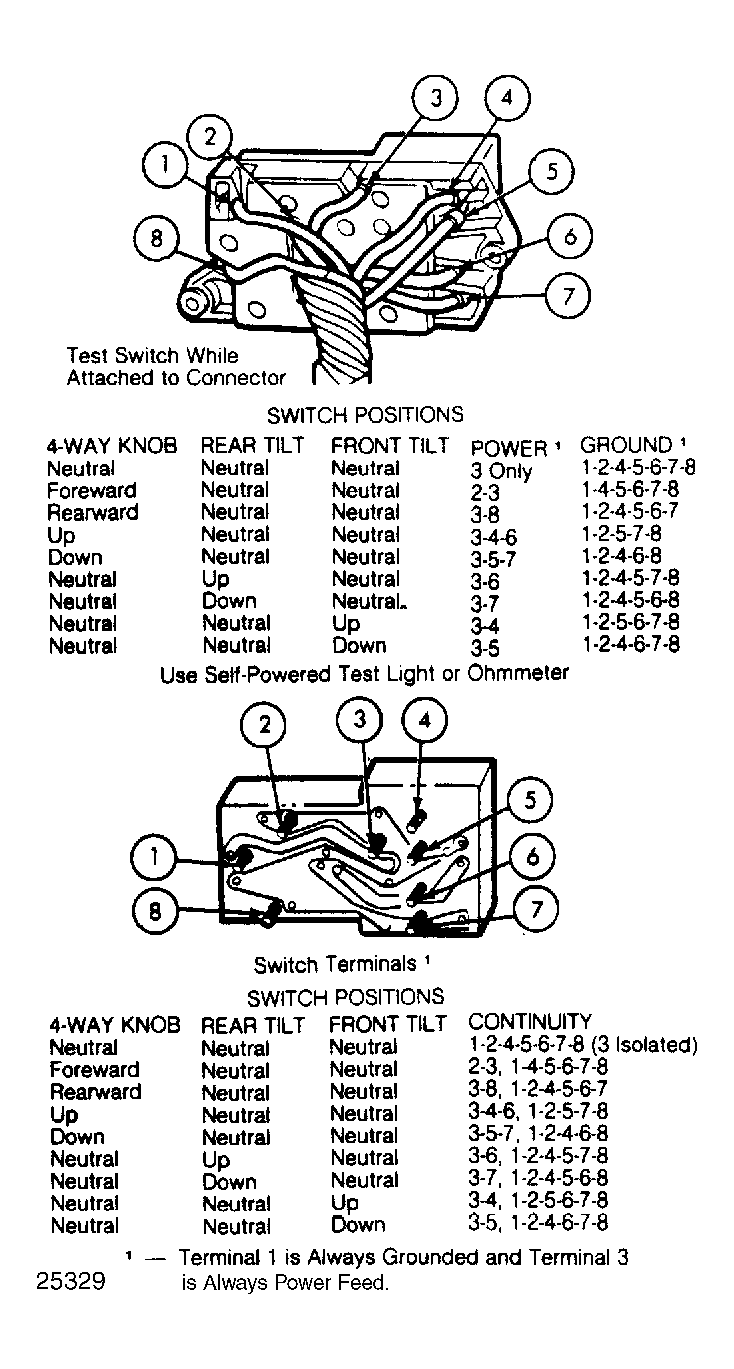

Fig 3: Testing Cougar, Sable, Taurus & Thunderbird Control Switch

Courtesy of FORD MOTOR CO.

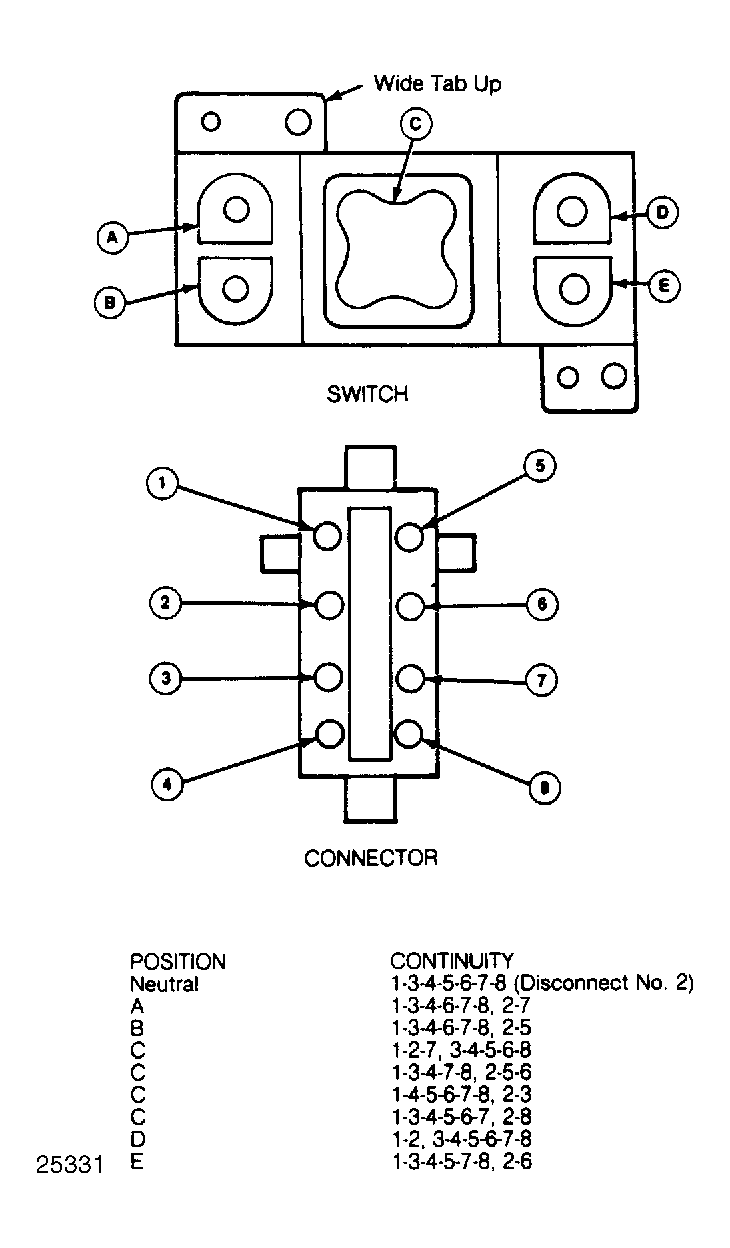

Fig 4: Testing Continental Seat Control Switches

Courtesy of FORD MOTOR CO.
