Bronco 4.9 Y, Standard, M5OD-R2
>>
Repair and Diagnosis
>>
Drivelines & Axles
>>
Locking Hubs
>>
Testing
>>
Electronic Shift Transfer Case Testing
>>
10-Pin Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
10-Pin Connector
For functions of 10-pin connector, See
Fig 1
.

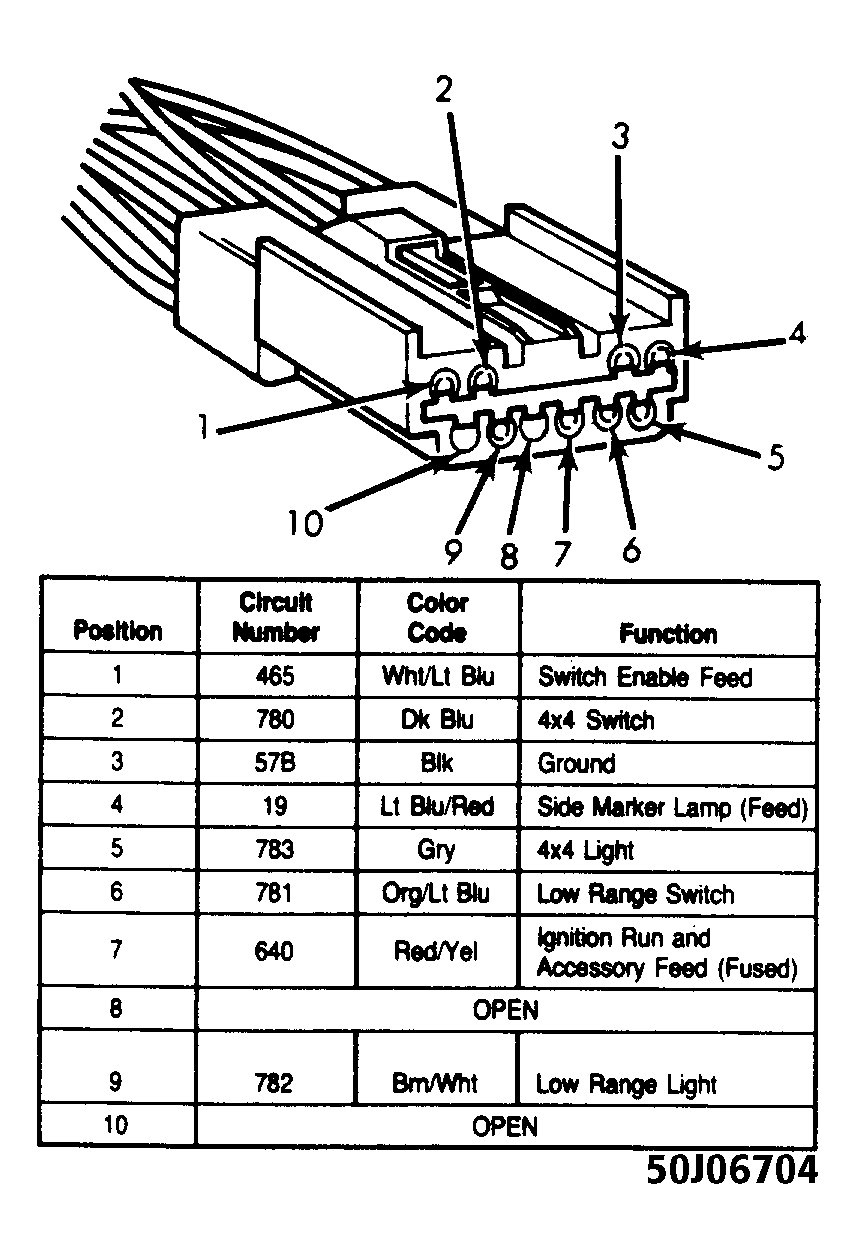

Fig 1: 10-Wire Connector Harness & Function Chart
Courtesy of FORD MOTOR CO.

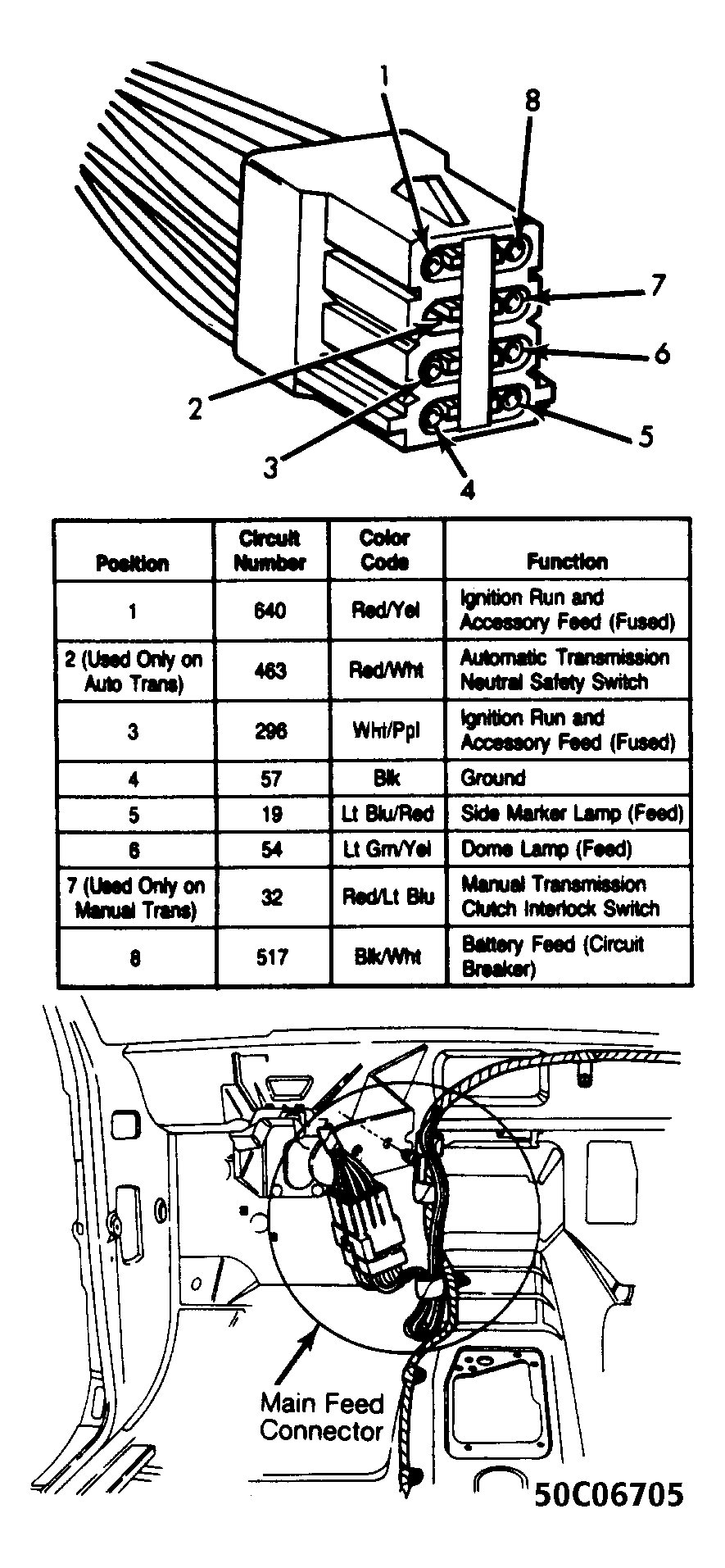

Fig 2: Main Feed Connector
Courtesy of FORD MOTOR CO.
