Coolant Temperature Sensor/Switch (For Computer): Locations

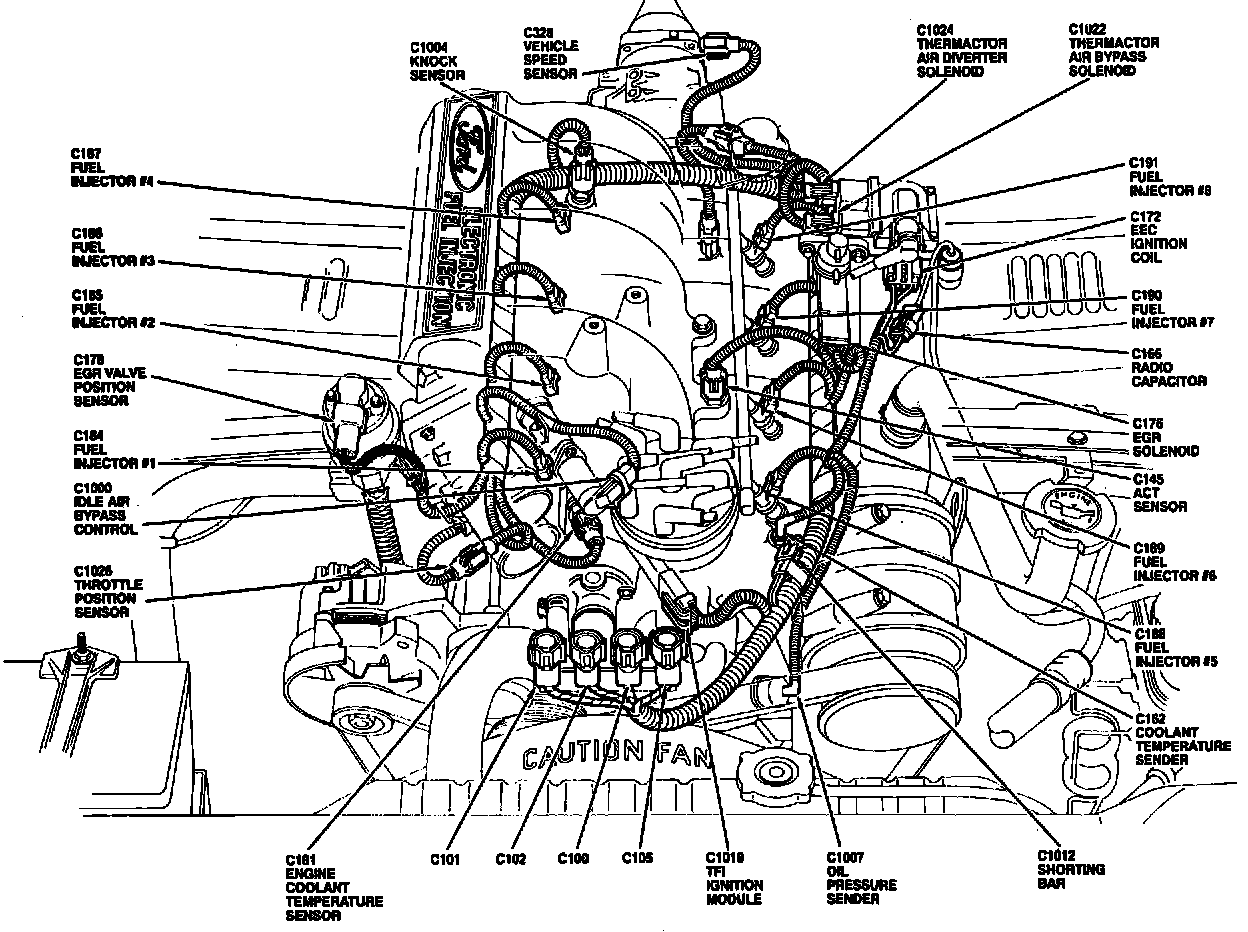

Engine Component Locations.:




Top Front Of Engine, On Heater Outlet Elbow

Applicable to: 1991 5.8L/V8-351

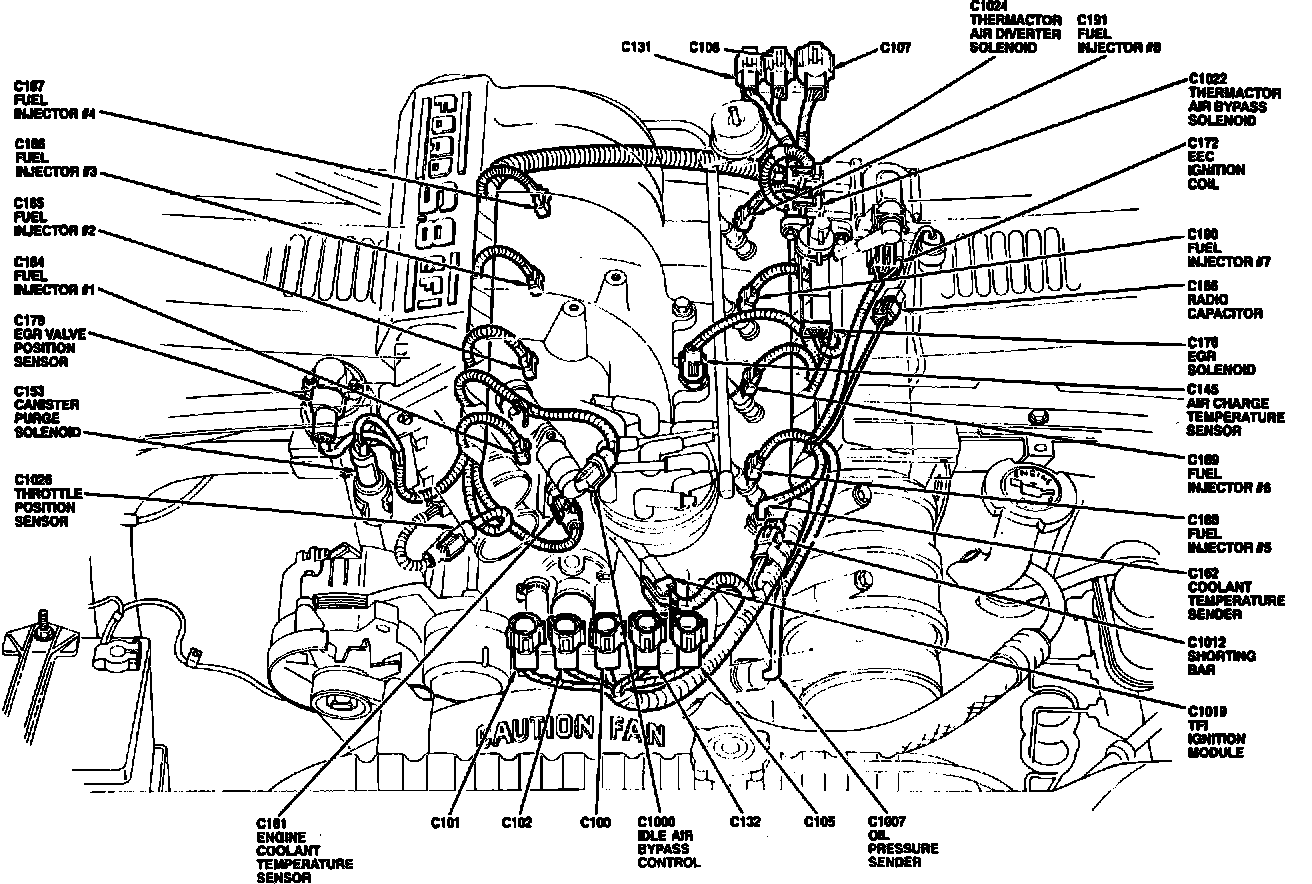

Engine Component Locations.:




Top Front Of Engine, On Heater Outlet Elbow

Applicable to: 1991 4.9L/6-300

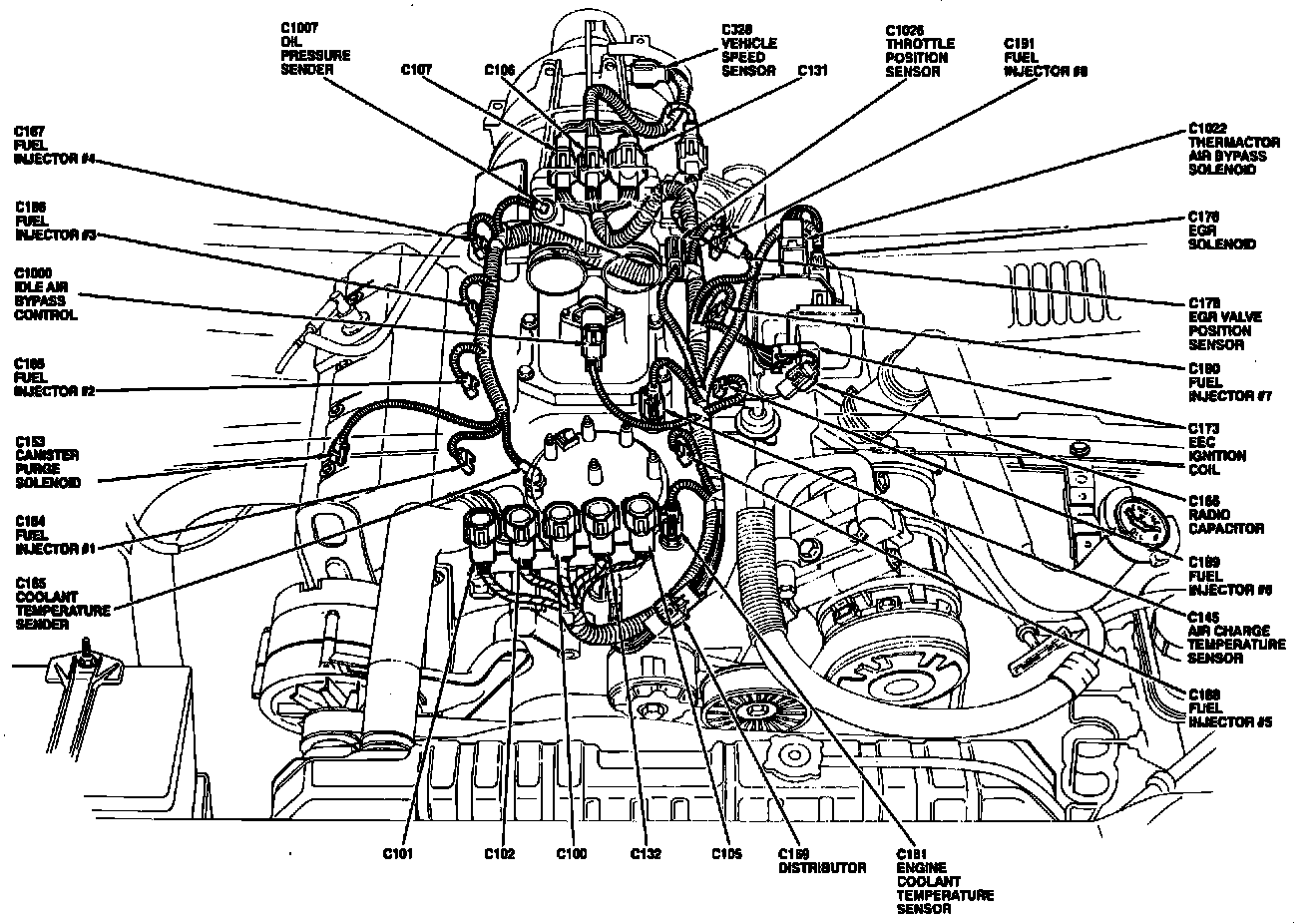

Engine Component Locations.:




Top Front Of Engine, On Heater Outlet Elbow

Applicable to: 1991 7.5L/V8-460

Engine Component Locations.:




Top Front Of Engine, On Heater Outlet Elbow

Applicable to: 1991 5.0L/V8-302

Engine Component Locations.:




Top Front Of Engine, On Heater Outlet Elbow

Applicable to: 1991 7.3L/V8-445
