Fuel Line Coupler Removal & Installation

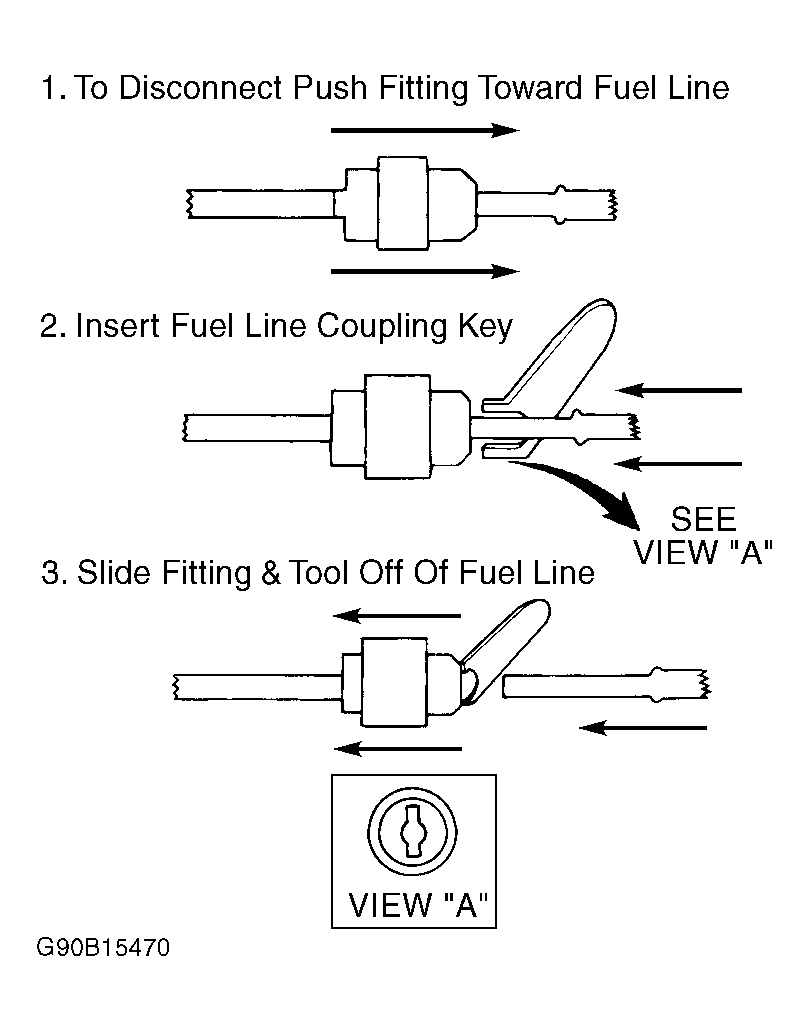

Disengage locking tabs on connector retainer and separate retainer halves. Disengage fitting from regulator by pushing fitting toward regulator and inserting Fuel Line Coupling Key (T90P-9550-A). See Fig 1. Remove fuel supply manifold assembly. See FUEL SUPPLY MANIFOLD ASSEMBLY under FUEL SYSTEM (GASOLINE).
