Knock Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

Knock Sensor Removal:

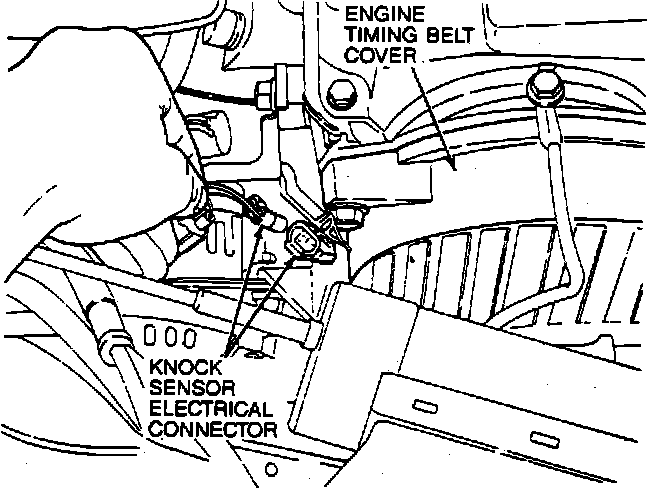

2. Disconnect the knock sensor electrical connector.

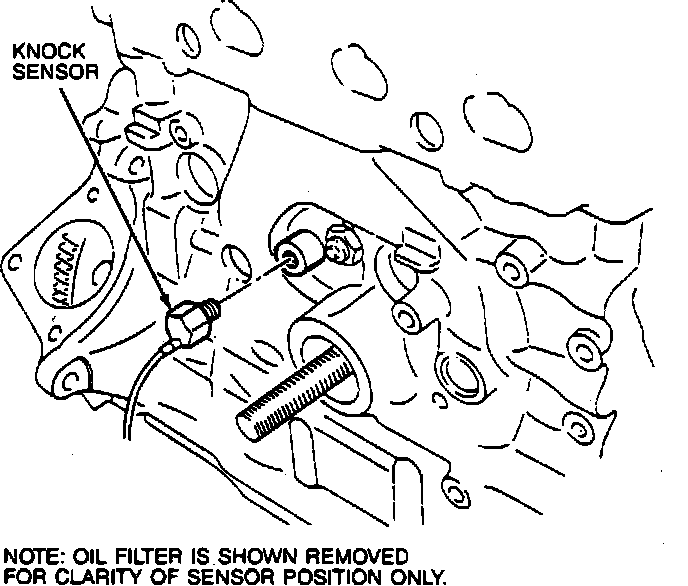

3. Remove the sensor from the block.

Knock Sensor Removal:

INSTALLATION
1. Install the knock sensor to the engine block.
2. Torque the sensor to 20-30 Nm (14-25 lb-ft).
3. Connect the knock sensor electrical connector.
4. Connect the negative battery cable.
