Engine Control Systems - Diagnosis Revision
>>
EEC Pinpoint Test - All Engines
>>

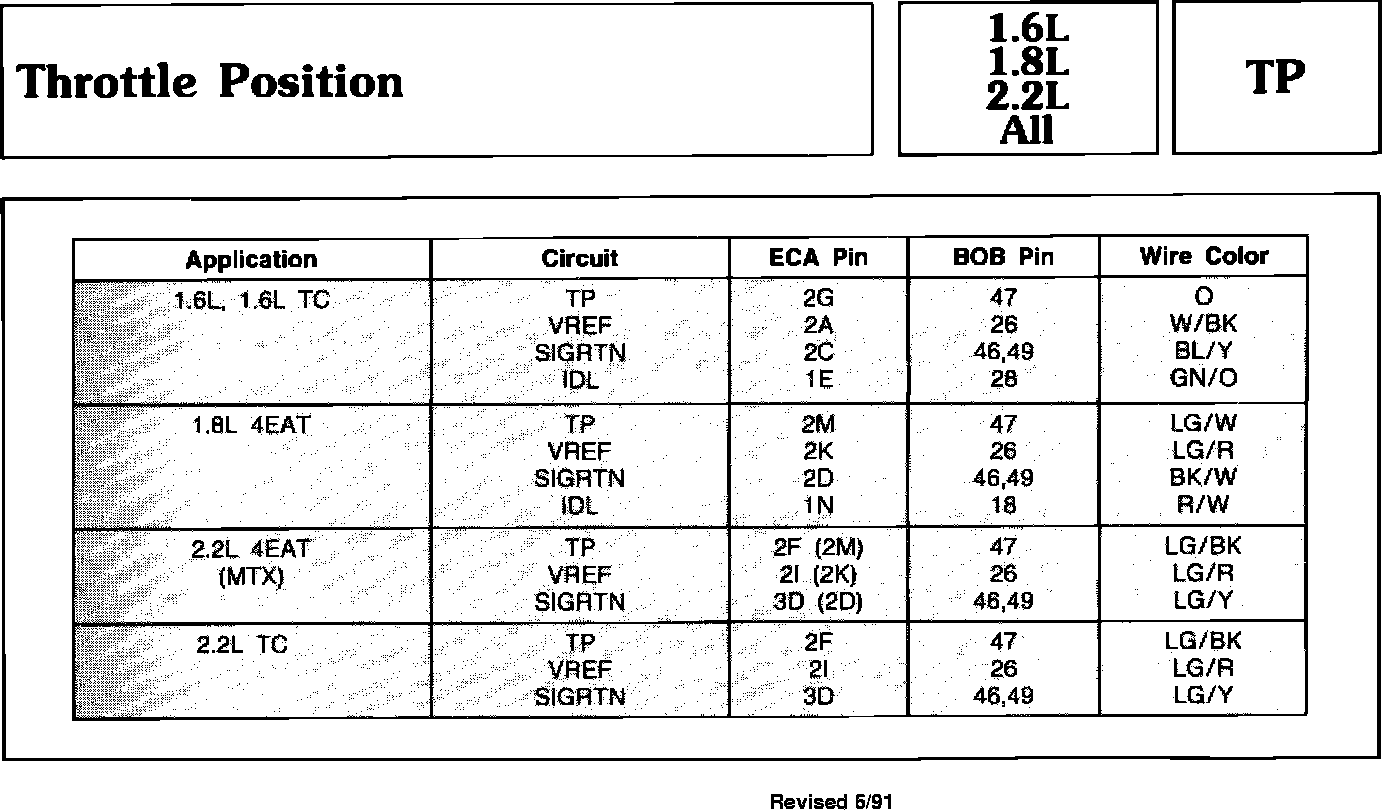

Throttle Position 1.6L, 1.8L, 2.2L All
>>

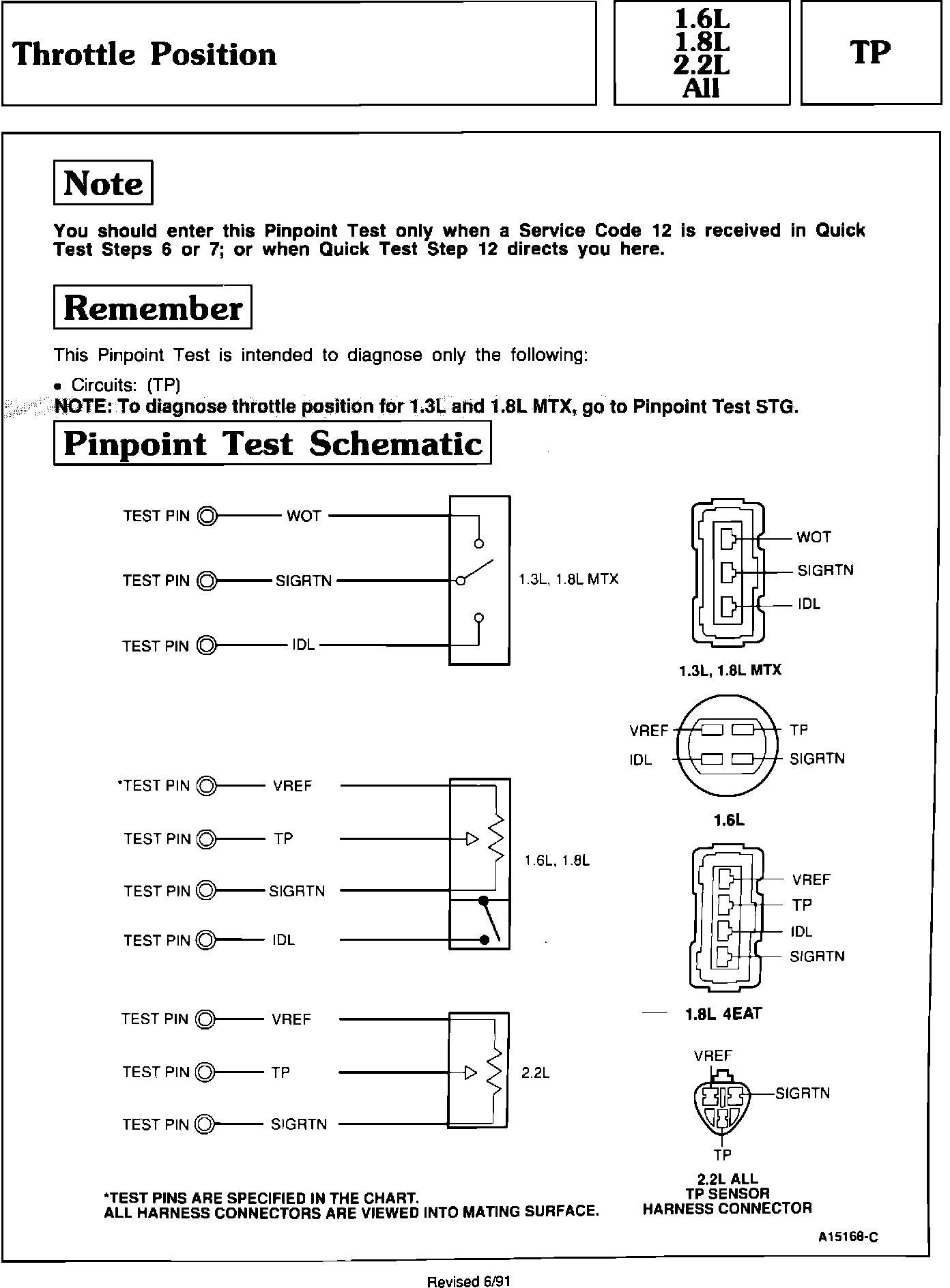

Note, Pinpoint Test Schematic, Connector I.D.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Note, Pinpoint Test Schematic, Connector I.D.
