Engine Control Systems - Diagnosis Revision
>>
EEC Pinpoint Test - All Engines
>>
Vane Air Flow - All Engines
>>

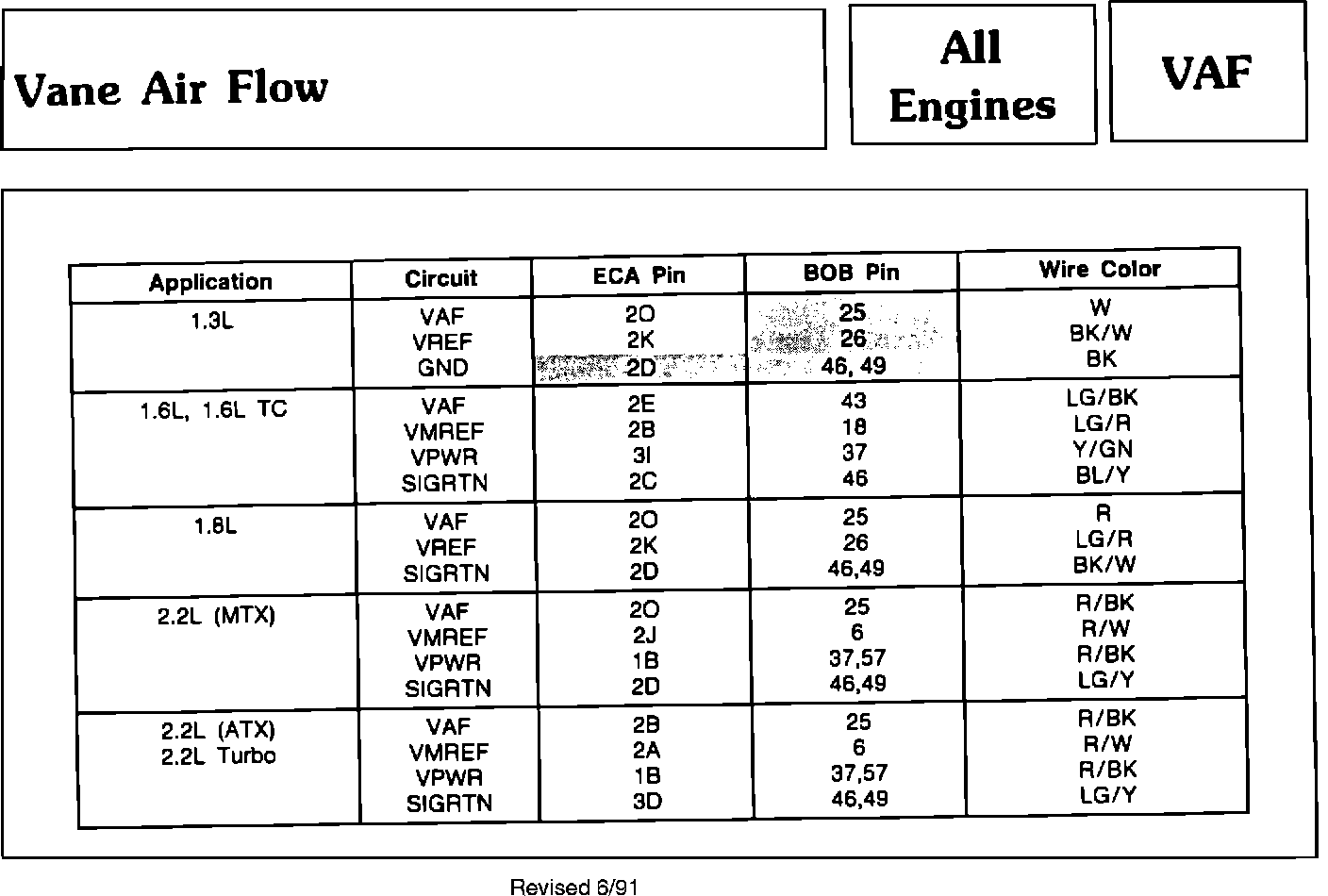

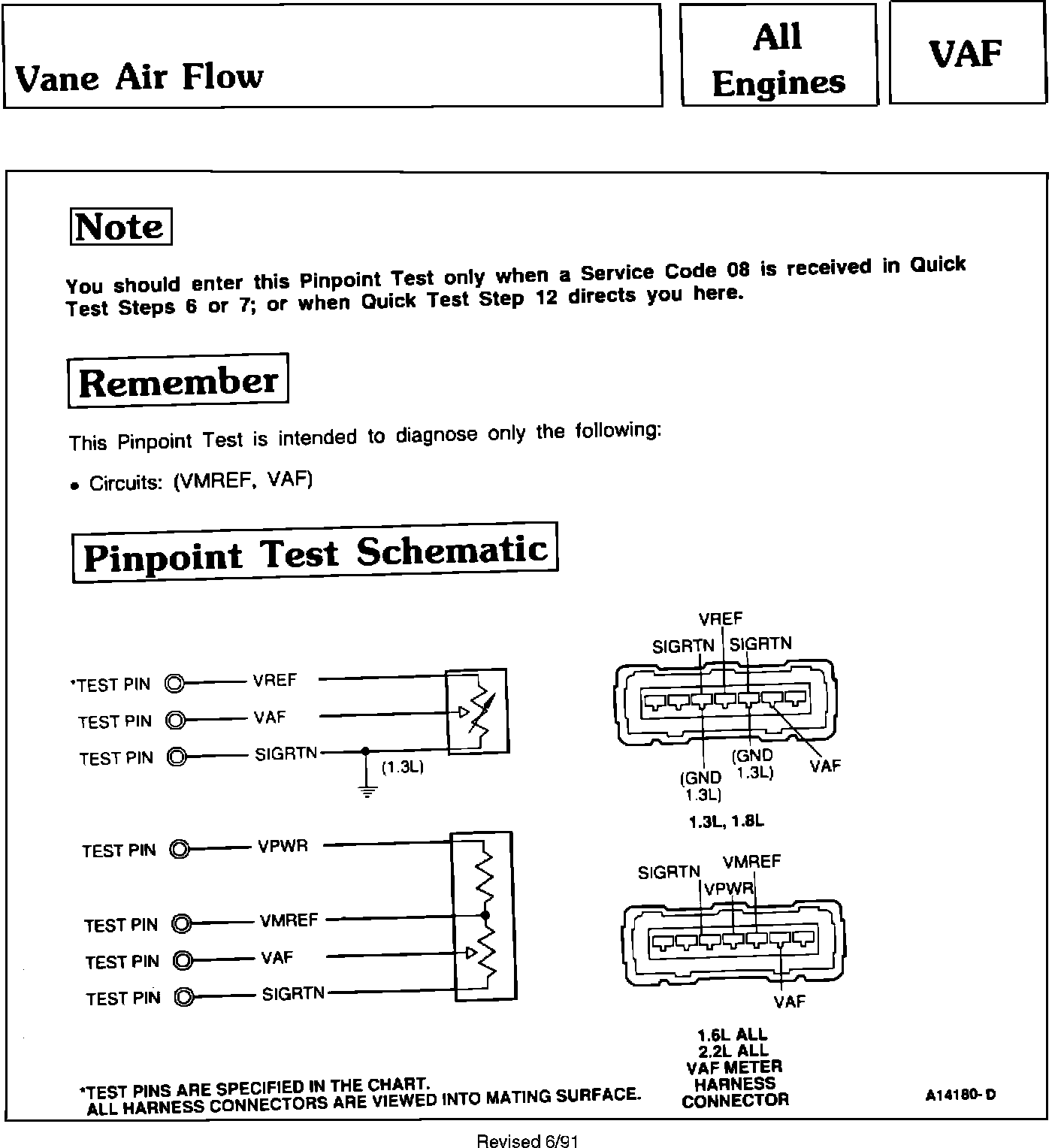

Notes, Pinpoint Test Schematic, Connector Pin I.D.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Notes, Pinpoint Test Schematic, Connector Pin I.D.
