M/T Technical Data

MTX (A) 5-spd M/T, Clutch (Escort/Tracer):

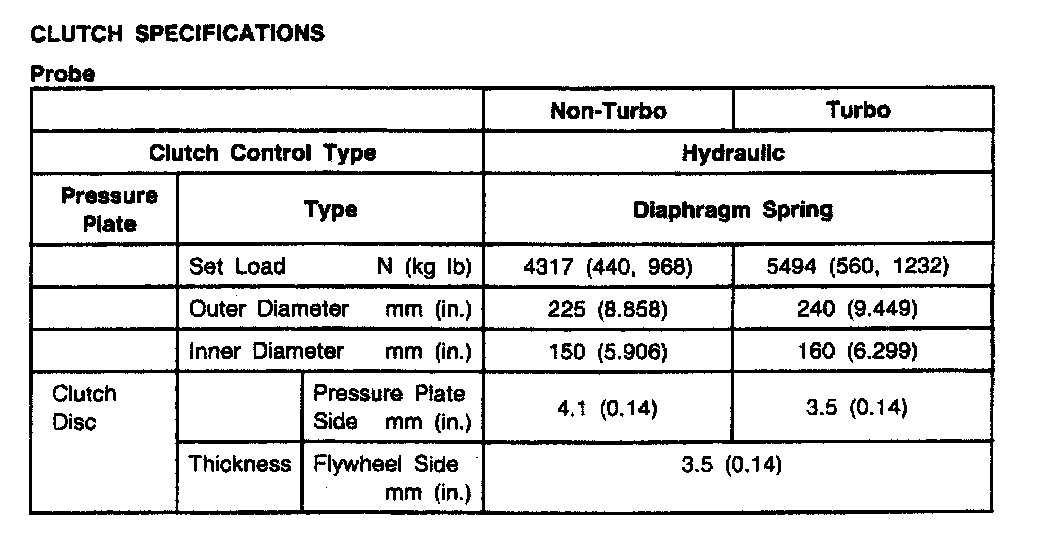

MTX (A) 5-spd M/T, Clutch Control (Probe):

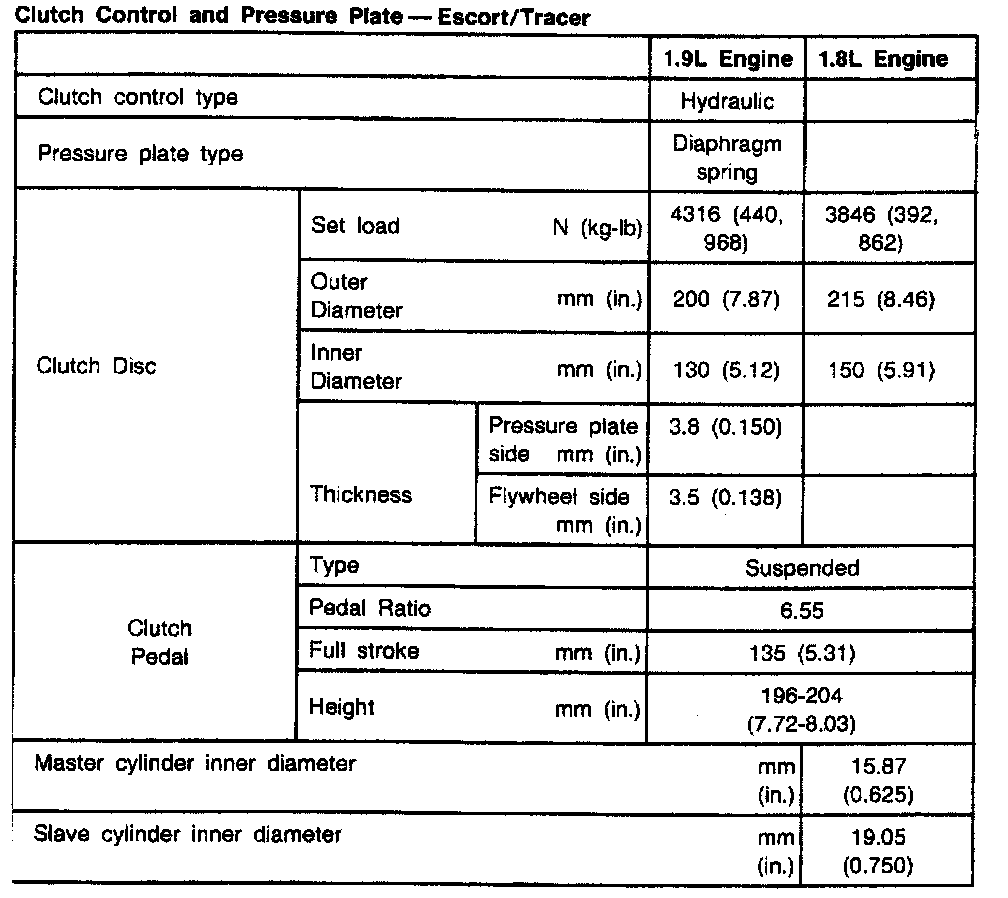

MTX (A) 5-spd M/T, Clutch Control/Pressure Plate (Escort/Tracer):
