M/T Torque Data

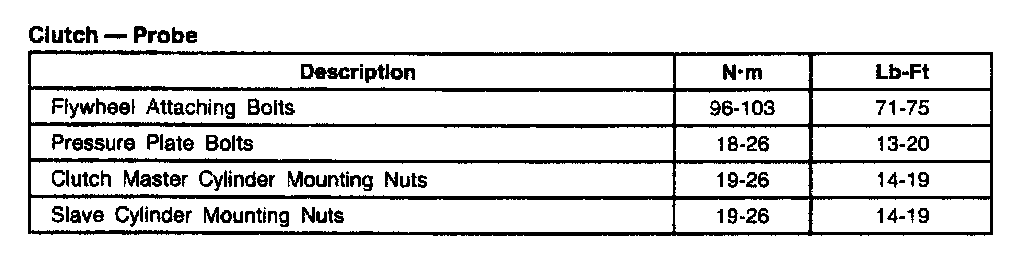

MTX (A) 5-spd M/T, Clutch Torque (Probe):

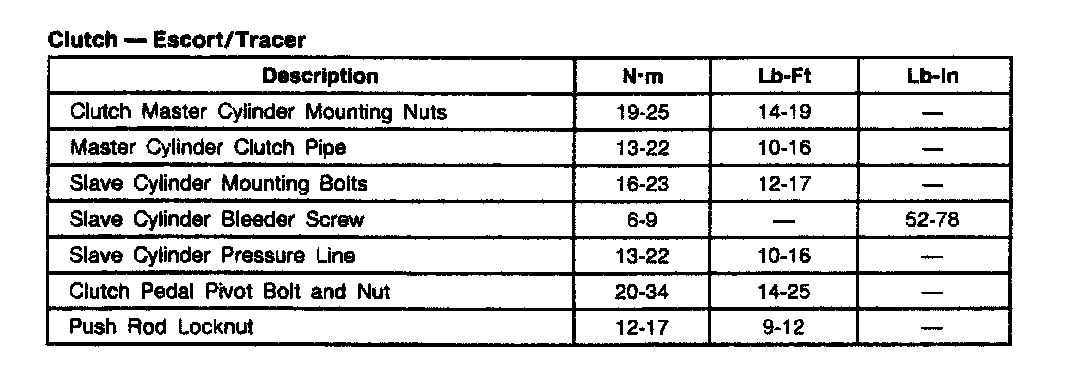

MTX (A) 5-spd M/T, Clutch Torque (Escort/Tracer):

MTX (A) 5-spd M/T, Transaxle Assembly (Escort):

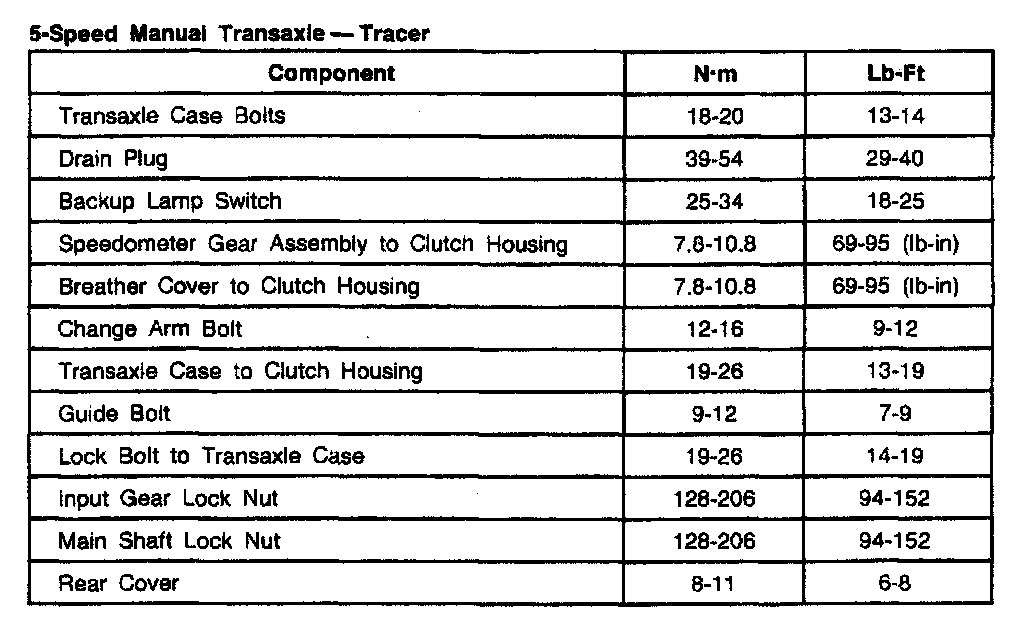

MTX (A) 5-spd M/T, Transaxle Assembly (Tracer):

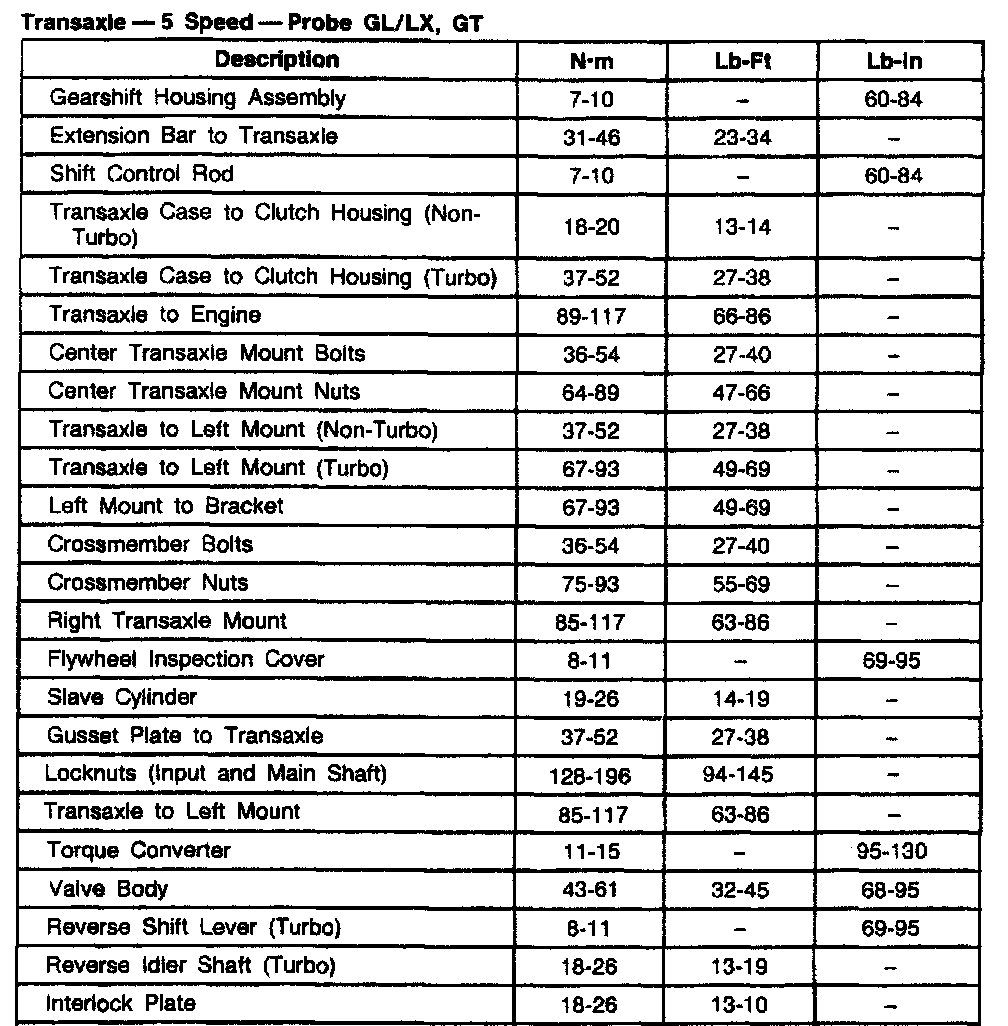

MTX (A) 5-spd M/T, Transaxle Assembly (Probe GL/LX, GT):

MTX (A) 5-spd M/T, Transaxle Assembly (Probe GL LX, GT):

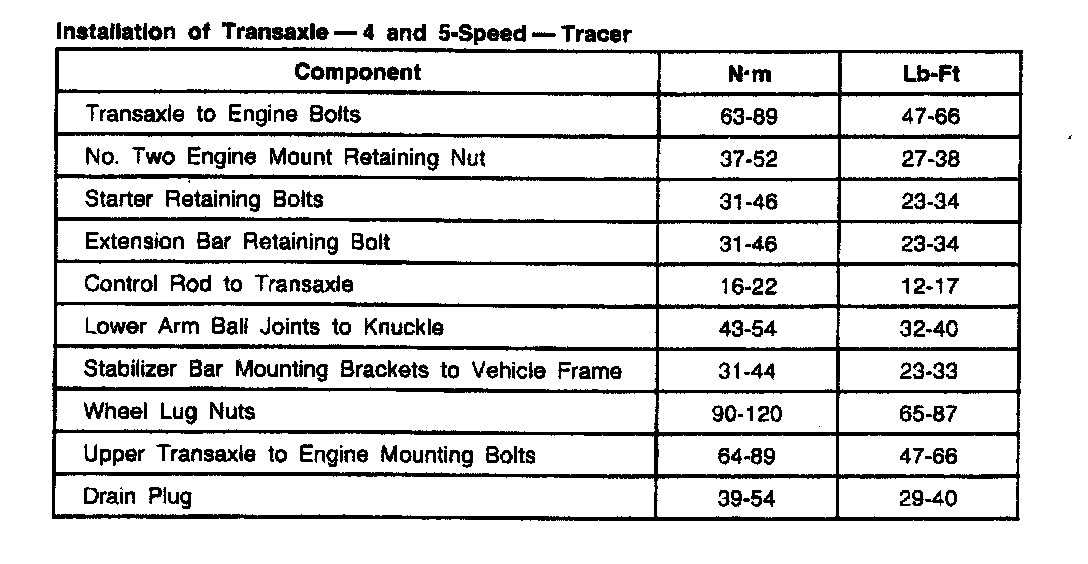

MTX (A) 5-spd M/T, Installation Of Transaxle (Tracer):

MTX (A) 5-spd M/T, Assembly Of Transaxle (All Vehicles):
