B: Brake On/Off

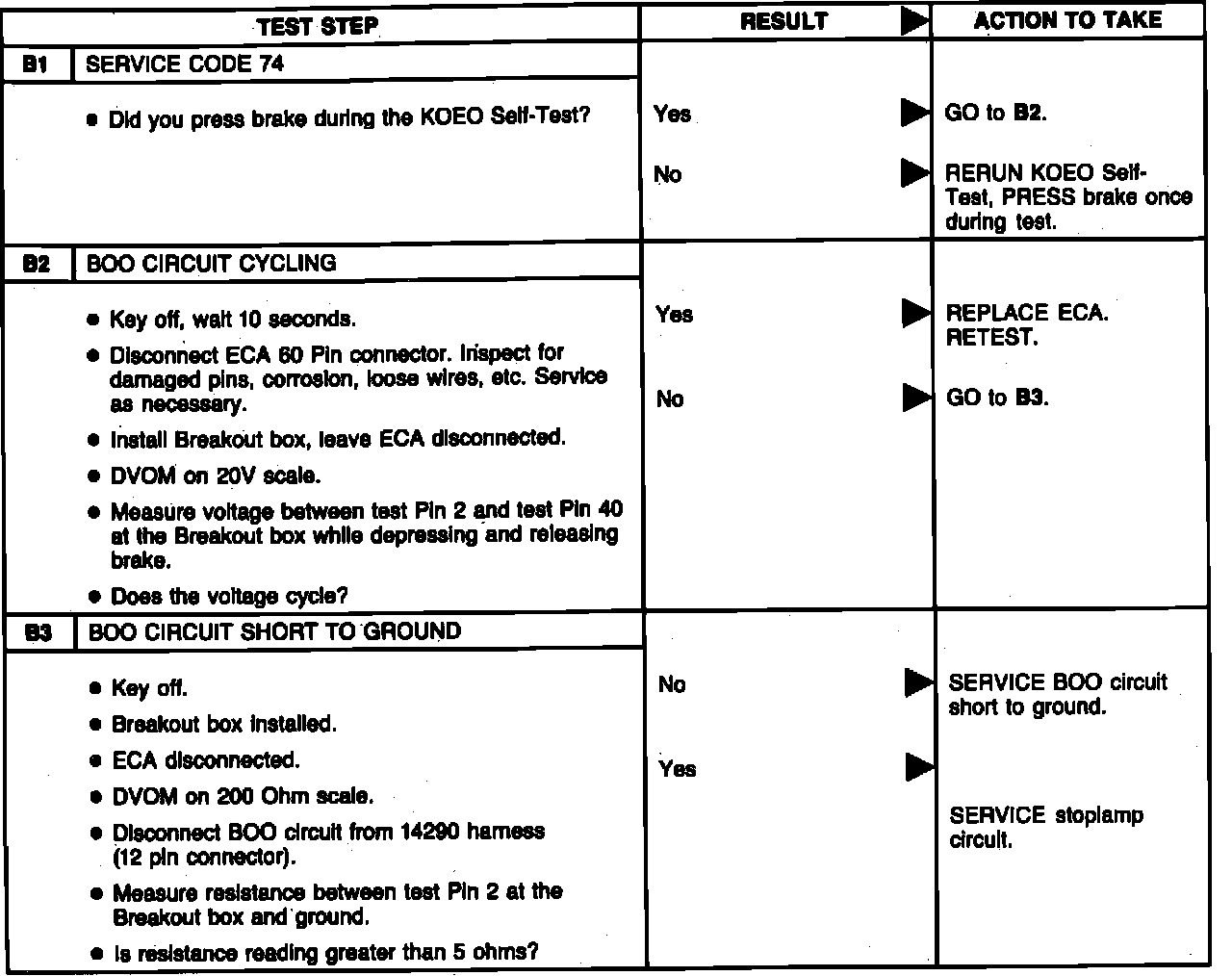

Fig. 42 Brake On/Off (BOO), Pinpoint Test B (Part 1 Of 6):

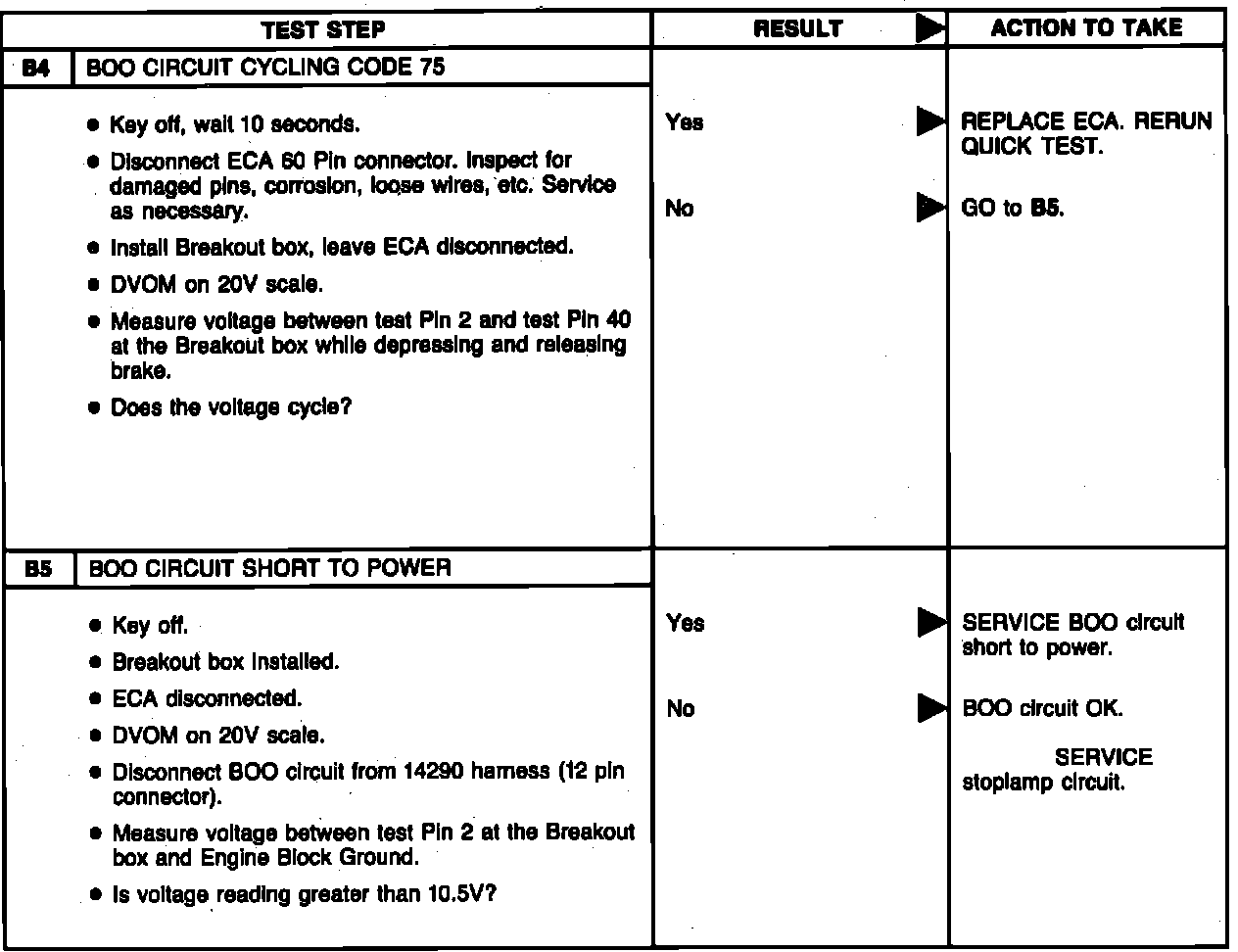

Fig. 42 Brake On/Off (BOO), Pinpoint Test B (Part 2 Of 6):

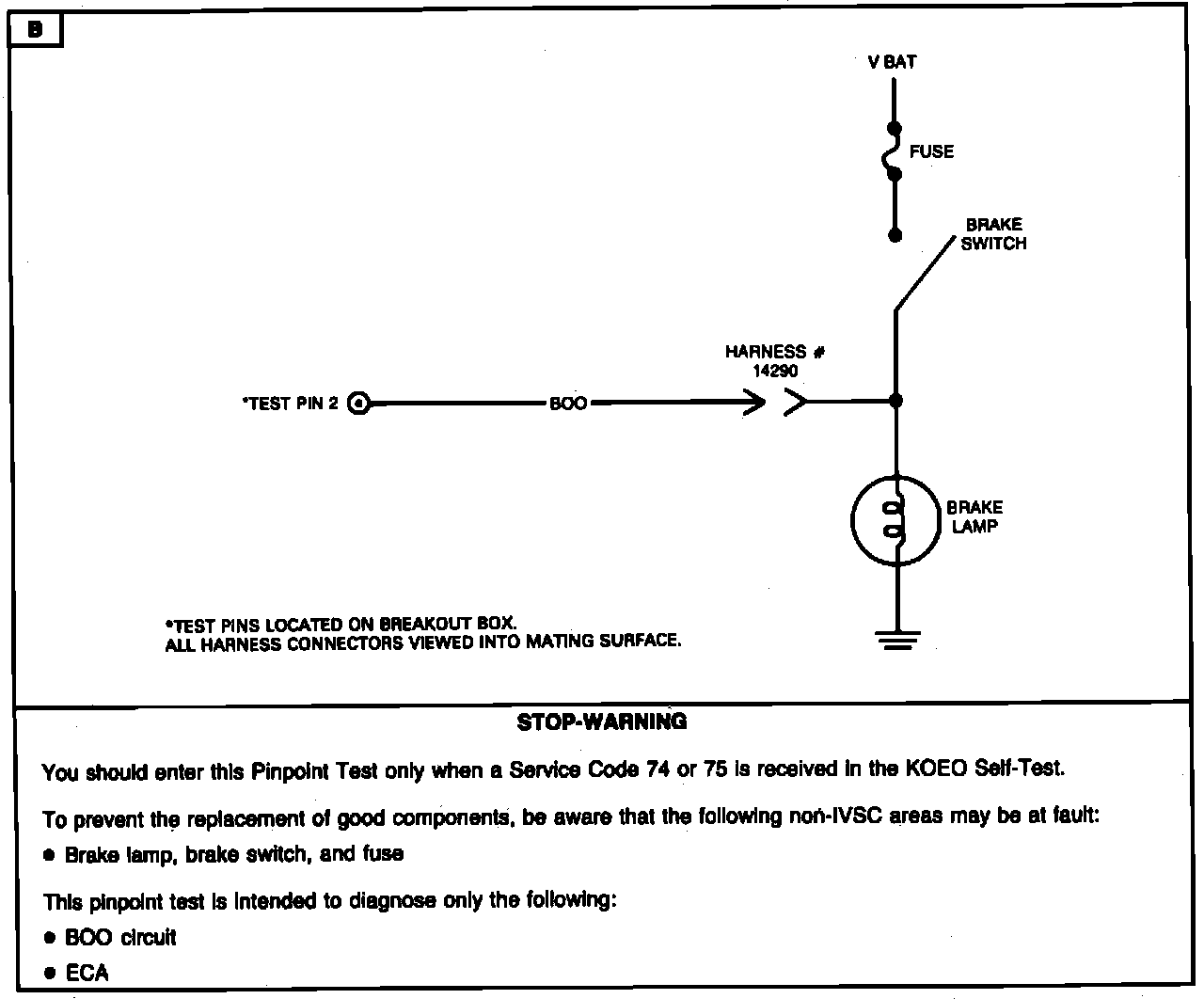

Fig. 42 Brake On/Off (BOO), Pinpoint Test B (Part 3 Of 6):
