Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Cooling Fan Controller | Behind right side of instrument panel, above glove box opening. |
| Air Bag Diagnostic Module | Behind left side of instrument panel, next to fuse block. |
| Air Bag Power Supply | Behind left side of instrument panel, next to fuse block. |
| Electronic Engine Control (EEC) | Under left side of instrument panel. |
| Illuminated Entry Module | Underside of rear package tray. |
| Low Fuel Warning Module | On rear of instrument cluster. |
| Passive Restraint Module | Behind right side of instrument panel, above glove box. |

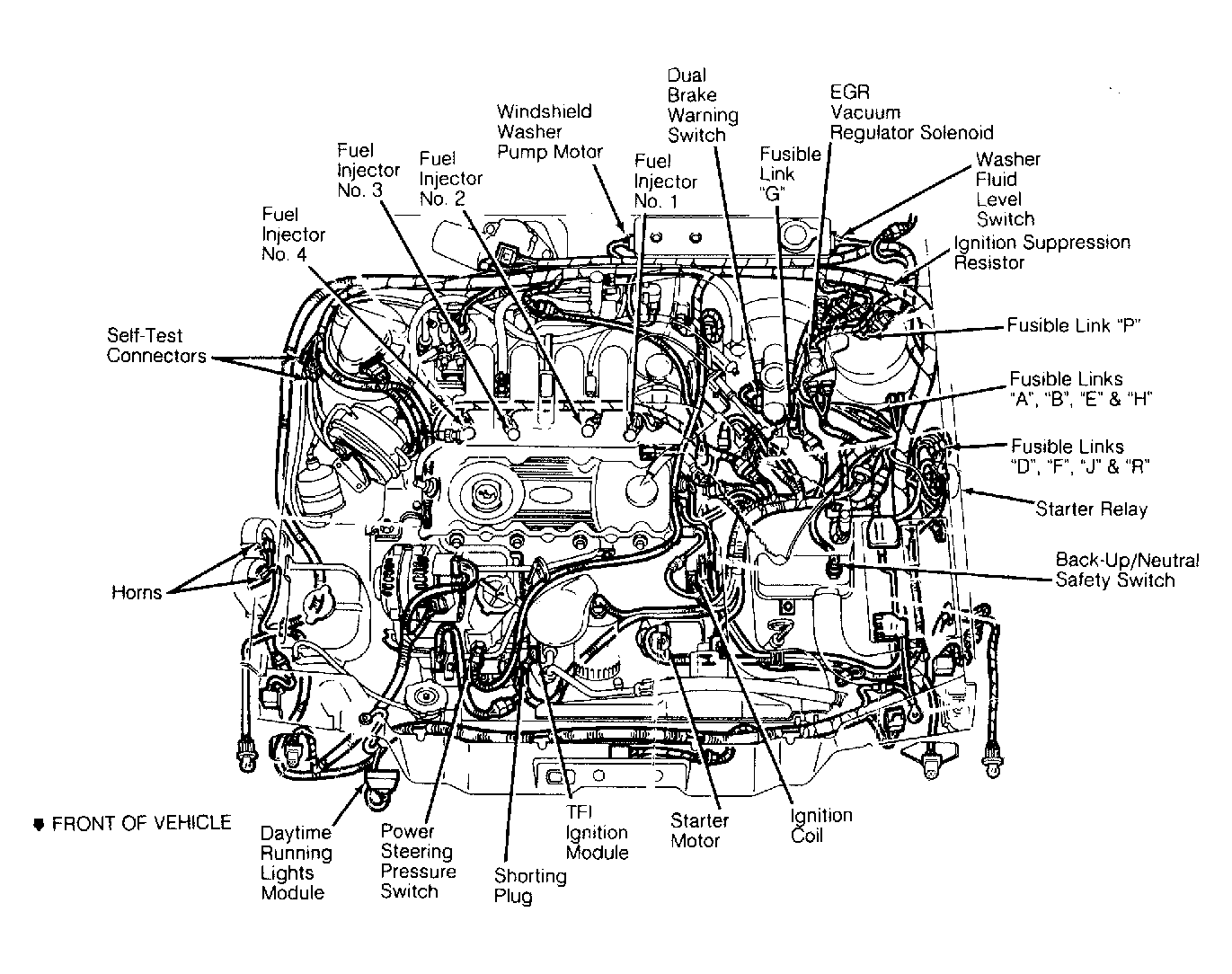

| TFI Ignition Module | Attached to distributor. See Figure . |
| Warning Chime Module | Behind left instrument panel, right of steering column. |
| Wiper Interval Governor | Behind left instrument panel, next to fuse block. |
