Ignition Control Module: Service and Repair

REMOVAL:

Ignition Module:

1. Disconnect the negative battery cable.
2. Disconnect the electrical connector from the ignition module.

NOTE: To disconnect the module connector, push on the connector where it says PUSH, then slide connector from module.

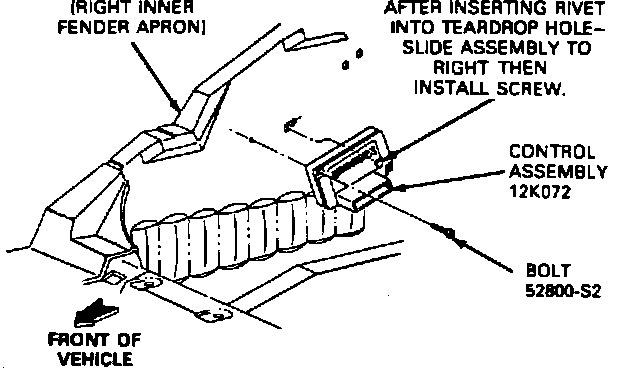

3. Remove the ignition module retaining bolt and remove the module by sliding the assembly forward until it is released from the teardrop shaped hole in the sheet metal.

INSTALLATION:

1. Place the module on the sheet metal so the retaining rivet passes through the hole, then slide the module down into position. Install the retaining bolt bolt, torquing to 22-31 in lb (2.2-3.5 Nm).
2. Connect the electrical connector to the module.
3. Install the negative battery cable.
