Component Locations

COMPONENT LOCATIONS

Component	Location
Left Hand Power Window Motor	In Left Door
Right Hand Power Window Motor	In Right Door

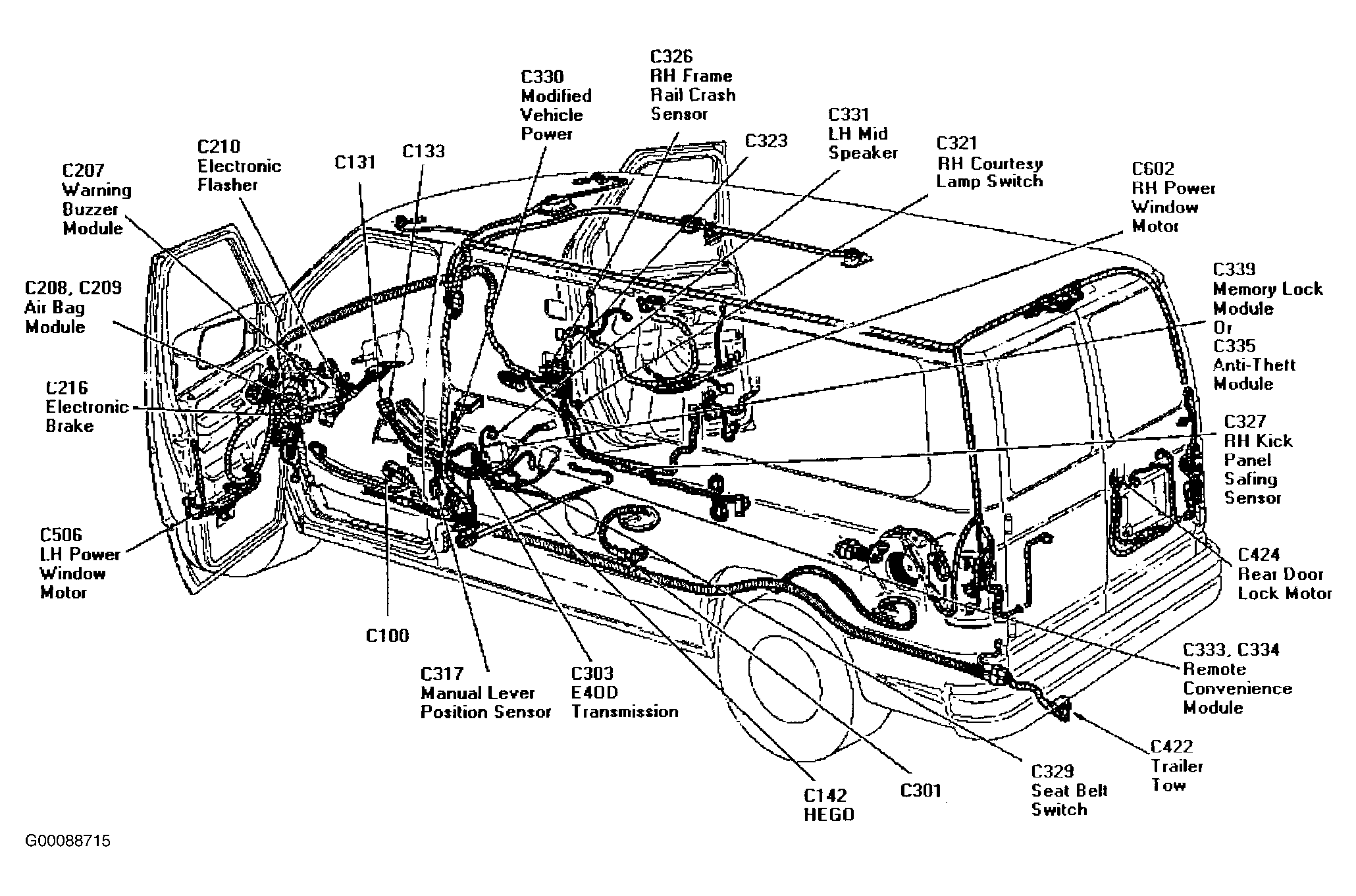

Fig 1: Exploded View Of Component Locations (Econoline)

Courtesy of FORD MOTOR CO.
