Power Window Switch: Installation

Position switch to connector and press firmly into place. Install connector to the switch housing using three attaching screws. Position switch housing to door trim panel and press firmly into place. See Fig 1 .

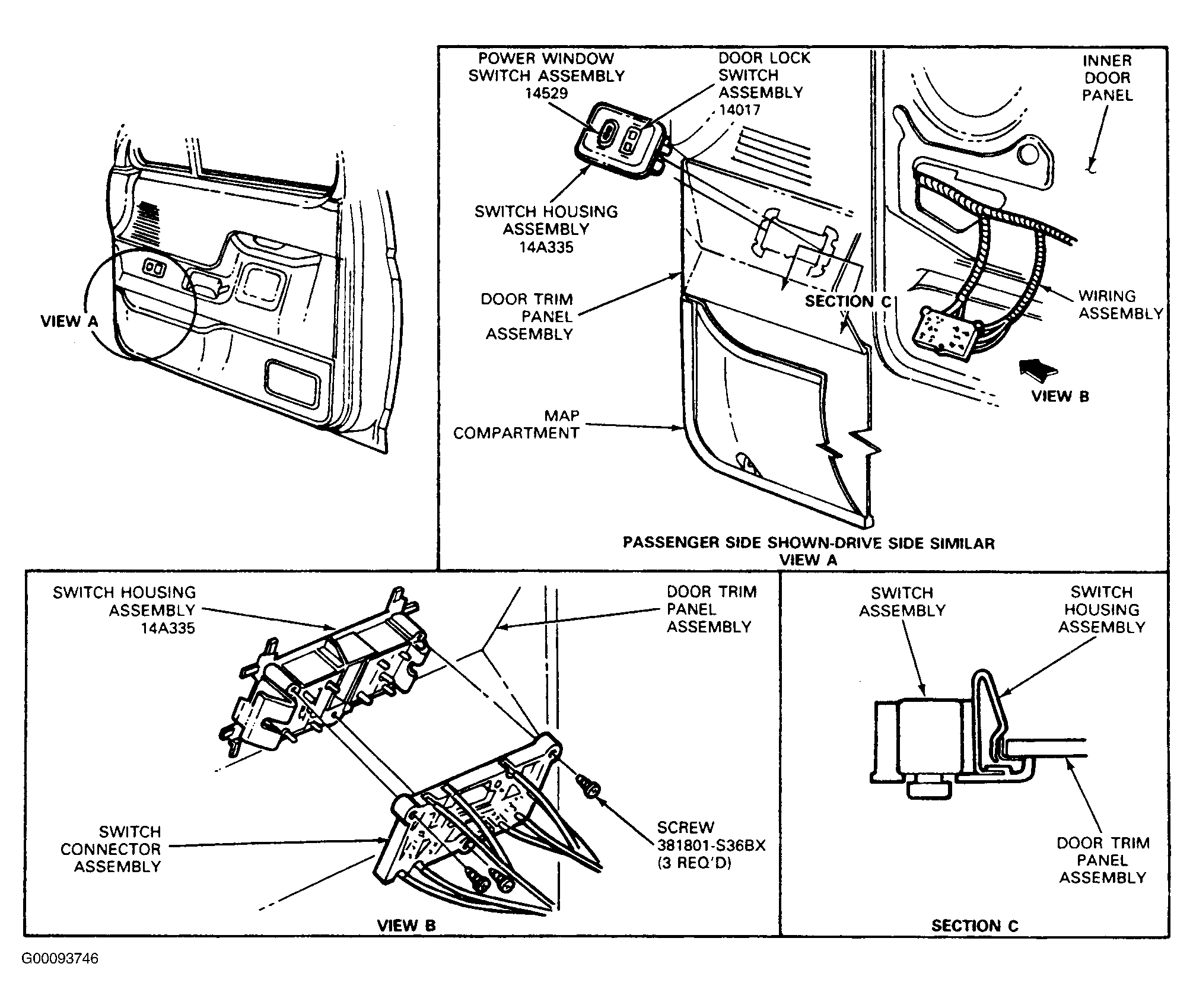

Fig 1: Identifying & Replacing Front Door Switches (Bronco & F-Series Pickup)

Courtesy of FORD MOTOR CO.
