Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Circuit Breakers | |||
| Power Locks/4WD/Tailgate Window | In cavity No. 12 of fuse block. | ||
| Power Windows | In cavity No. 14 of fuse block. | ||
| Fuse Blocks | |||
| Engine Compartment | |||

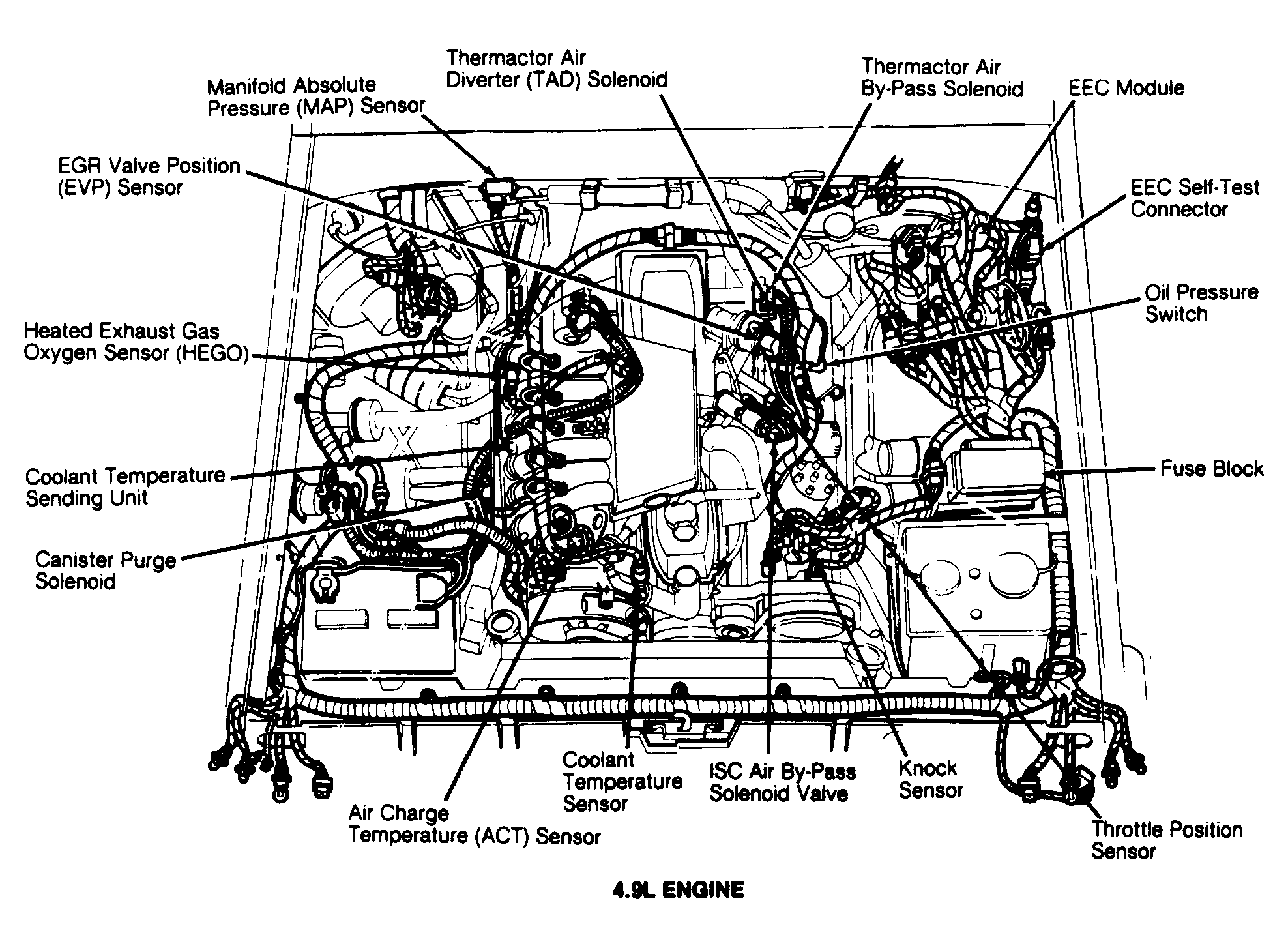

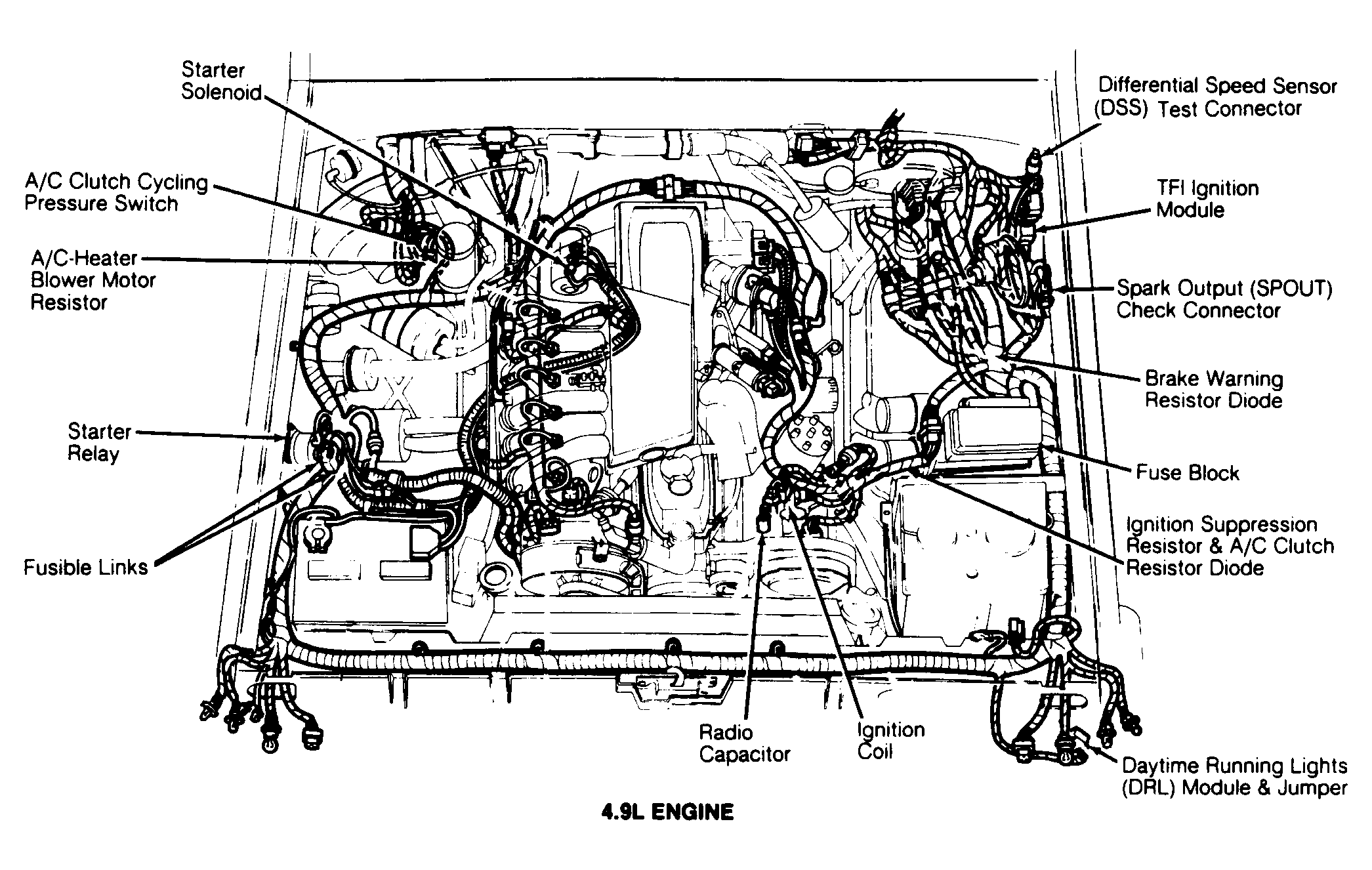

| 4.9L | On left inner fender panel. See Figure & Figure . | ||

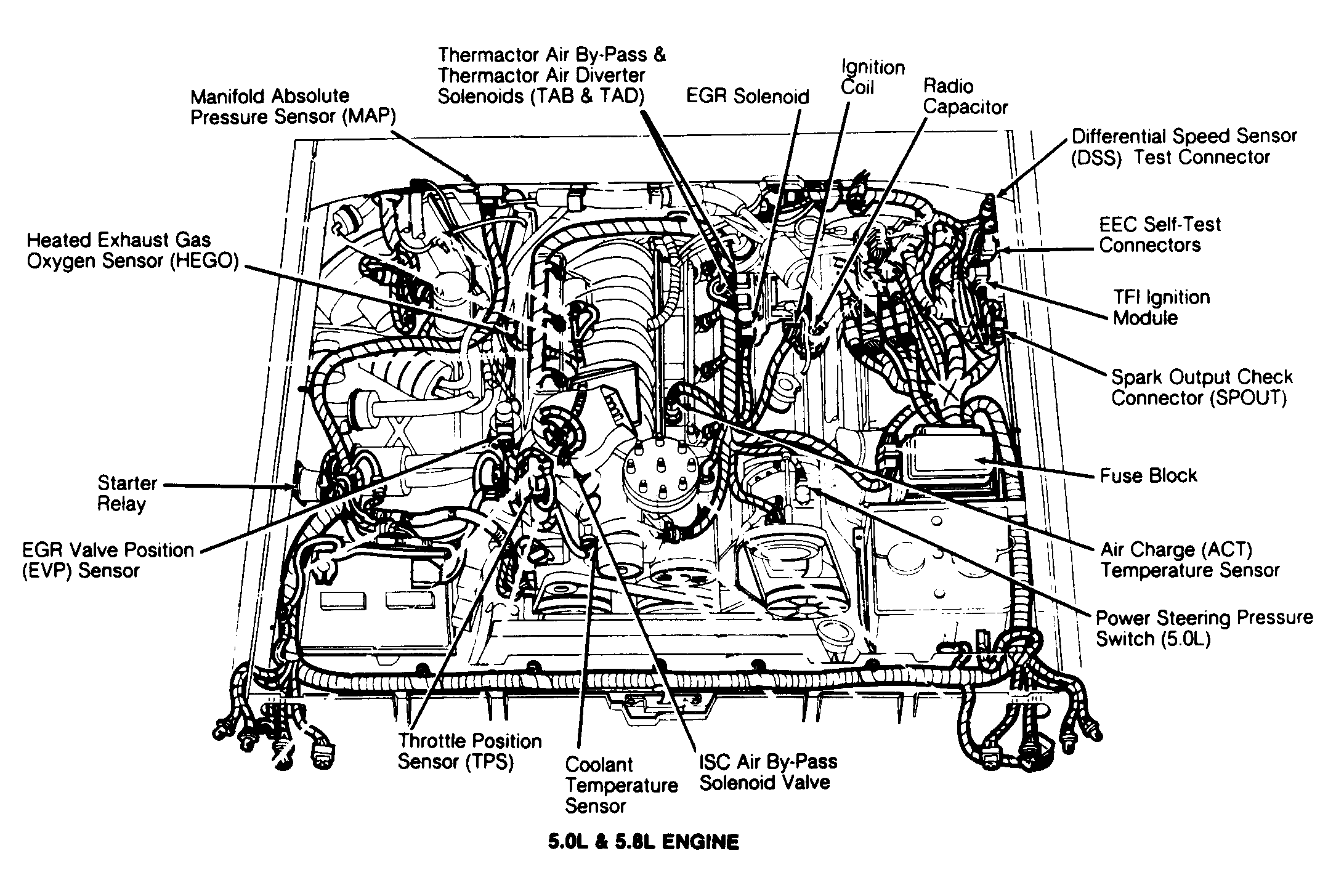

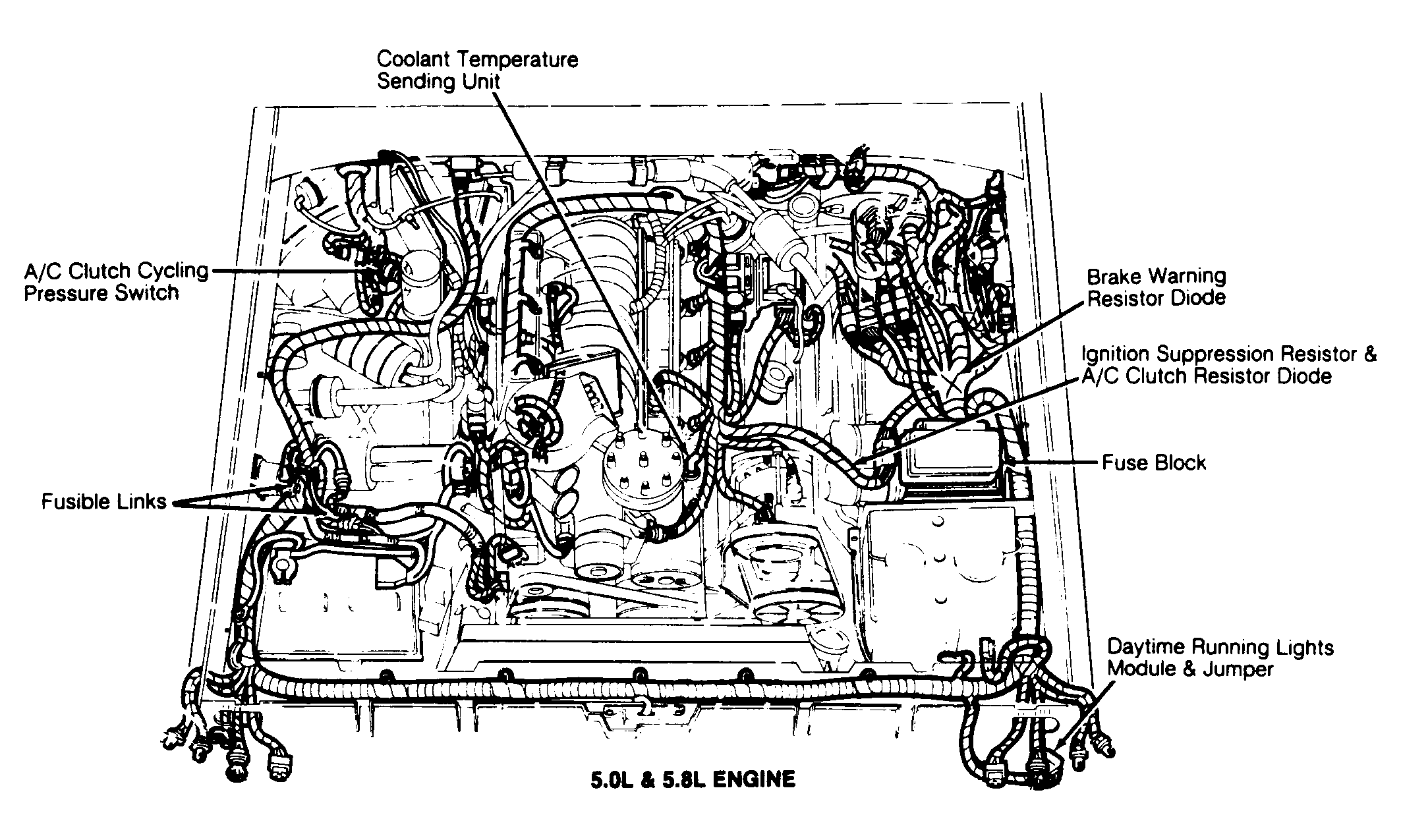

| 5.0L & 5.8L | On left inner fender panel. See Figure & Figure . | ||

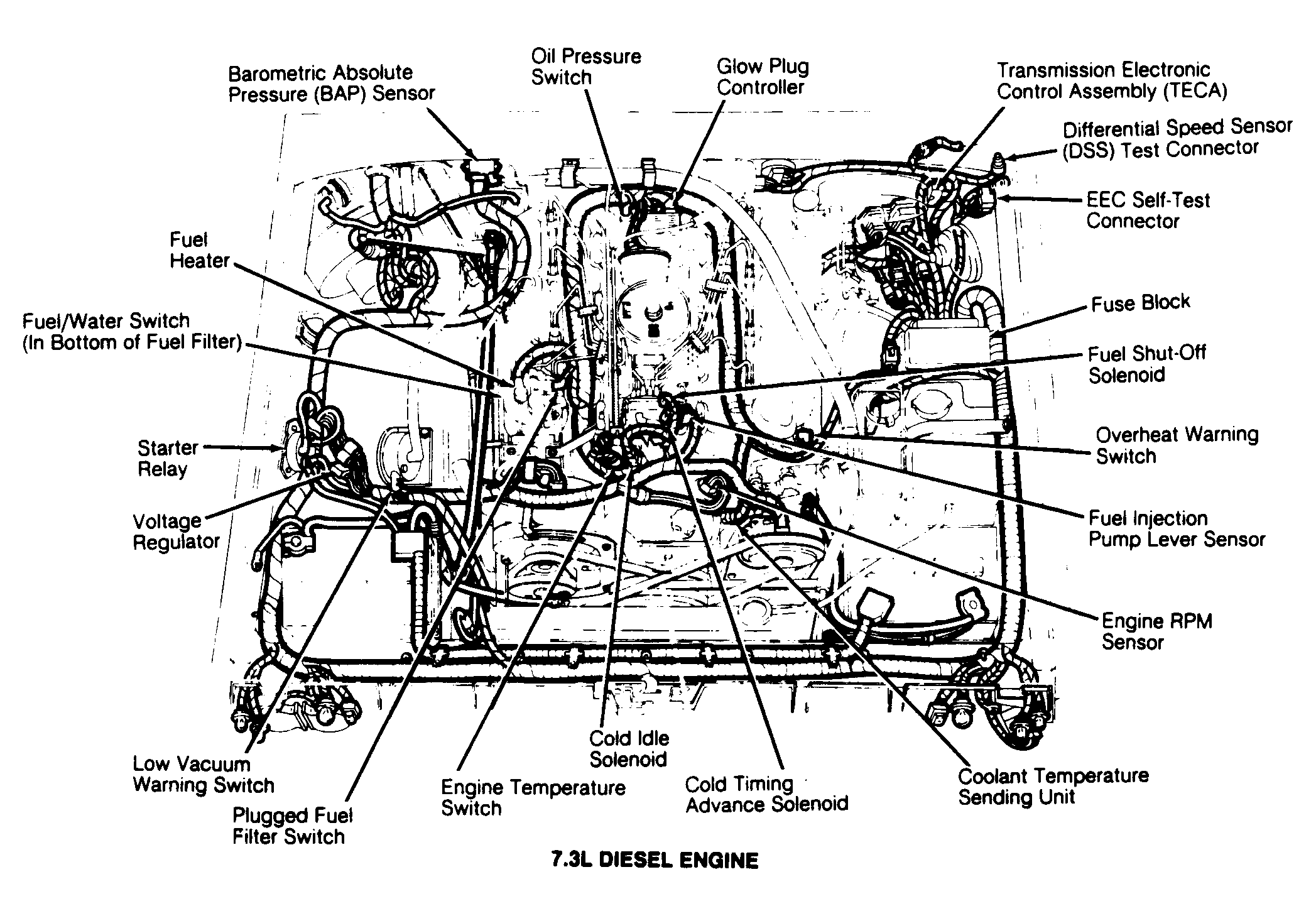

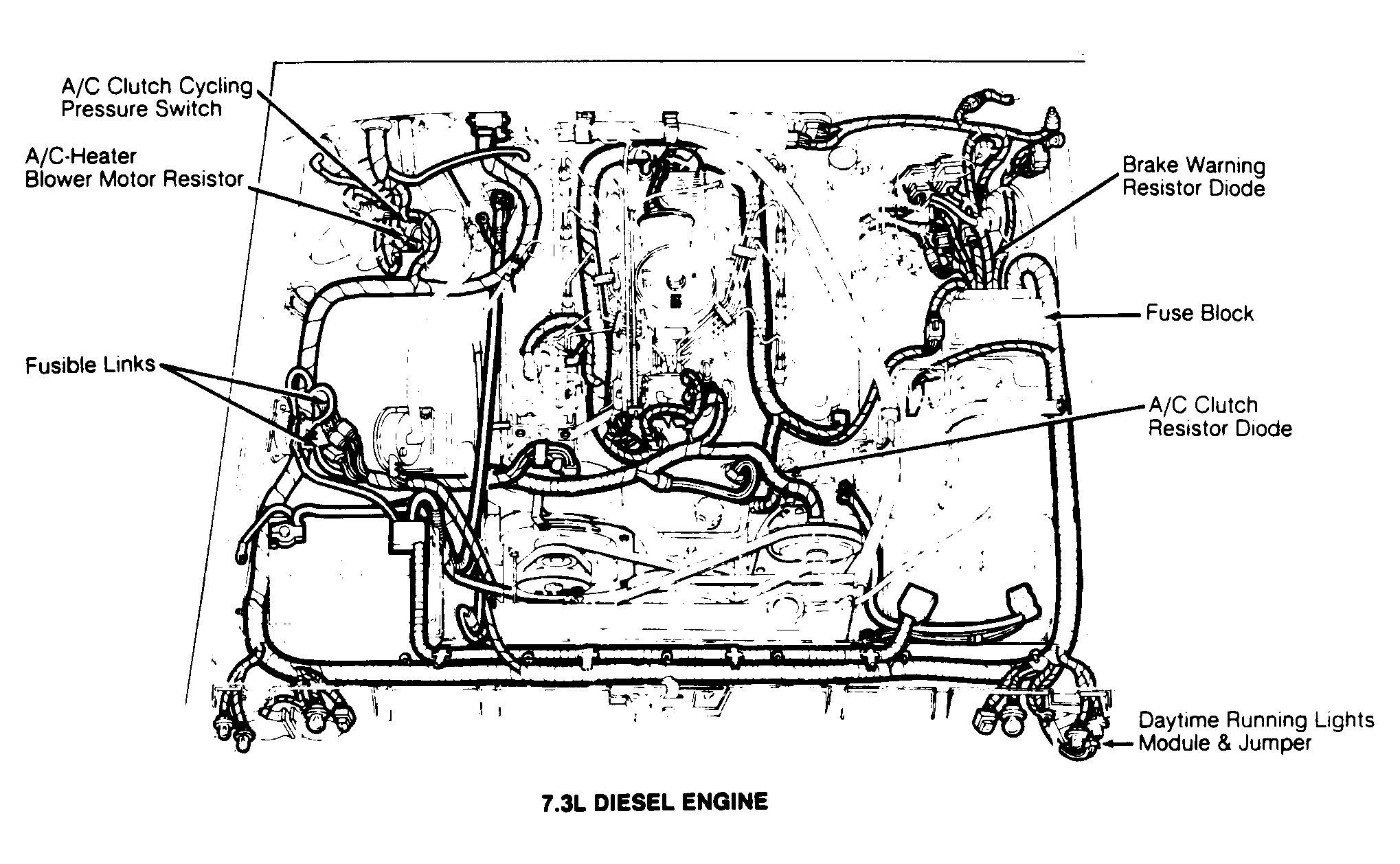

| 7.3L Diesel | On left inner fender panel. See Figure & Figure . | ||

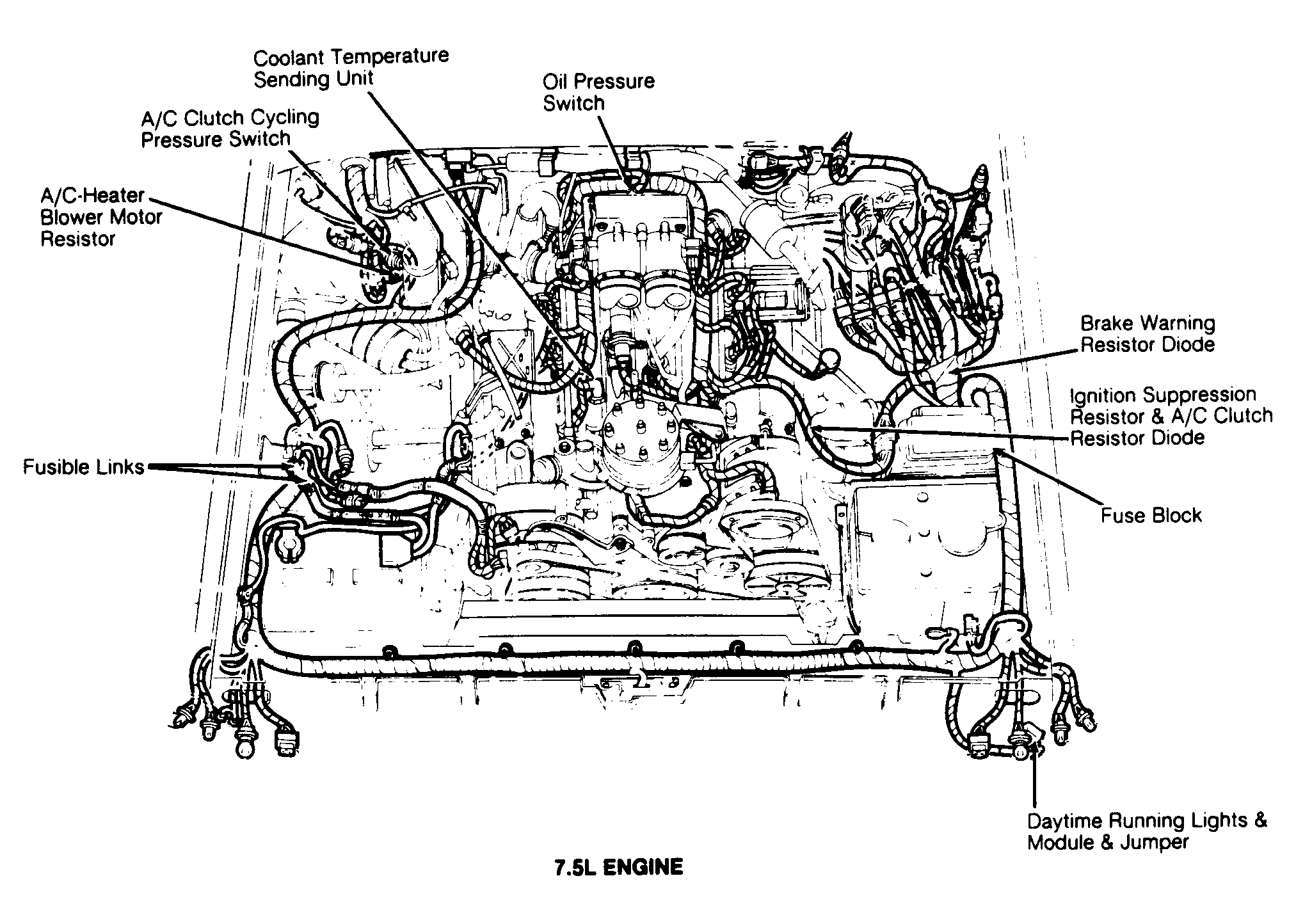

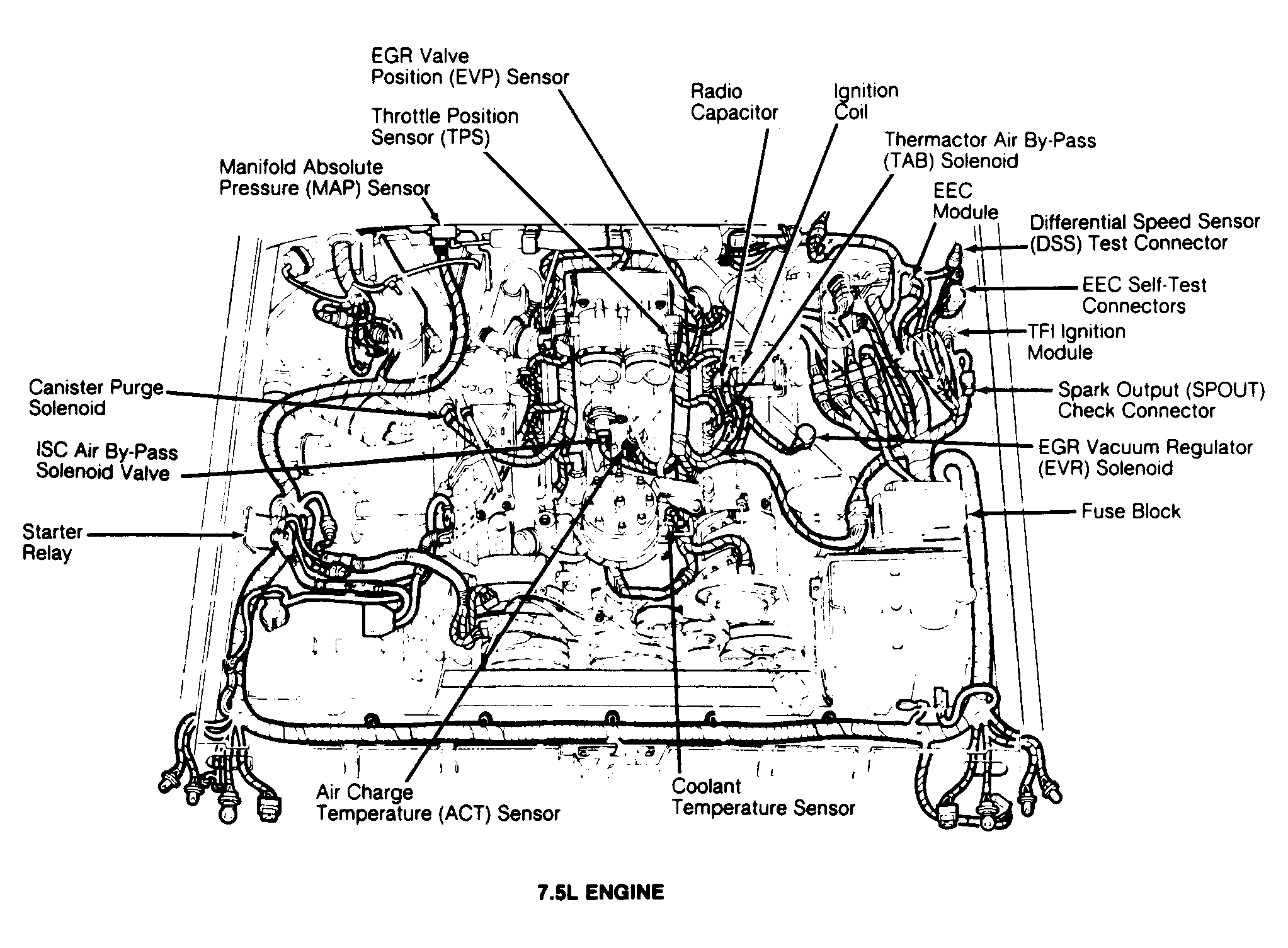

| 7.5L | On left inner fender panel. See Figure & Figure . | ||
| Passenger Compartment | Under dash, left of steering column. | ||
| Fusible Links | |||
| Charging System | |||
| 7.3L (Gray 12 Ga.) | Near starter. | ||
| Except 7.3L (Green 12 Ga.) | Near starter relay. | ||
| EEC Module, EEC Power Relay & Fuel Pump Relay | |||
| Except 7.3L (Dk. Green 12 Ga.) | Near starter relay. | ||
| Glow Plug (Dk. Green 14 Ga.) | In engine bay fuse block. | ||
| Headlights | |||
| 7.3L (Gray 12 Ga.) | Near starter relay. | ||
| Except 7.3L (Dk. Green 12 Ga.) | Near starter relay. | ||
| Ignition Switch | |||
| 7.3L (Gray 12 Ga.) | Near starter relay. | ||
| Except 7.3L (Dk. Green 12 Ga.) | Near starter relay. | ||
| Rear Defrost | |||
| 7.3L (Gray 12 Ga.) | Near starter relay. | ||
| Except 7.3L (Dk. Green 12 Ga.) | Near starter relay. | ||
| Stoplight/Hazard | |||
| 7.3L (Gray 12 Ga.) | Near starter relay. | ||
| Except 7.3L (Dk. Green 12 Ga.) | Near starter relay. | ||
| Trailer Adapter | |||
| 7.3L (Gray 12 Ga.) | Near starter relay. | ||
| Except 7.3L (Dk. Green 12 Ga.) | Near starter relay. | ||
| Transmission Control | |||
| 7.3L (Gray 12 Ga.) | Near starter relay. | ||
| Except 7.3L (Dk. Green 12 Ga.) | Near starter relay. | ||
