Servicing - A/T: Identification

NOTE: Unless otherwise specified, references to Pickup include the F350 Super Duty commercial chassis.

AUTOMATIC TRANSMISSION APPLICATIONS

Model

⁽¹⁾ Transmission

Aerostar, Explorer & Ranger

A4LD

Bronco

AOD & E4OD

Pickup & Van

AOD, C-6 & E4OD

⁽¹⁾	Transmission may be identified by oil pan gasket. See Fig 1-4.

MANUAL TRANSMISSION APPLICATIONS

Model

Transmission

Aerostar, Explorer & Ranger

5-Speed

Mazda M5OD

5-Speed

⁽¹⁾ Mitsubishi FM146

Bronco

4-Speed

Borg-Warner T18

5-Speed

Mazda M5OD

Pickup

4-Speed

Borg-Warner T18

5-Speed ⁽²⁾

GVWR Less Than 8500 Lbs. (3855 kg)

Mazda M5OD

GVWR Greater Than 8500 Lbs. (3855 kg)

ZF S5-42

⁽¹⁾	Used on Ranger models with 2.9L only.

⁽²⁾	Note vehicle Gross Vehicle Weight Rating (GVWR) for identifying transmission application. GVWR is listed on safety compliance label on driver door pillar.

TRANSFER CASE APPLICATIONS

Model

Transfer Case

Aerostar

Dana TC-28

Bronco & Pickup

⁽¹⁾⁽²⁾ Borg-Warner 1356

Explorer & Ranger

⁽¹⁾ Borg-Warner 1354

⁽¹⁾	Available with mechanical or electronic shift.

⁽²⁾	Some F350 Pickups may be equipped with a Power Take-Off PTO) unit.

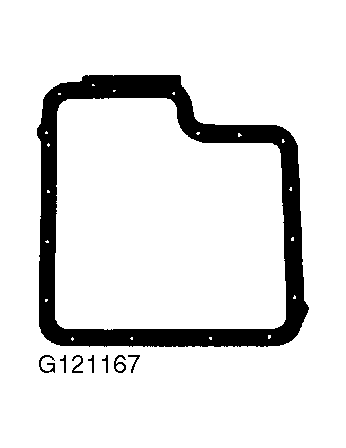

Fig 1: Oil Pan Gasket (AOD) ID

Fig 2: Oil Pan Gasket (A4LD) ID

Fig 3: Oil Pan Gasket (C-6) ID

Fig 4: Oil Pan Gasket (E4OD) ID
