Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|

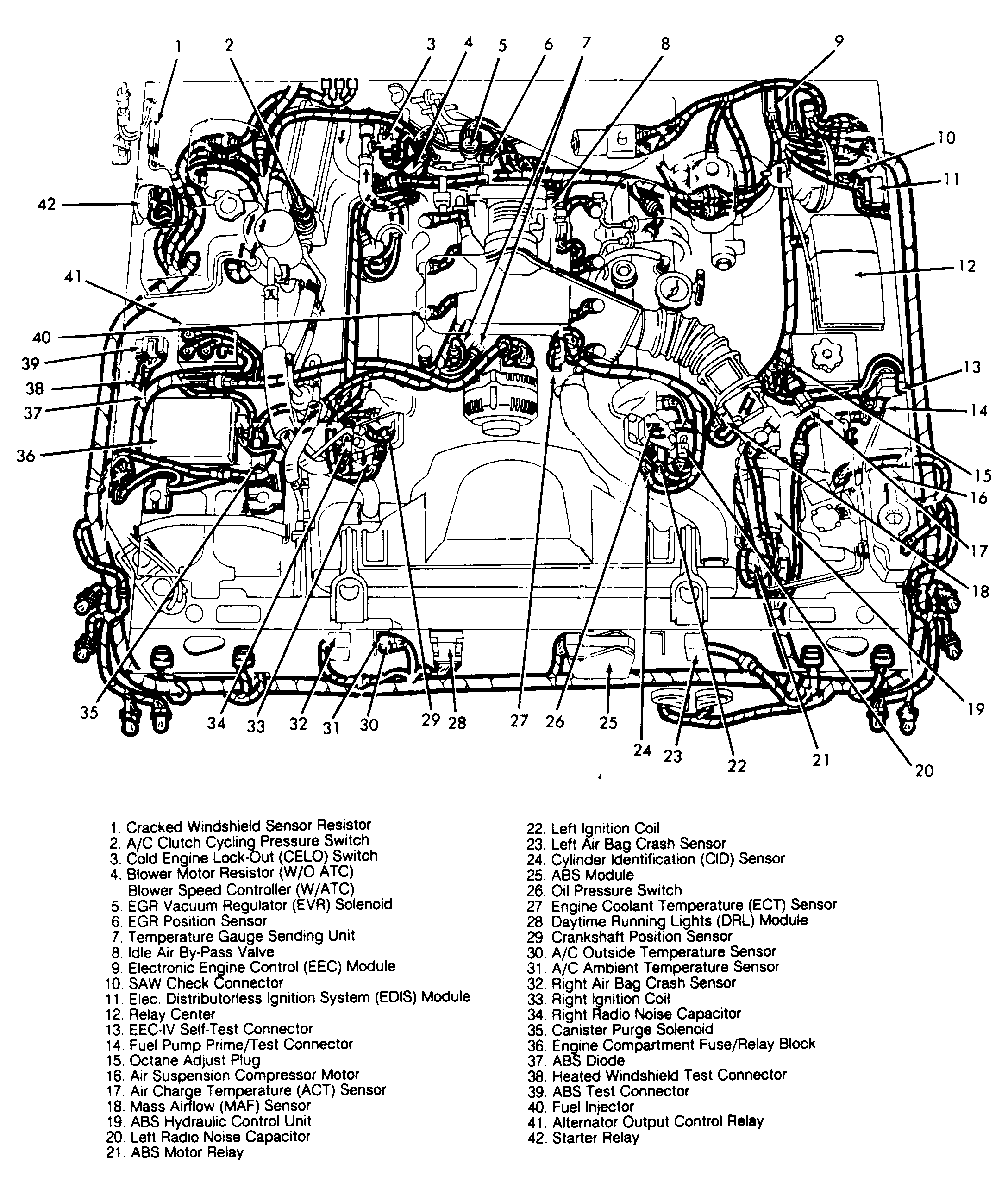

| Engine Comp. Fuse/Relay Block | To rear of battery. See Figure . | ||
| Fusible Links | |||
| "A" (Yellow) | At engine bay fuse/relay block. | ||
| "B" (Red) | At alternator output control relay. | ||
| "D" (Gray) | |||
| W/Heated Windshield | At alternator output control relay. | ||
| W/O Heated Windshield | At engine bay fuse/relay block. | ||
| Passenger Compartment Fuse Block | Behind left end of instrument panel. See Figure . | ||
| Relay Center | On left front inner fender panel. See Figure . | ||
