Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Hydraulic Control Unit | Below air cleaner assembly. See Figure . |
| ABS Module | On front of upper radiator support. See Figure . |

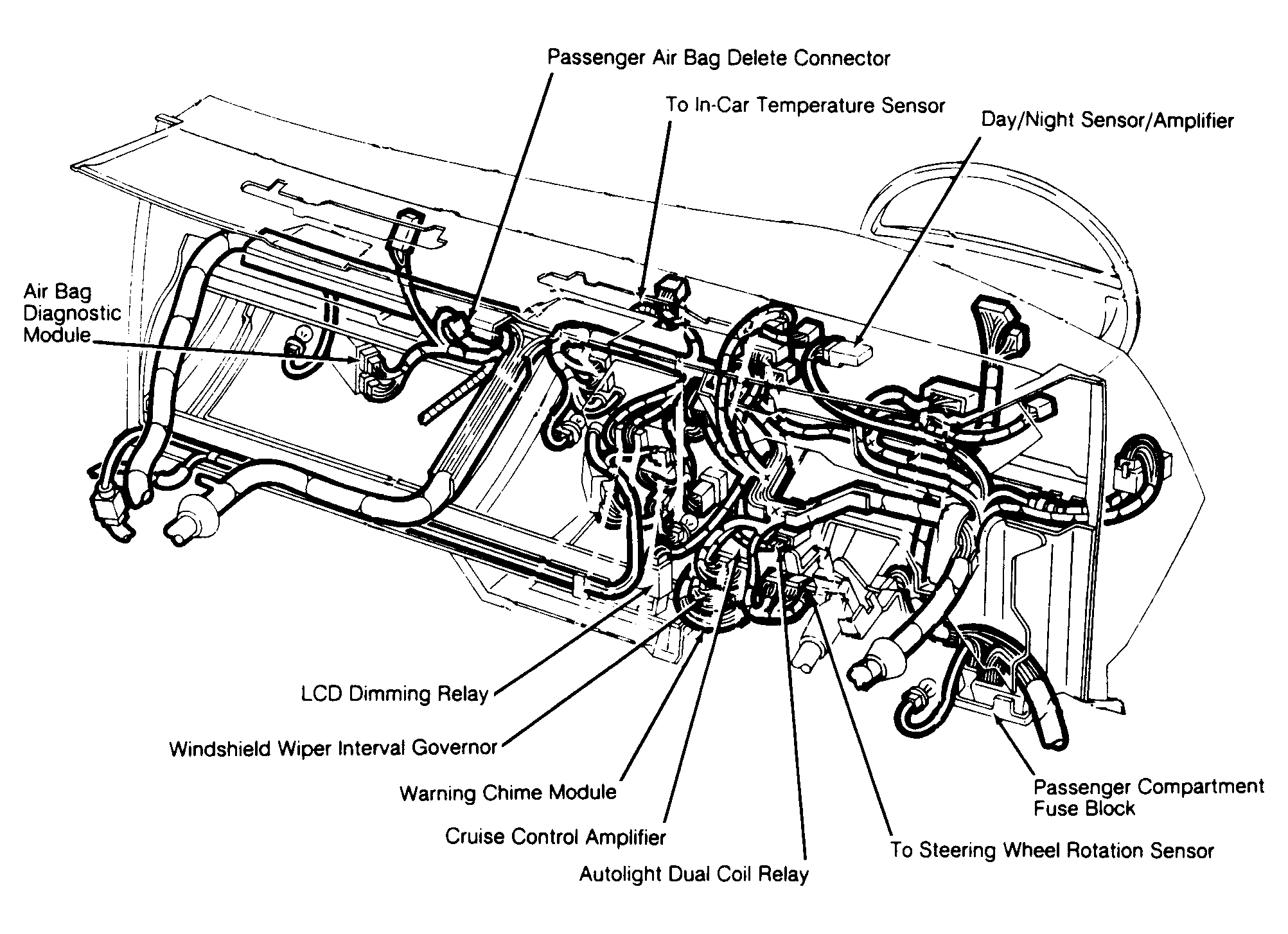

| Air Bag Diagnostic Module | Behind instrument panel, above glove box. See Figure . |
| Air Suspension Control Module | In trunk, behind rear seat, under right end of rear shelf. |
| Blower Speed Controller (W/ATC) | In engine bay, on side of evaporator case. See Figure . |
| Daytime Running Lights (DRL) Module | On upper radiator support, to right of center. See Figure . |
| Electronic Distributorless Ignition System (EDIS) Module | On left rear corner of engine bay. See Figure . |
| Elec. Engine Control (EEC) Module | On left rear corner of engine bay. See Figure . |
| Electronic Variable Orifice (EVO) Steering Module | In trunk, behind rear seat, under right end of rear shelf. |
| Heated Windshield Module | Behind left end of instrument panel. |
| Illuminated Entry Module | Behind right side of dash, above kick panel. |
| Keyless Entry Module | Behind right side of dash, above kick panel. |
| Warning Chime Module | Behind center of instrument panel, to right of steering column. See Figure . |
