Remote Keyless Entry Systems: Description: Notes
WARNING:
Vehicles are equipped with air bag supplemental restraint system. Before attempting ANY repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article.

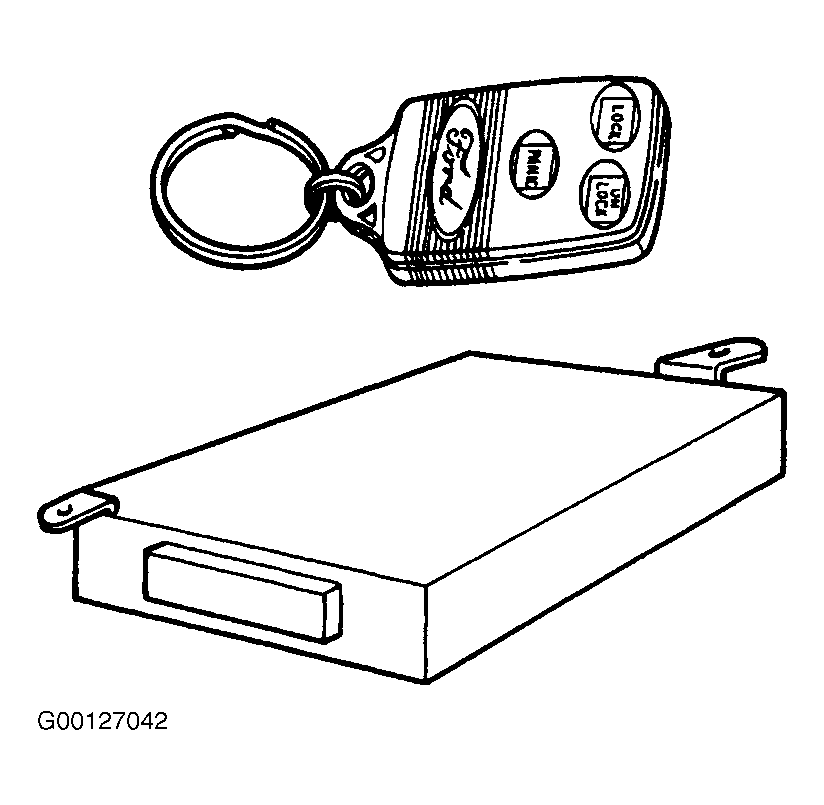

The two main components of the Remote Convenience System are the Remote Convenience Module with Integral Receiver and the hand-held transmitter. See Fig 1 . This system allows the driver to perform the following functions; lock or unlock driver's or all doors, lock sliding door, activate or deactivate the Anti-Theft System, turn on interior lamps by lifting either front door handle or by using the remote transmitter.
The electronic remote entry module performs the following functions:
- Unlocking driver's door
- Unlocking all doors
- Sliding door memory lock
- Locking all doors
- Arming and disarming the factory-installed FORD Anti-Theft system
- Turning on interior lamps after either front door handle is lifted
- Turning on interior lamps when using the transmitter(s)
- Activating and deactivating a Personal Security feature which sounds the horn and flashes the exterior parking lamps and headlamps.
