Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | Behind right side of dash. | |
| Anti-Theft Module | Behind left side "B" pillar. | |
| Daytime Running Lights (DRL) Module | ||
| 7.5L | On front center of engine bay, behind grille. See Figure. | |
| 7.3L Diesel | On front center of engine bay, behind grille. See Figure. | |
| Elec. Engine Control (EEC) Module | ||

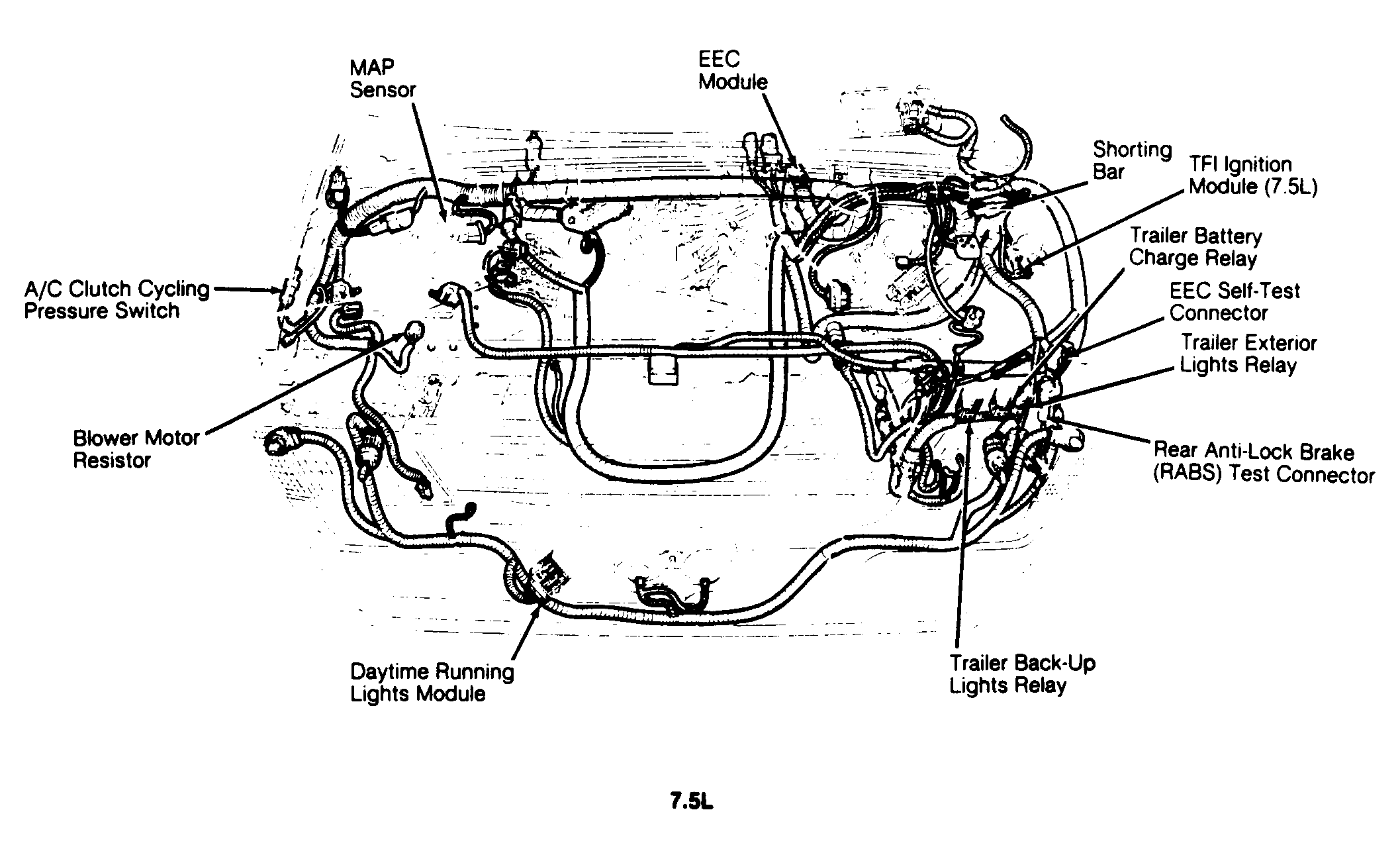

| 7.5L | On left side of firewall, near master cylinder. See Figure. | |

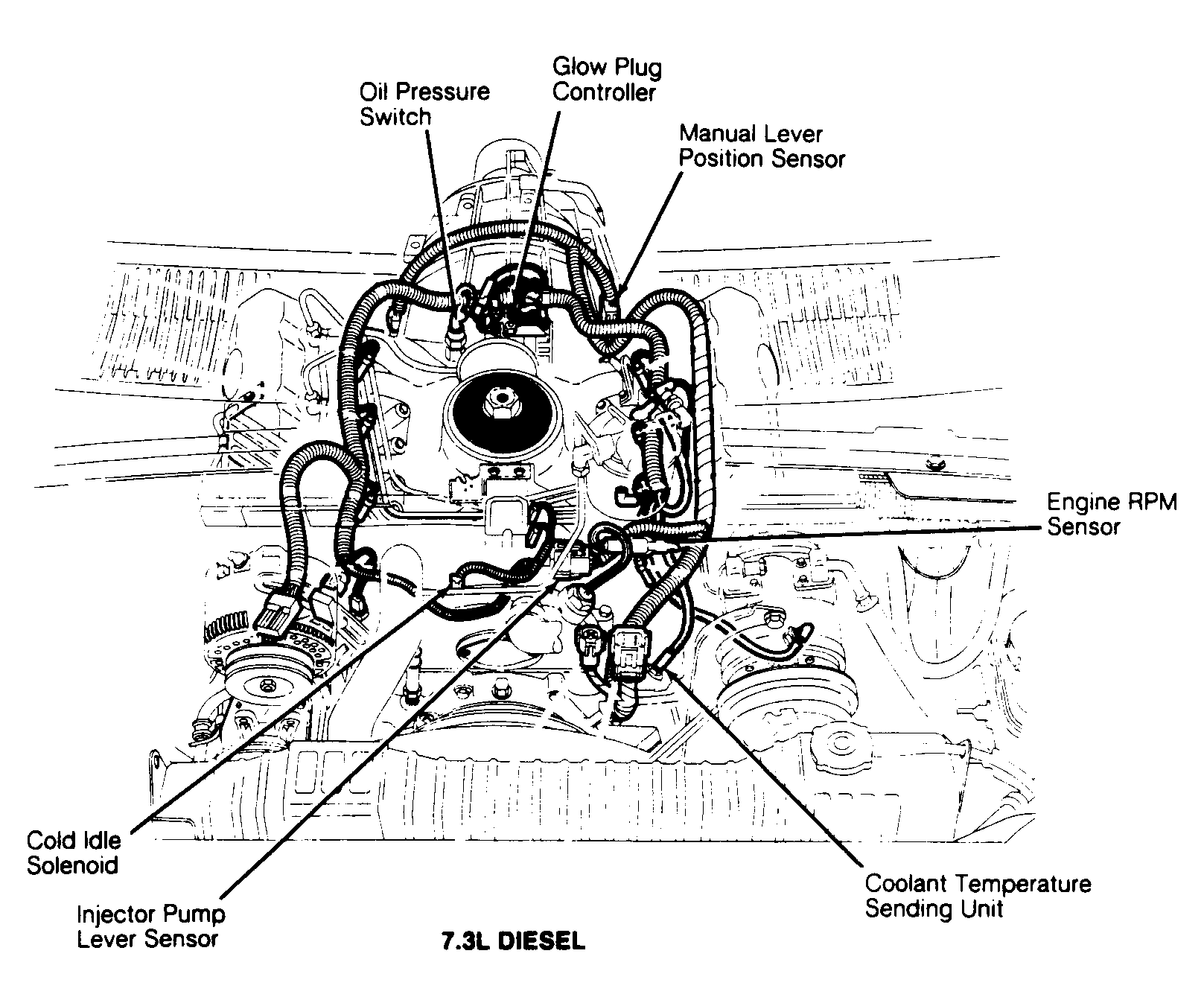

| Glow Plug Controller (7.3L Diesel) | On top rear center of engine. See Figure. | |
| Illuminated Entry Module | Behind left B pillar. | |
| Memory Lock Module | Behind left B pillar. | |
| Programmable Speedometer/Odometer Module | Behind left side of dash. | |
| Remote Convenience Module | Behind left B pillar. | |
| TFI Ignition Module (7.5L) | On left rear of engine bay. See Figure. | |

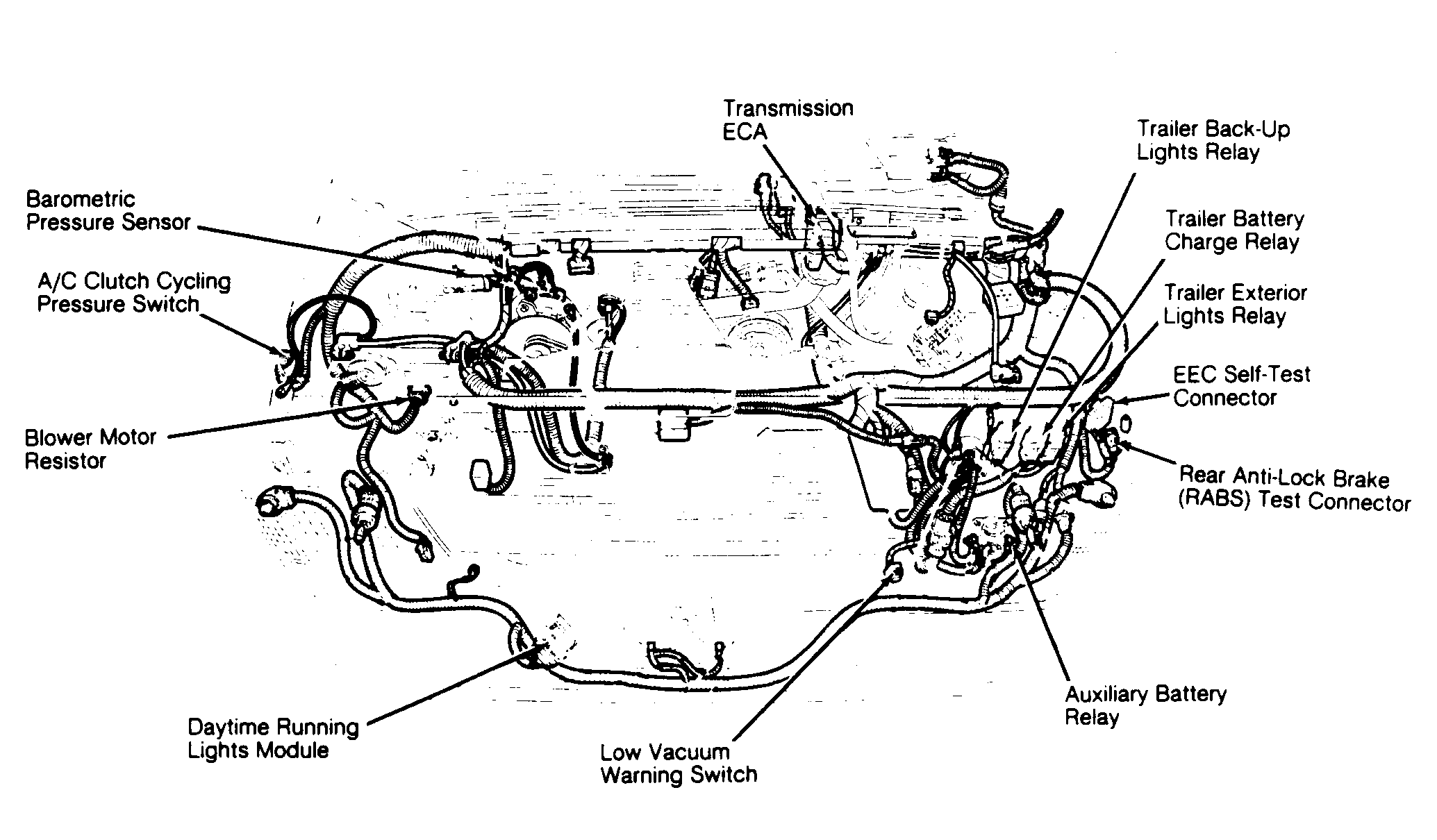

| Transmission ECA (7.3L Diesel) | On left side of firewall, near master cylinder. See Figure. | |
| Warning Chime Module | Under dash, behind fuse block bracket. | |
| Warning Light Module (7.3L) | Behind left side of dash. | |
| Windshield Wiper Module | Behind right side of dash. | |
