Diagnostic Trouble Code Reference Charts (3-Digit)

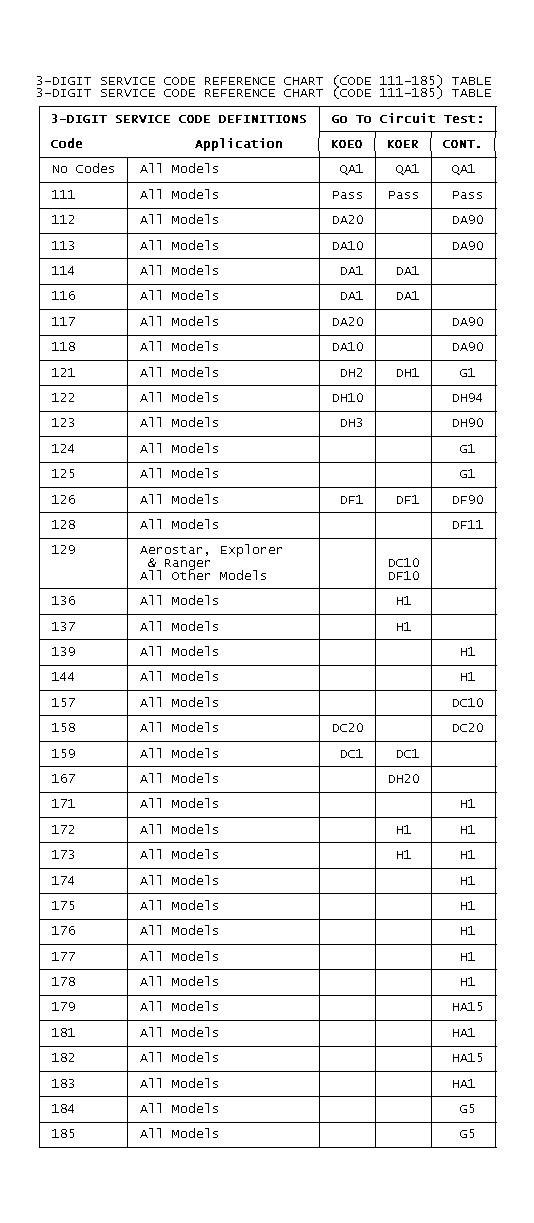

Fig 1: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODE 111-185)

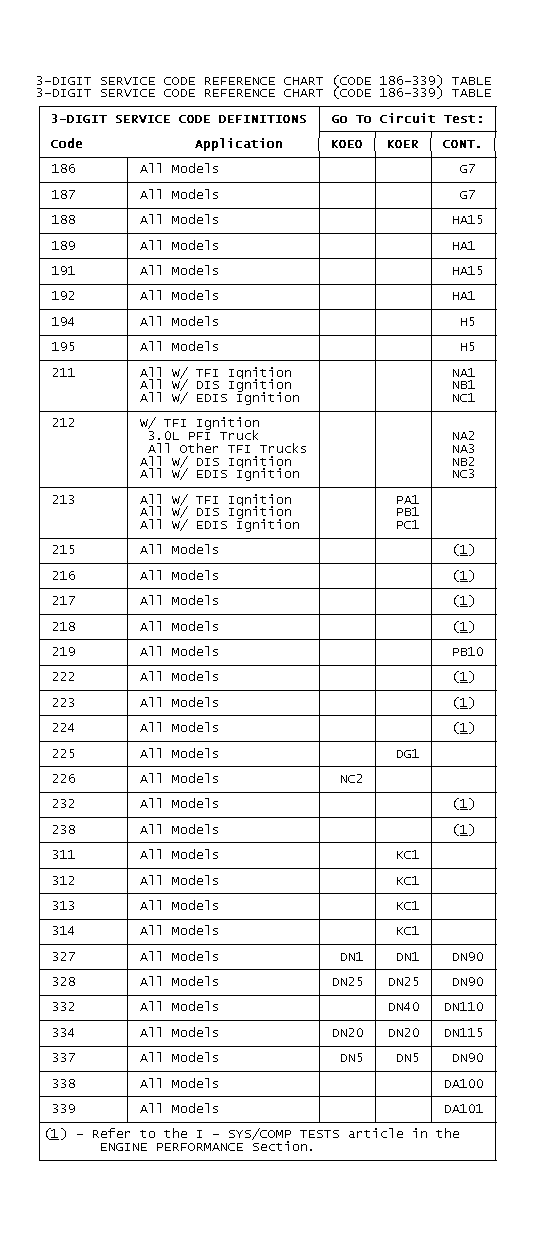

Fig 2: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODE 186-339)

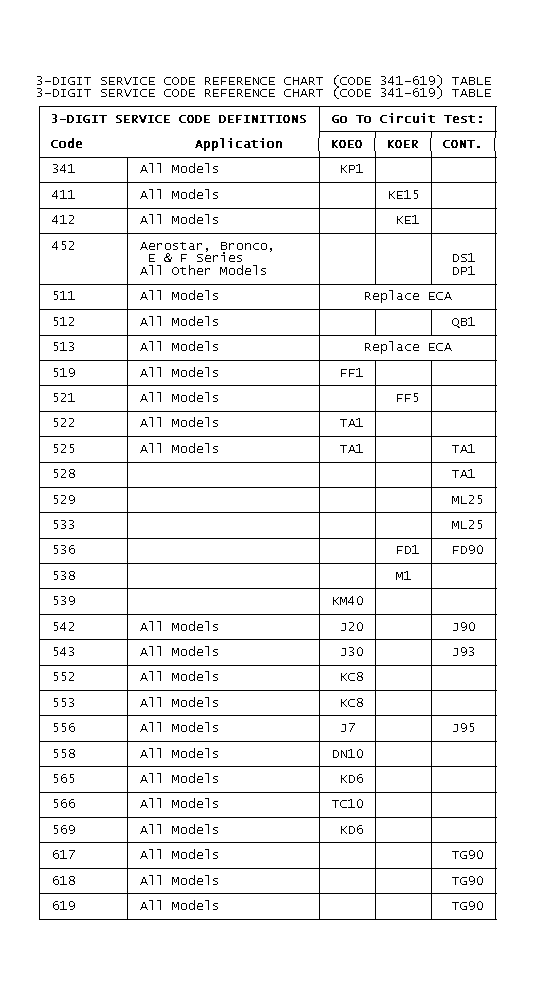

Fig 3: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODE 341-619)

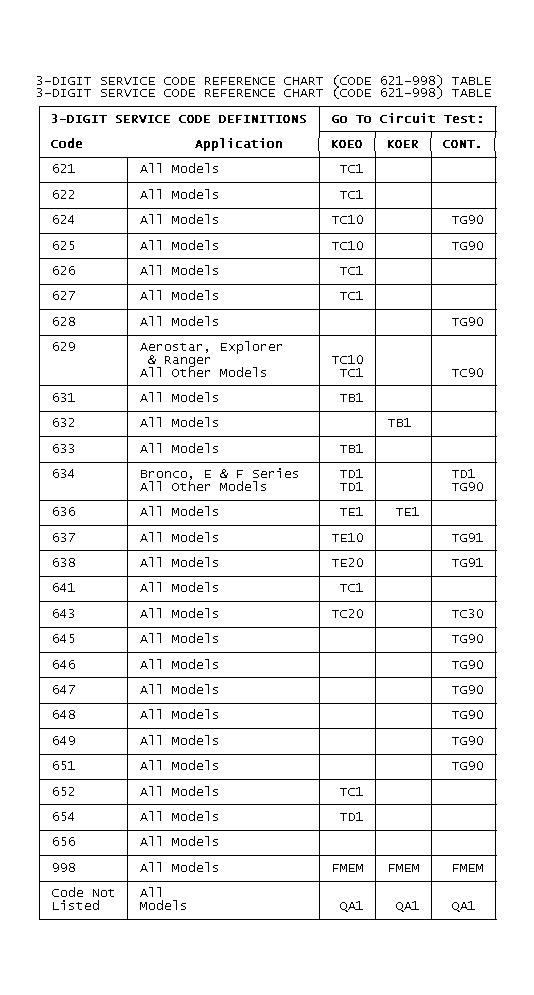

Fig 4: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODE 621-998)
