Coolant Temperature Sensor/Switch (For Computer): Locations

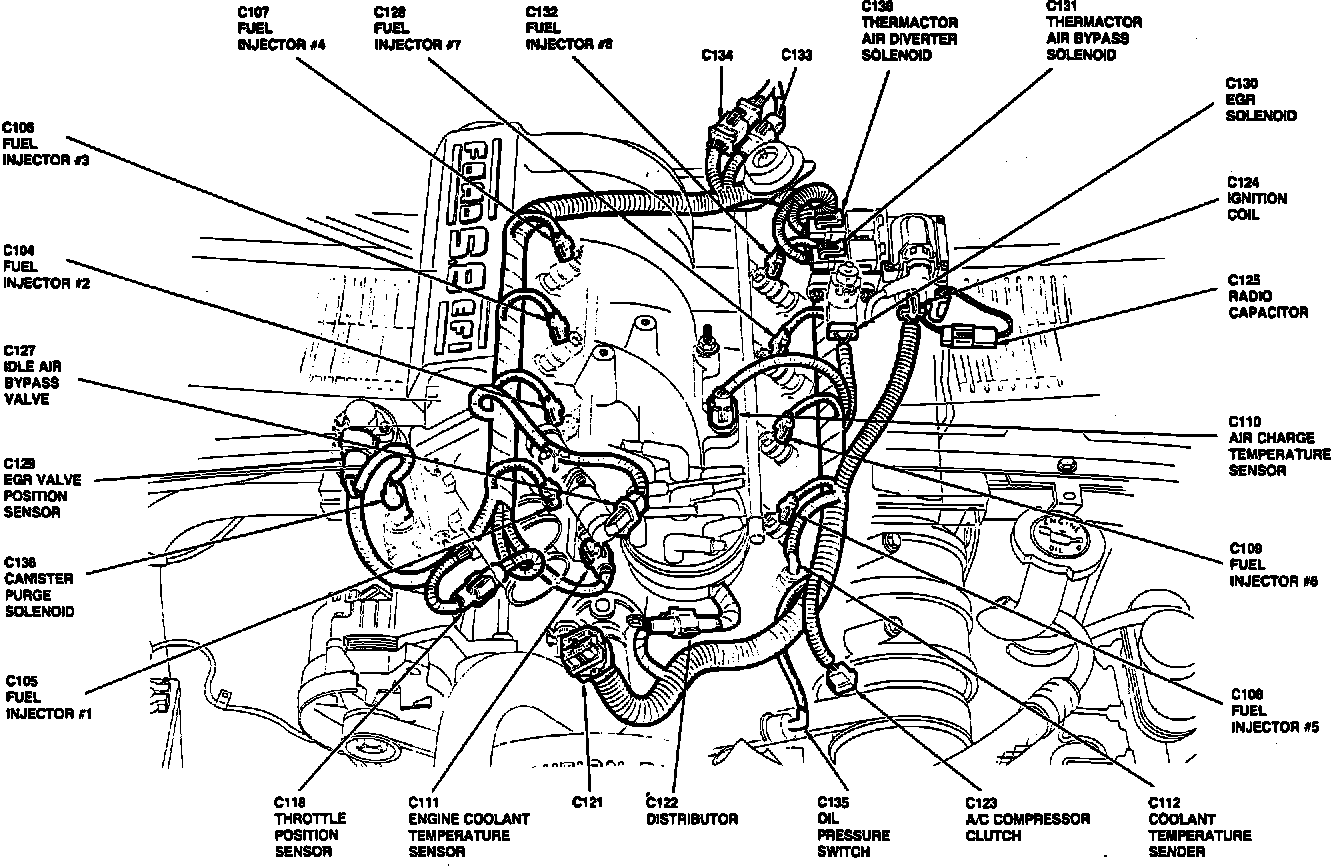

Engine Component Locations.:

Lower Left Of Engine

Applicable to: 1992 5.0L/V8-302

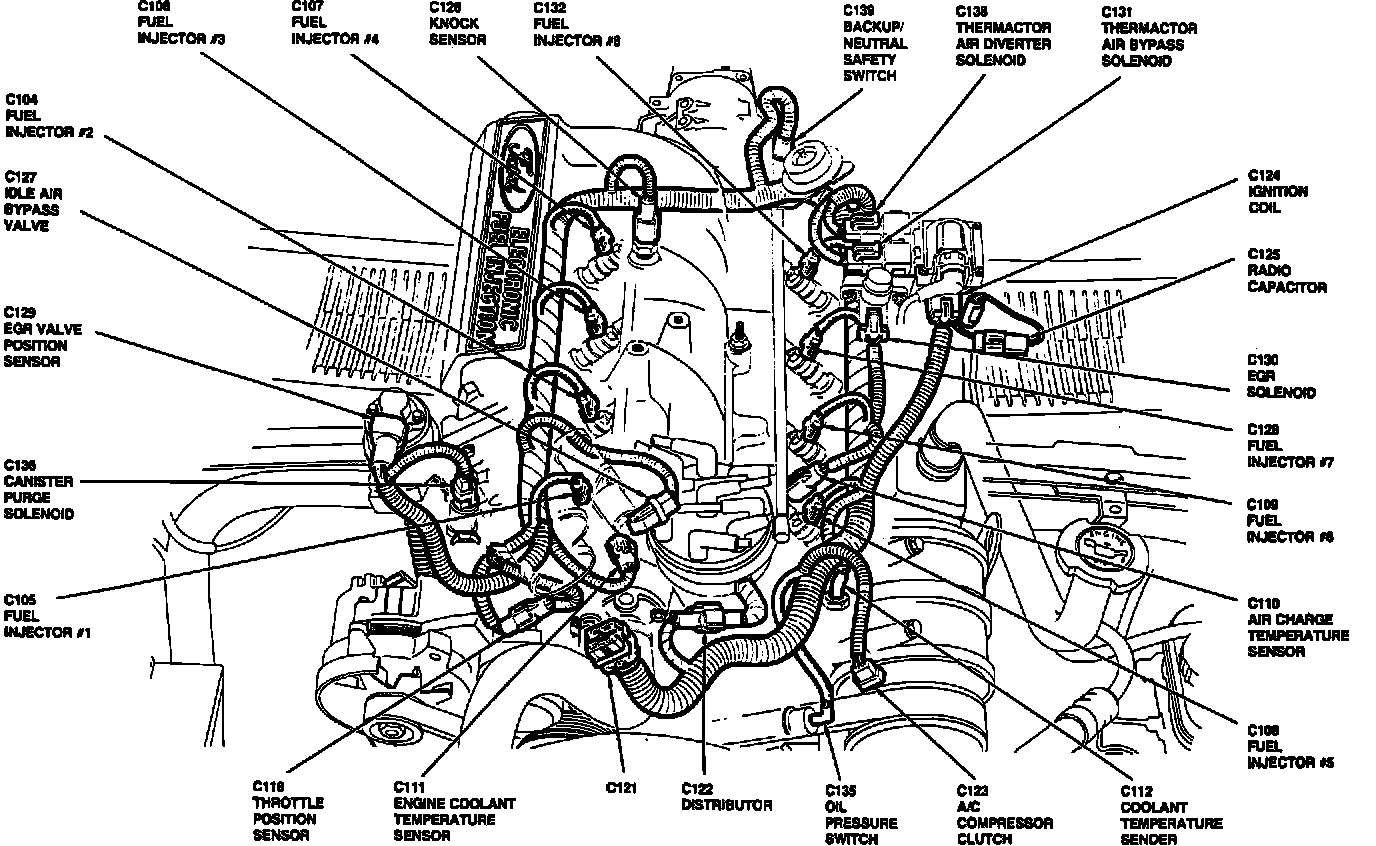

Engine Component Locations.:

Lower Left Of Engine

Applicable to: 1992 5.8L/V8-351

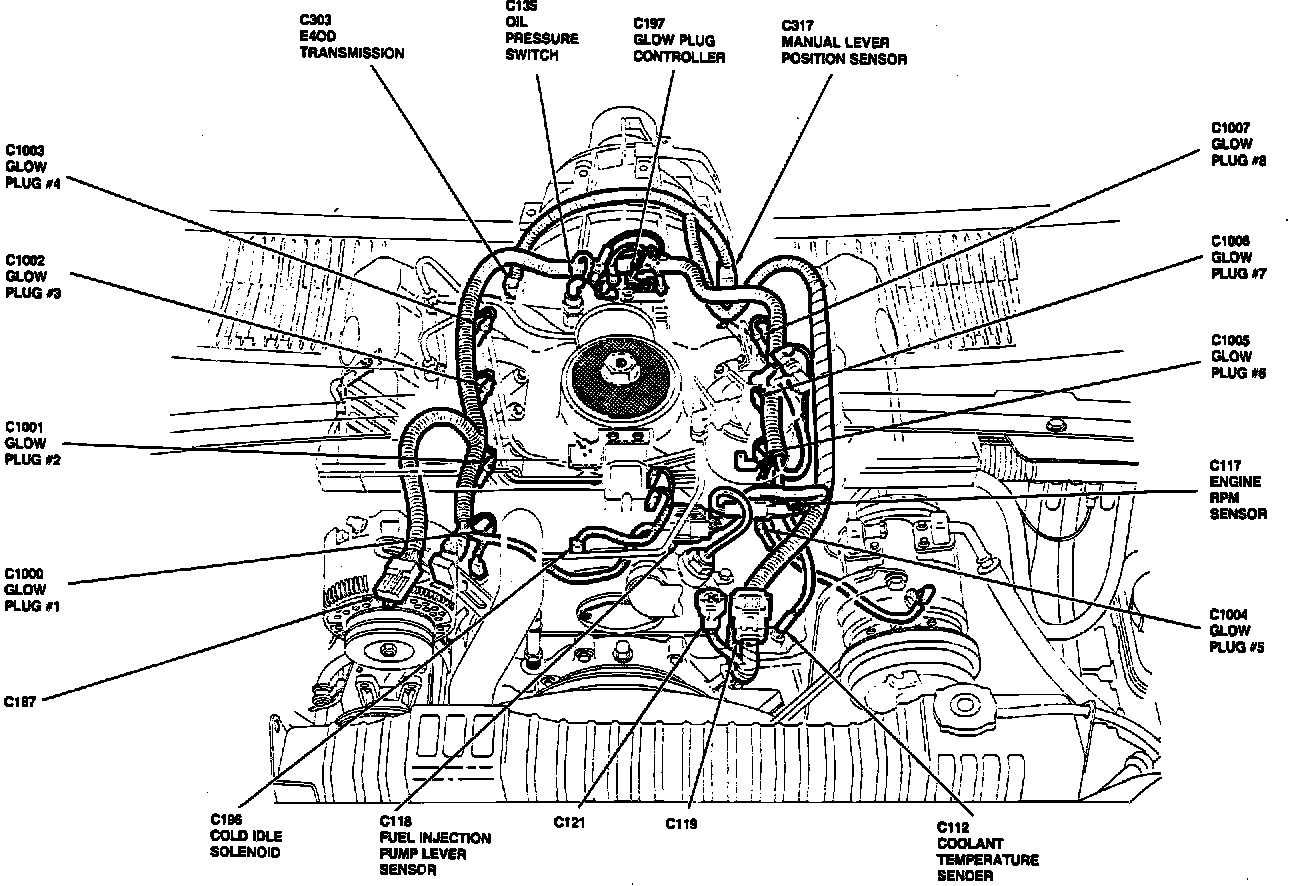

Engine Component Locations.:

Lower Left Of Engine

Applicable to: 1992 7.3L/V8-445

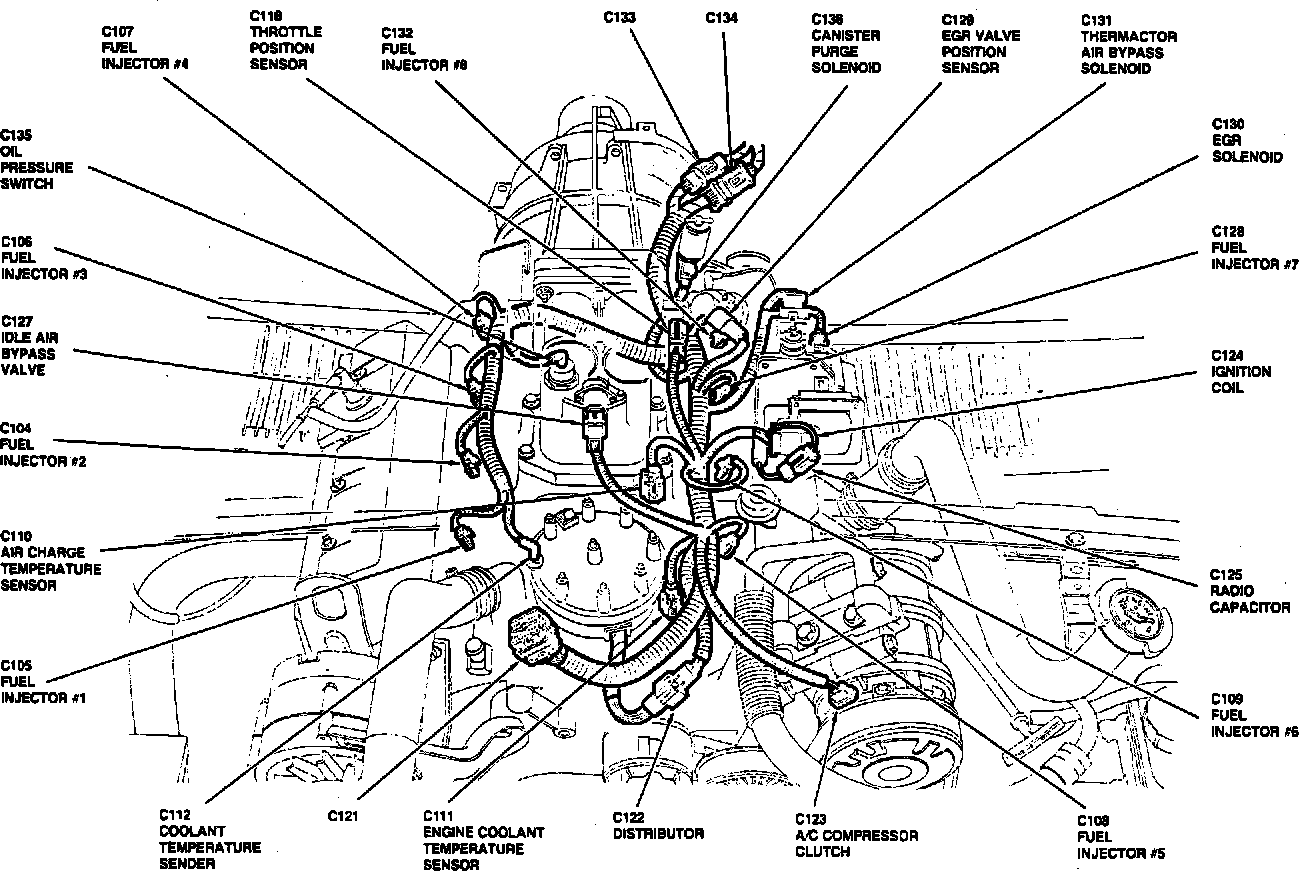

Engine Component Locations.:

Lower Left Of Engine

Applicable to: 1992 7.5L/V8-460
