Wiper Control Module: Locations

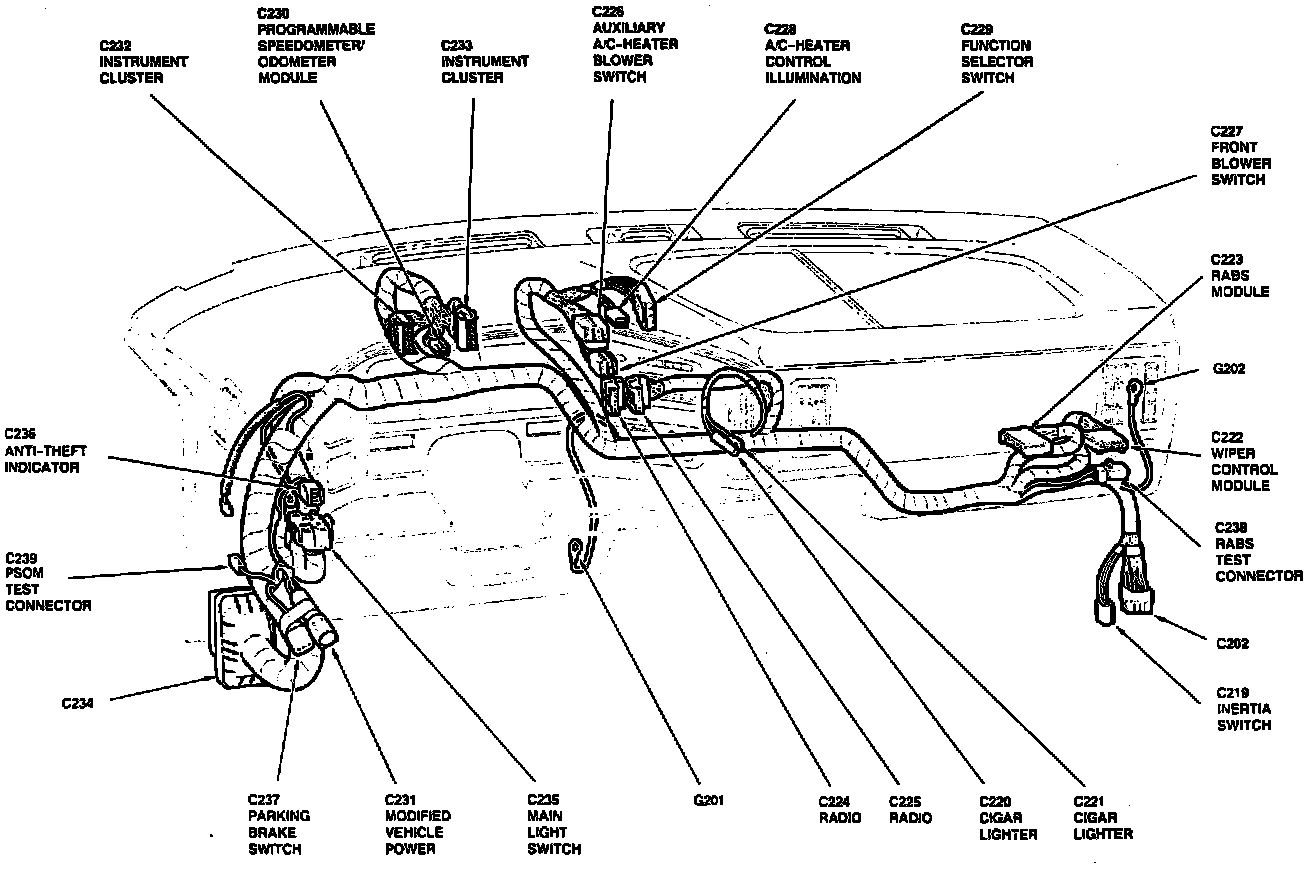

Instrument Panel Component Locations.:

Behind RH Side Of I/P

Applicable to: 1992
