Transmission Disassembly: Notes

NOTE: Disassembly procedures are listed by main components. Disassemble in order shown. To identify components, see Fig 1.

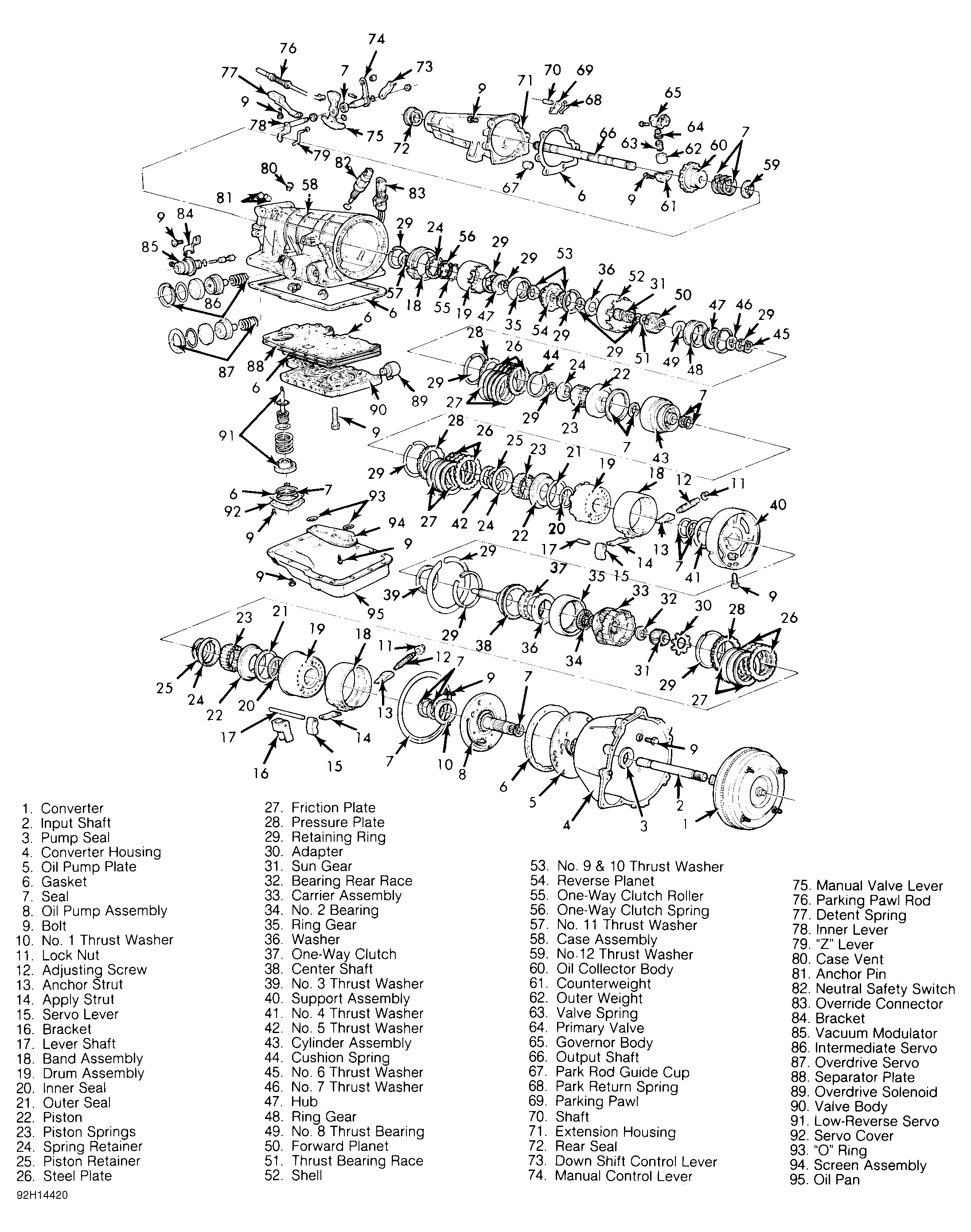

Fig 1: Exploded View of A4LD Transmission
G92H14420Courtesy of FORD MOTOR CO.
