Crankshaft Position Sensor: Service and Repair

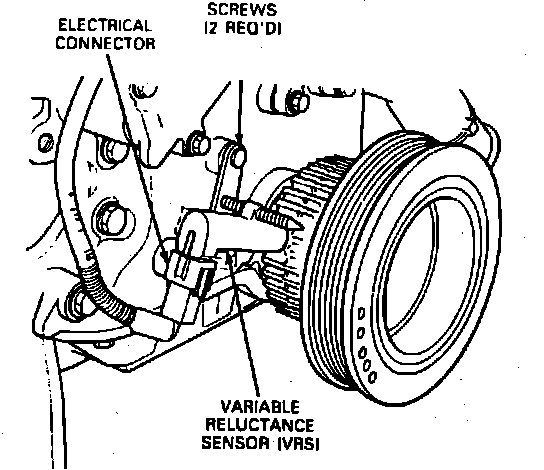

Variable Reluctance (Crankshaft Position) Sensor:

REMOVAL:

1. Disconnect the negative battery cable.
2. Disconnect the sensor electrical connector from the wiring harness.
3. Remove the sensor mounting bolts and remove the sensor.


INSTALLATION:

1. Position the sensor assembly on the engine.
2. Install the two sensor attaching bolts and tighten to 80-106 in lb (9-12 Nm).
3. Route the sensor wiring harness and connect the electrical connector to the sensor.
4. Connect the negative battery cable.
