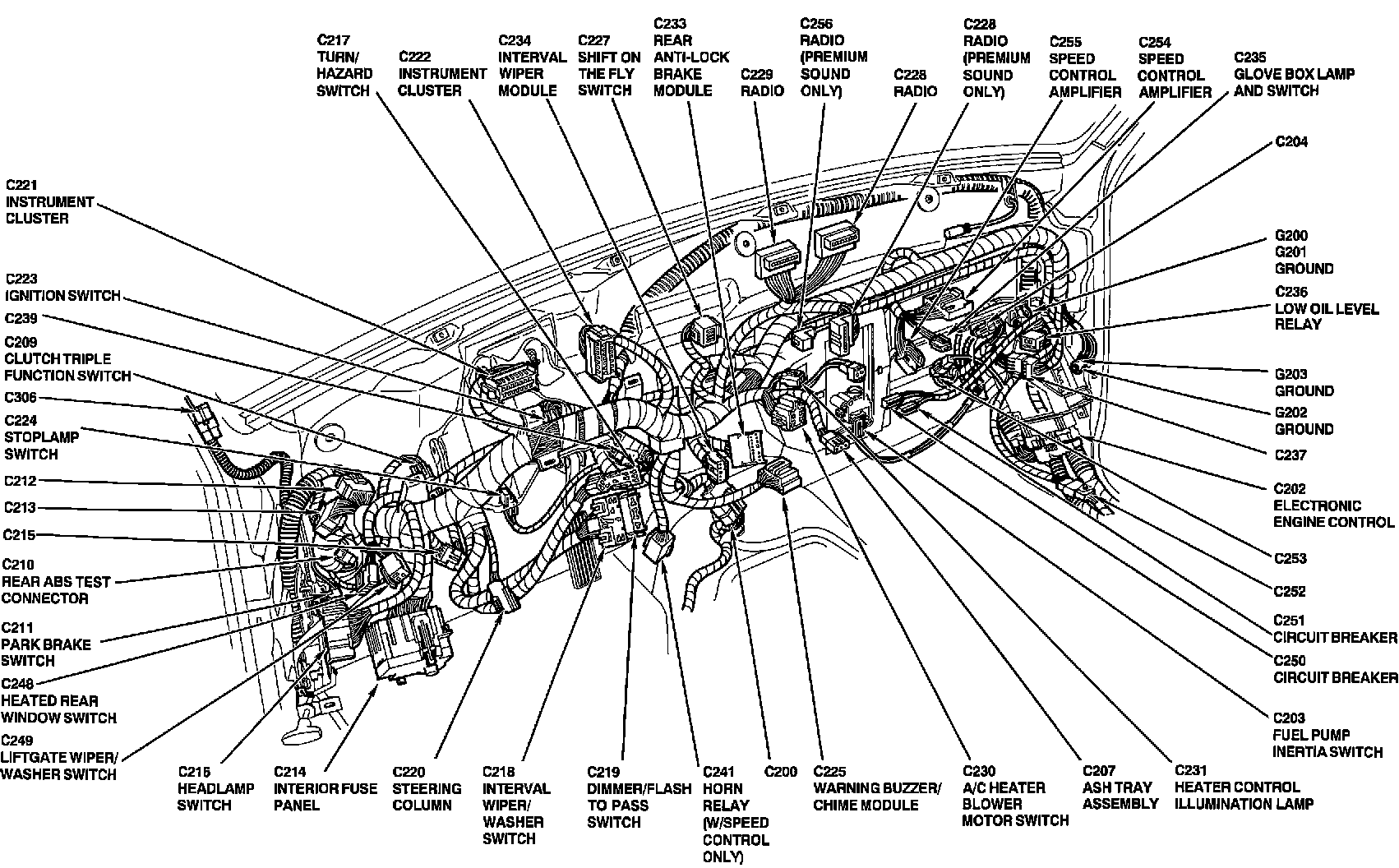

Instrument Panel View

Component Location:

A/C-HEATER BLOWER MOTOR SWITCH
ASHTRAY ASSEMBLY
CIRCUIT BREAKER
CLUTCH TRIPLE FUNCTION SWITCH
DIMMER/FLASH TO PASS SWITCH
ELECTRONIC ENGINE CONTROL
FUEL PUMP INERTIA SWITCH
GLOVE BOX LAMP AND SWITCH
HEADLAMP SWITCH
HEATED REAR WINDOW SWITCH
HEATER CONTROL LAMP ILLUMINATION
HORN RELAY (W/SPEED CONTROL ONLY)
IGNITION SWITCH
INSTRUMENT CLUSTER
INTERIOR FUSE PANEL
INTERVAL WIPER MODULE
LIFTGATE WIPER/WASHER SWITCH
LOW OIL LEVEL RELAY
PARK BRAKE SWITCH
RADIO
REAR ANTI-LOCK BRAKE MODULE
SHIFT ON THE FLY SWITCH
SPEED CONTROL AMPLIFIER
STEERING COLUMN
STOP LAMP SWITCH
TURN/HAZARD SWITCH
WARNING BUZZER MODULE
WARNING CHIME MODULE
