Control Module, Transfer Case

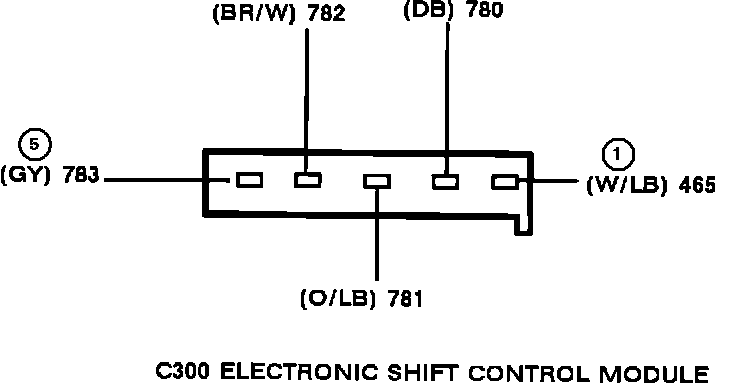

Fig. 7 Five-wire Pigtail Harness Connector (Electronic Shift) C300:

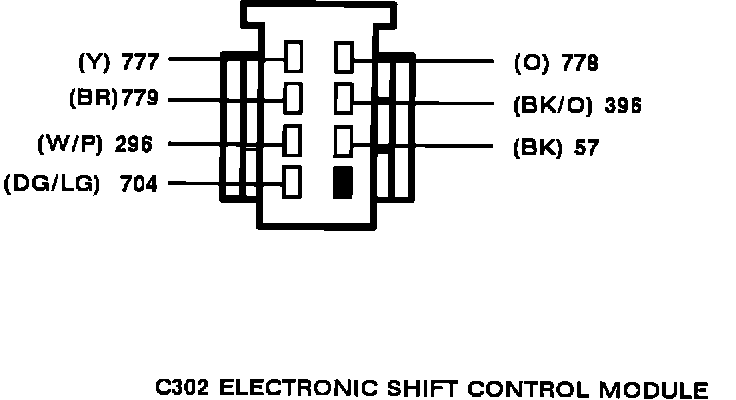

Eight-wire Pigtail Harness Connector (Electronic Shift) C302:

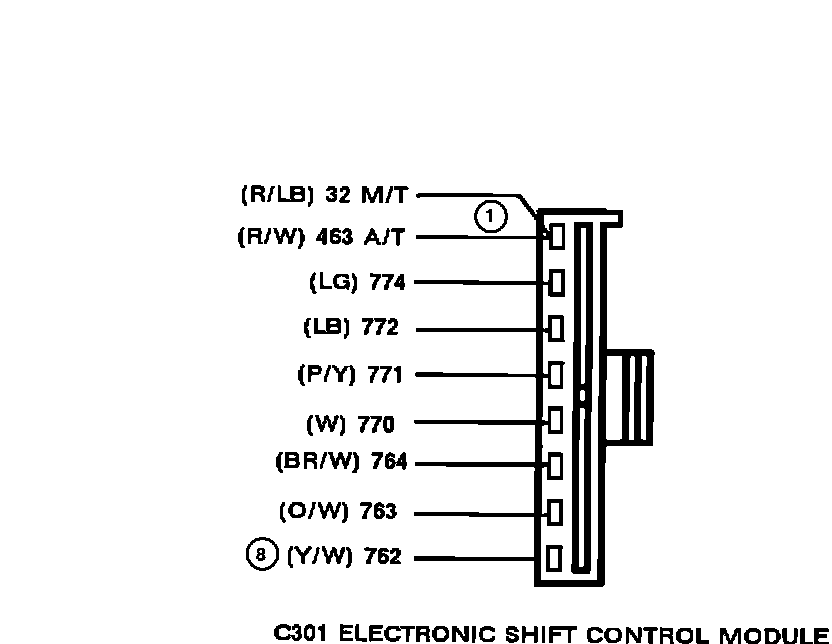

Eight-wire Pigtail Harness Connector (Electronic Shift) C301:
