Ford
>>
1992
>>
Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse
>>
Fuse 6
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Fuse 6

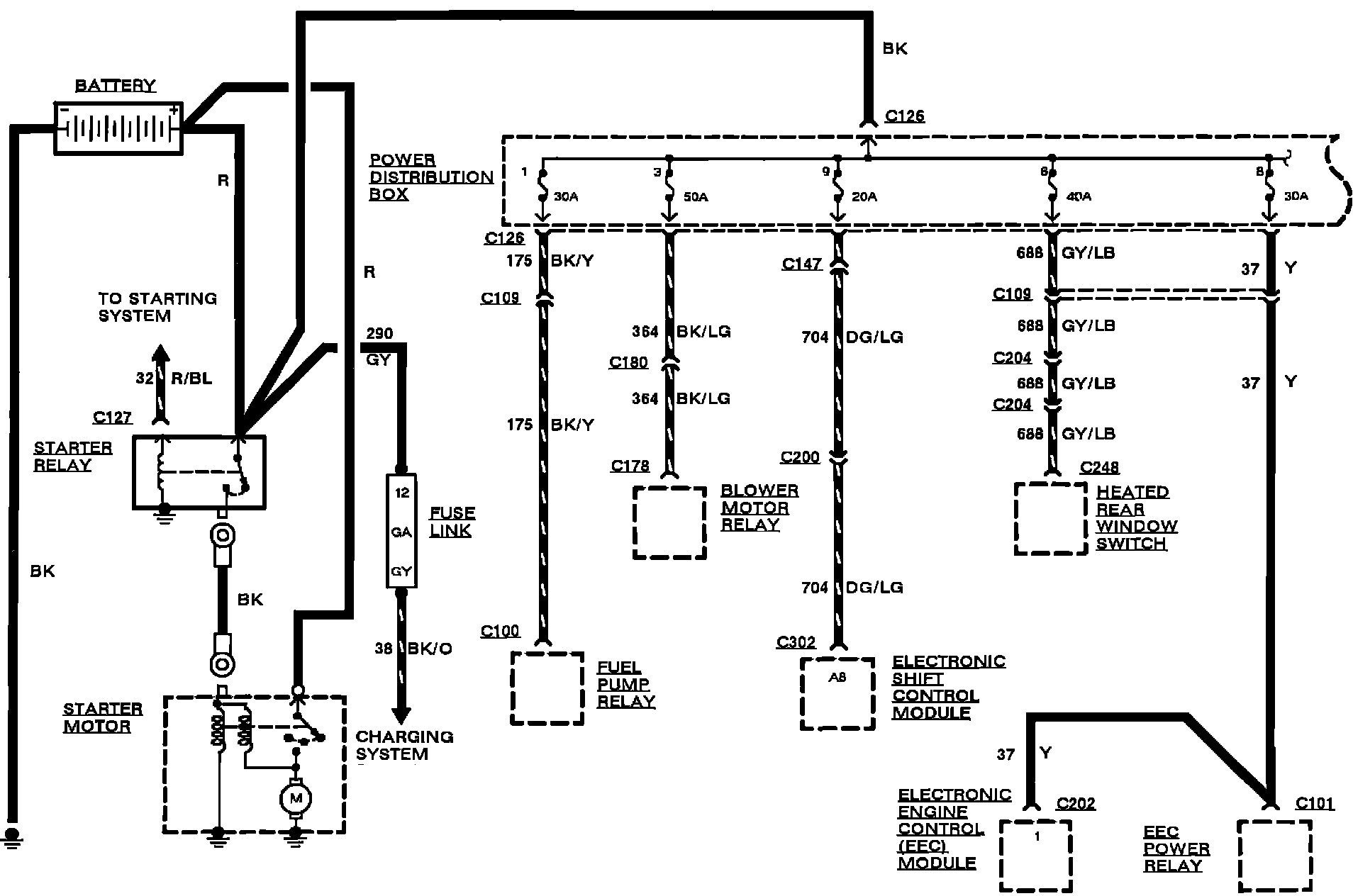

Power Distribution:

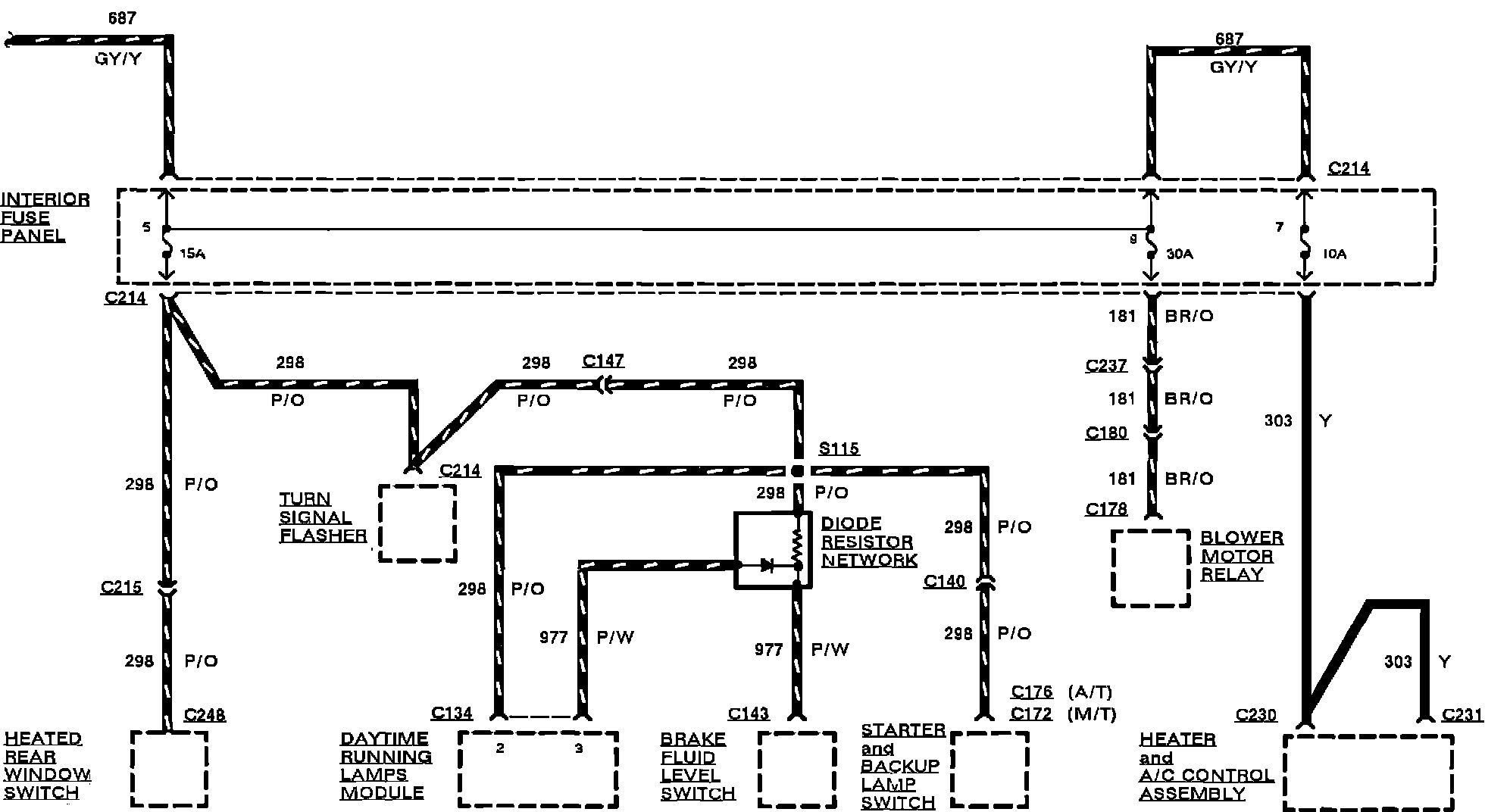

Power Distribution:
