Control Module: Locations

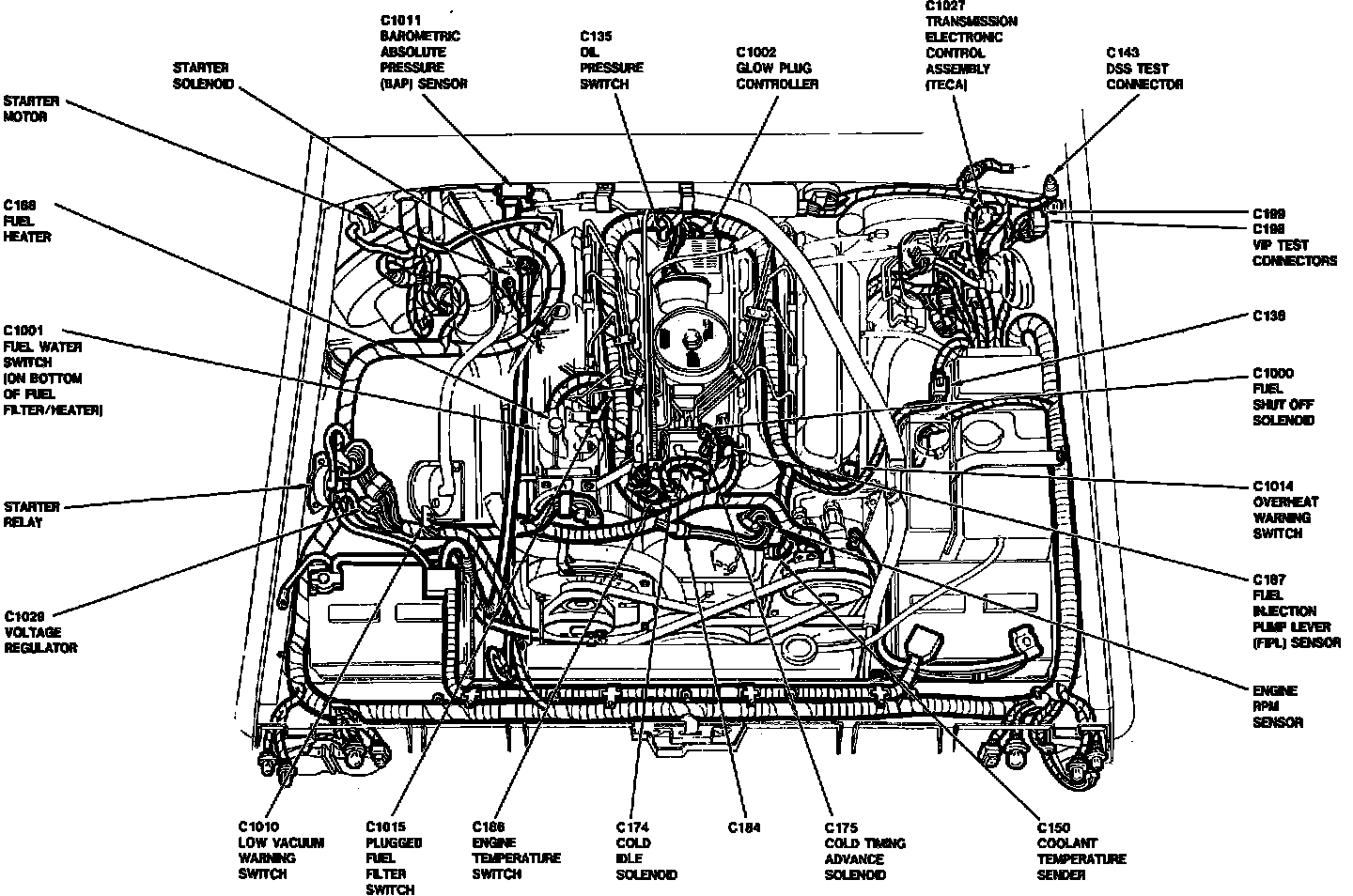

Engine Compartment Components.:




LH Side Of Firewall, Below Brake Fluid Reservoir

Applicable to: 1992 7.3L/V8-444
