Component Locations
COMPONENT LOCATIONS
Component
Location
Fuse Panel
Left Side Of Instrument Panel, Left Of Steering Column. See .
Ground G201
Far Left Side Of Instrument Panel, Above Kick Panel. See .

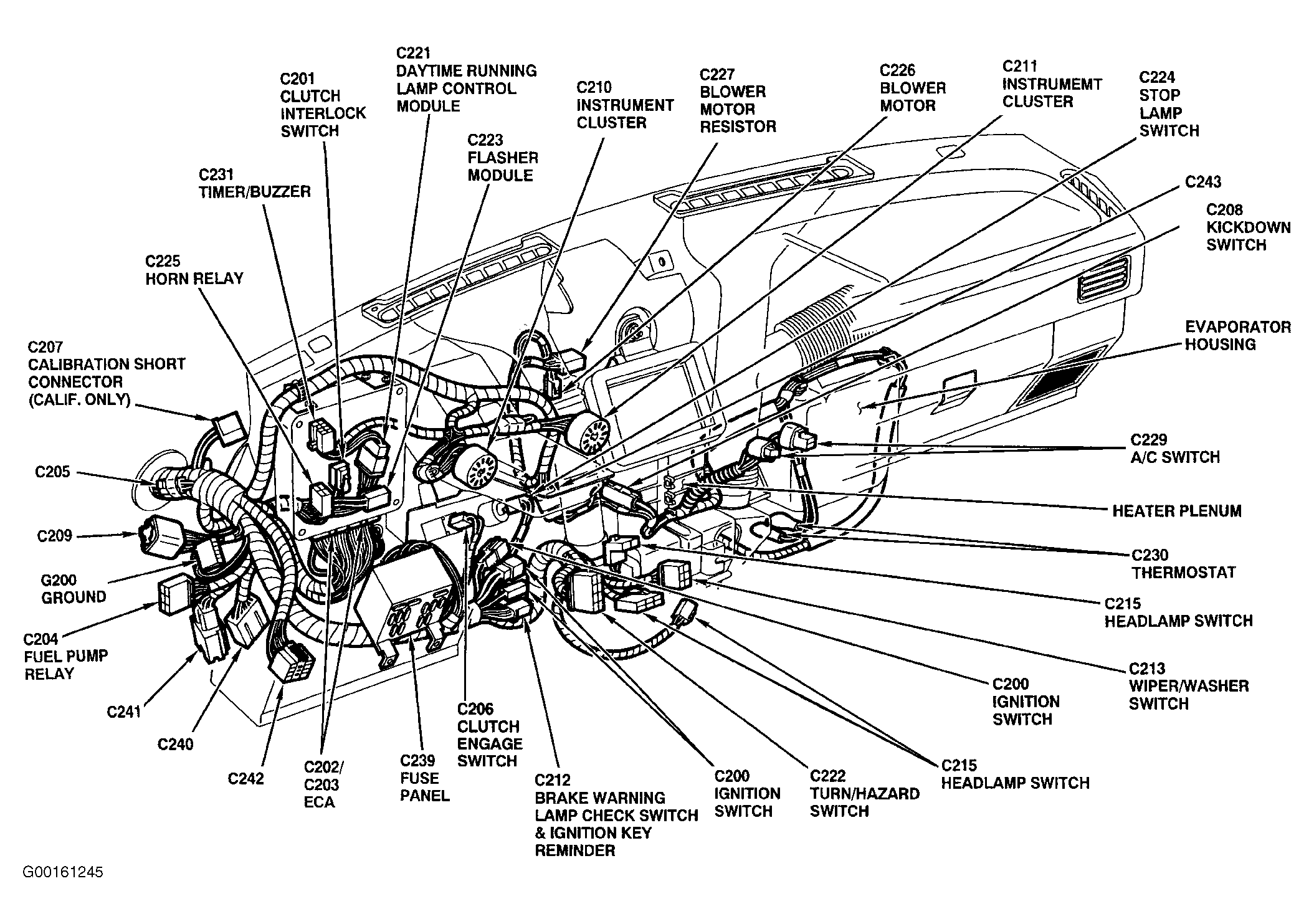

Fig 1: Locating Fuse Panel
Courtesy of FORD MOTOR CO.

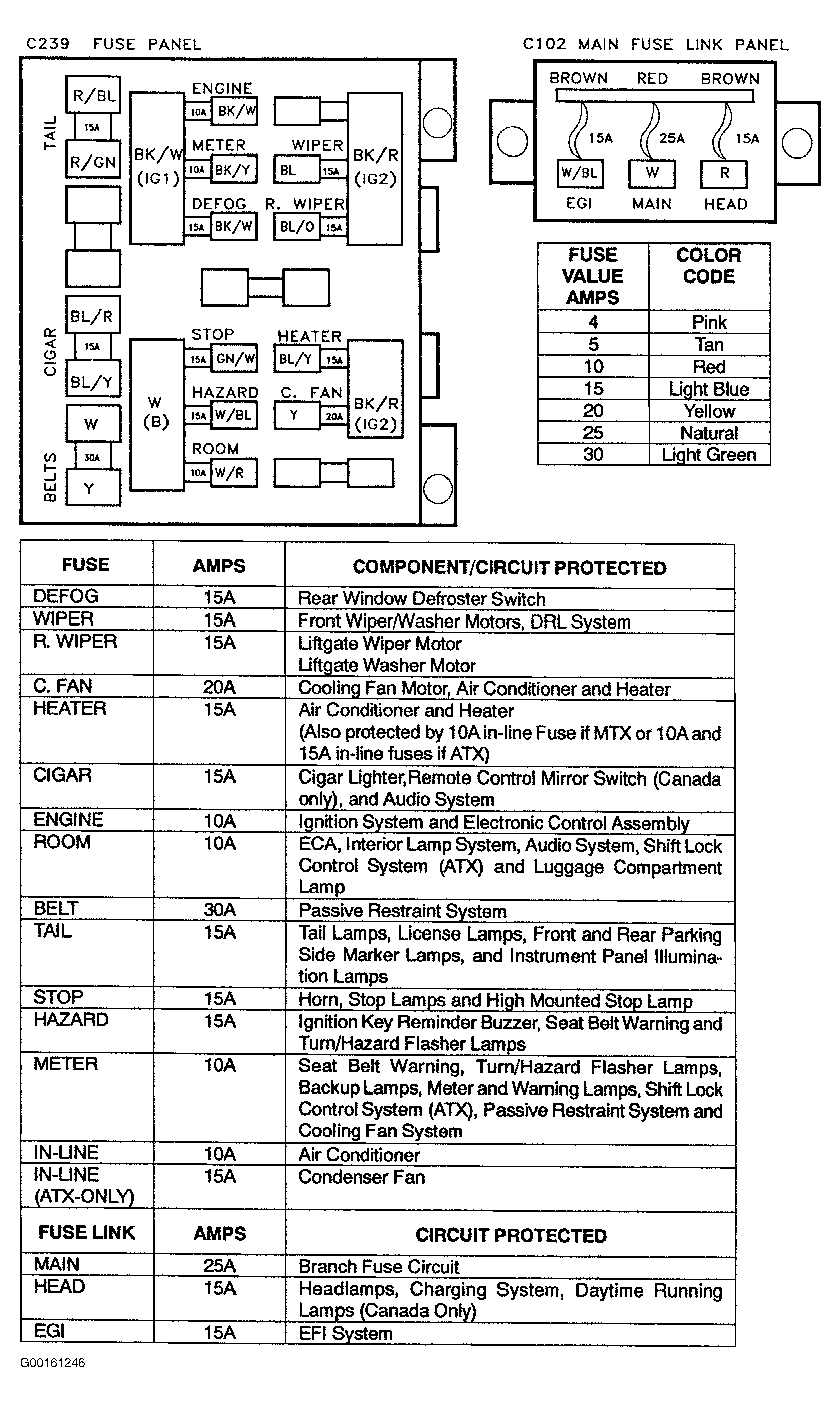

Fig 2: Identifying Fuse Panel Components
Courtesy of FORD MOTOR CO.

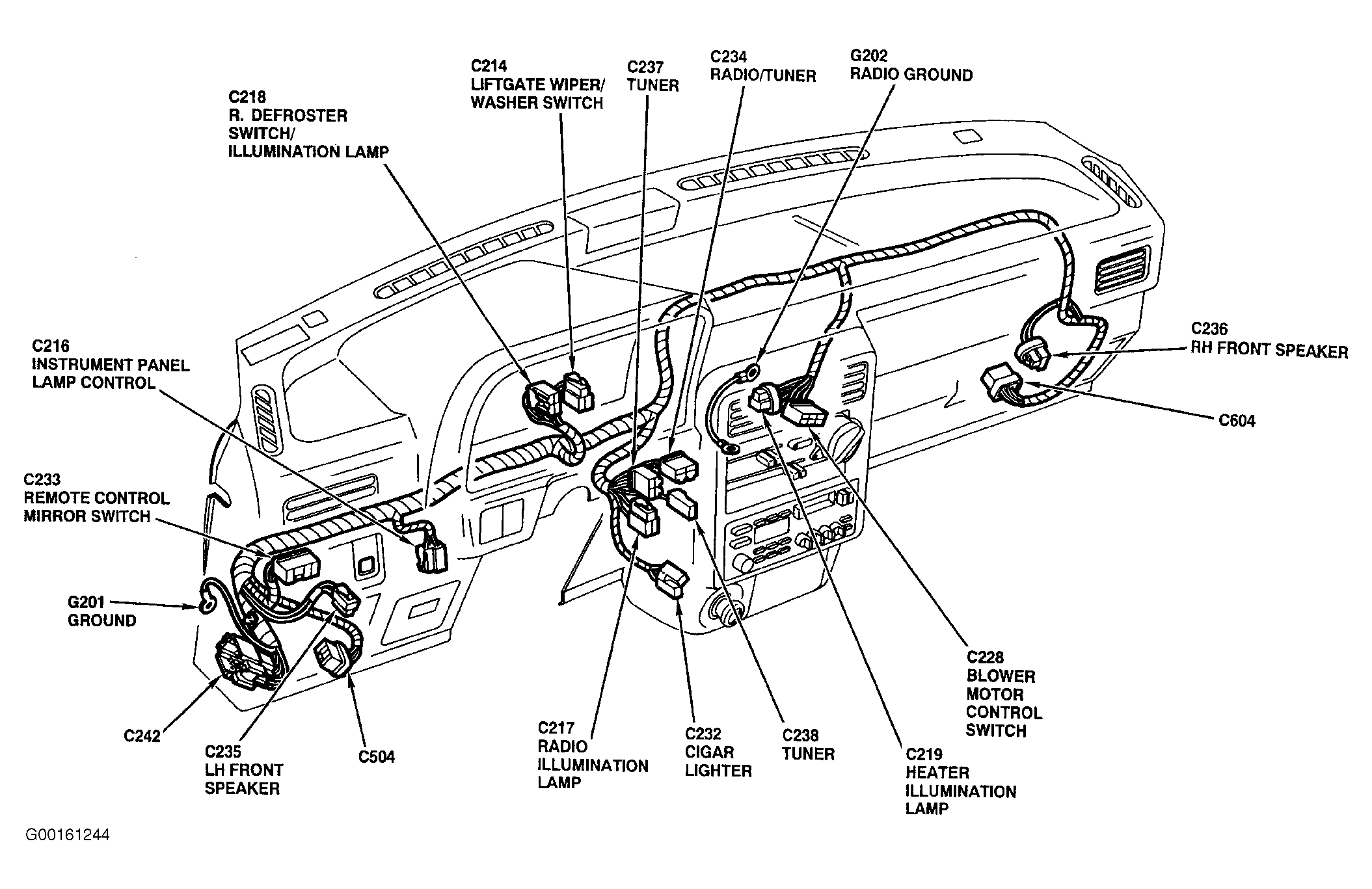

Fig 3: Locating Ground G201
Courtesy of FORD MOTOR CO.
