Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL

1. Disconnect negative battery cable.

2. Drain radiator.

3. Disconnect sensor electrical connector.

4. Using a suitable wrench, remove from intake manifold.

INSTALLATION

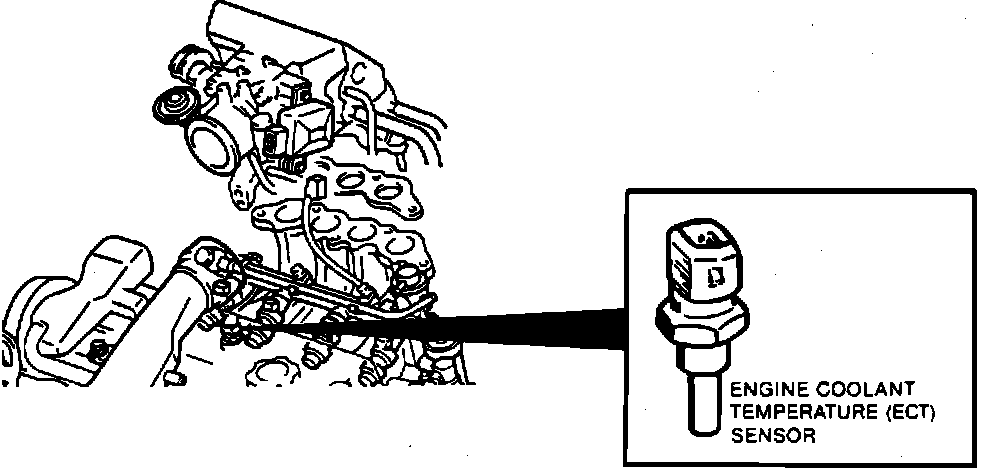

Engine Coolant Temperature (ECT) Sensor:

1. Install into manifold.

2. Plug in sensor electrical connector.

3. Refill cooling system.

4. Connect negative battery cable.
